Gigabyte AORUS NVIDIA GeForce GTX 1060 6GB PLUS
GeForce GTX 1060 Graphics Card from Aorus & Gigabyte

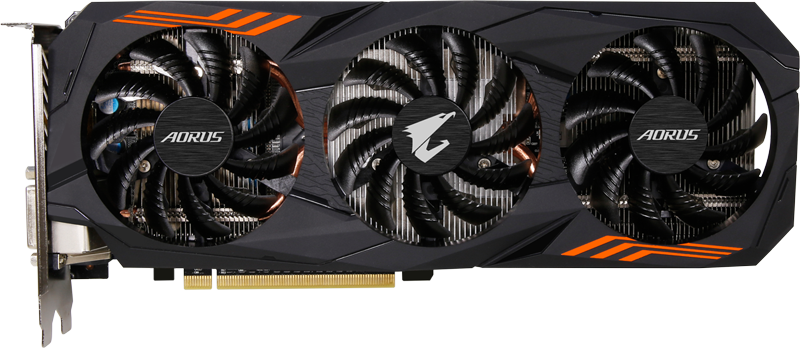

Aorus GTX 1060 Gaming Card
AORUS graphics cards are crafted for perfection in pursuit of the ultimate graphics experience for gaming enthusiasts. Based on the revolutionary Radeon GPUs, the AORUS Radeon graphics card brings you incredible gaming experience. Using technologies such as the Windforce 2X Cooling System make the Aorus GTX 1060 is a force to be reckoned with. It boasts 6GB of GDDR5 for unmatched gaming graphics.
Core Clock (OC Mode)
Boost Clock (OC Mode)

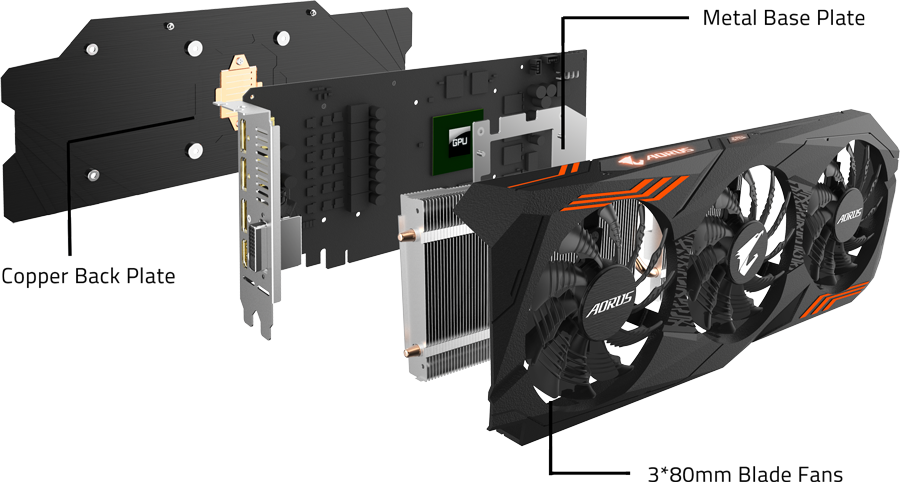

Aorus All-Round Cooling Solution
GTX 1060 Windforce Cooling System
AORUS provides the all-around cooling solution for all key components of the graphics card. We take care not only GPU but also VRAM and MOSFET, to ensure a stable overclock operation and longer life. On the front side, the large copper base plate dissipates the most heat from the GPU and VRAM. On the back side, the copper back plate dissipates the heat from the GPU back side. All other key components are taken care of very well by the WINDFORCE cooling module. AORUS ensures the customer a better cooling solution in many ways.

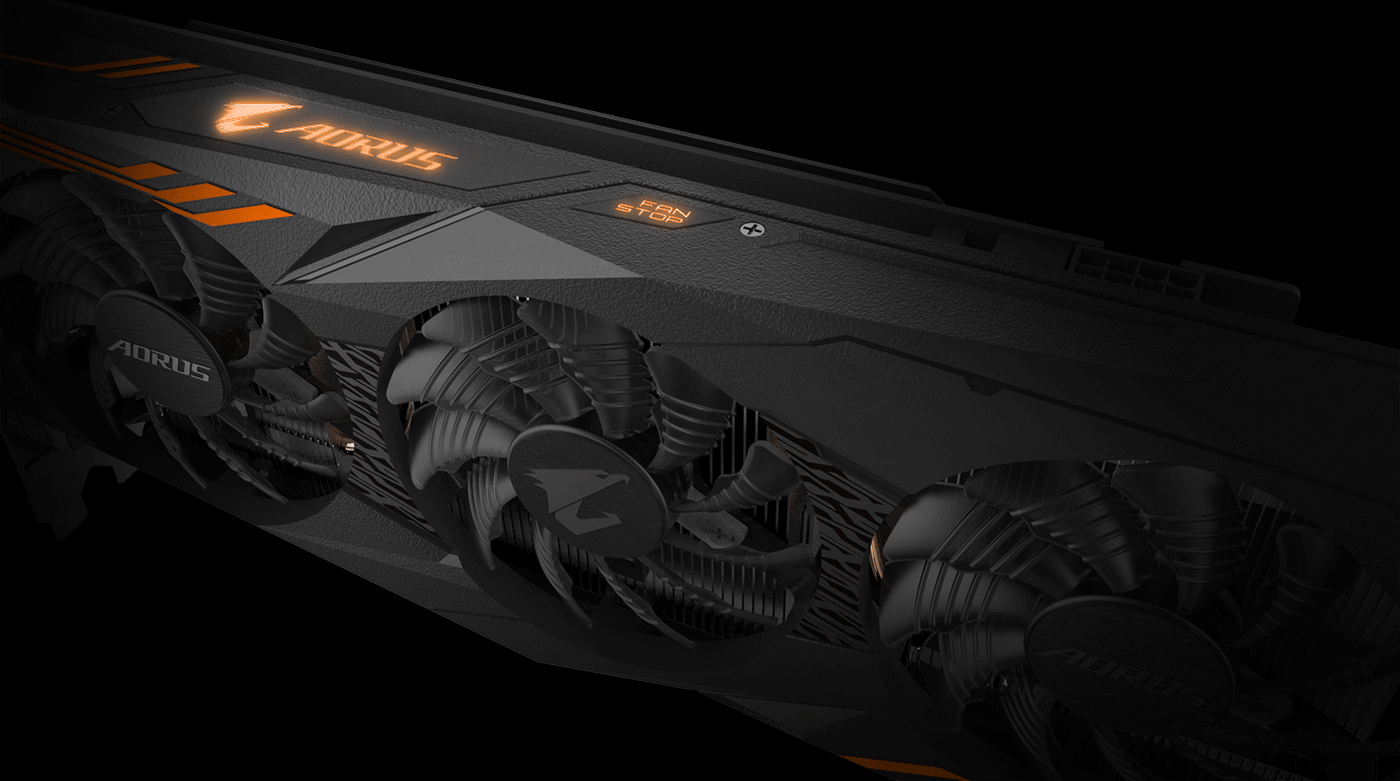

Advanced Aorus Fan Cooling
Windforce 3X cooling system
Equipped with three 80mm unique blade fans enhancing the air flow, the WINDFORCE 3X cooling system delivers an effective heat dissipation capacity.
The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.
Unique Blade Fans
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow by 23% over the traditional fans.
3D Active Fans
The AORUS GTX 1060 are equipped with 3D-Active Fan. The fans will remain off when the GPU is under a set loading or temperature for low power gaming. The LED fan indicator on the top of the graphics card provides an instant display of the fan status.
RGB Lighting Effects
Gigabyte Aorus RGB FUSION
With 16.8M customizable color options and numerous lighting effects, you could now choose the right scheme for your gaming rig through AORUS graphics engine.

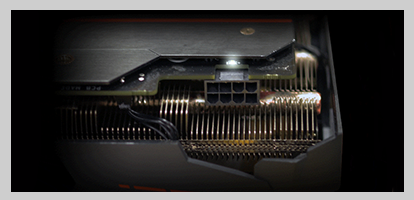

SMART POWER LED
Gigabyte Power LED
Be alert when PCI-E voltage is unstable with the smart power LED indicators. When experiencing any power abnormality, the indicator will alert gamers via a flashing light, a stable light symbolizes a dissconnected or faulty cable and no light means the voltage to your power supply is stable.
Premium Build in Every Aspect

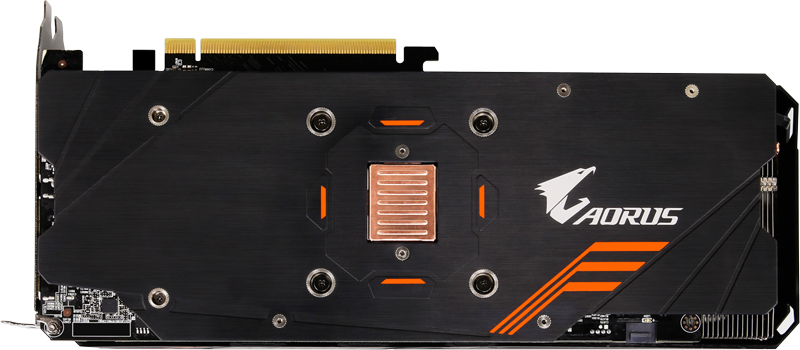

Stylish Metal Back Plate
A Glorious black metal back plate on the Xtreme Gaming 1060 provides solid protection, strengthens the structure and inspires the passion for gaming. It also features a large Aorus logo.
Overclock Your Aorus GTX 1060
Aorus Graphics Engine
With the Aorus Graphics Engine you can monitor and fine tune in real-time your Clock Speeds, Voltage, fan performance and power target. You can tune them to your own gaming preference using the intuitive user interface.

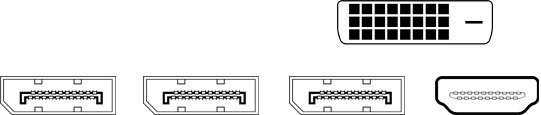

GTX 1060 Connections
HDMI 2.0b / 3x DisplayPort 1.4 / Dual-Link DVI
|Chipset||GeForce GTX 1060|
|Manufacturing process||16 nm|
|Core Clock||1607 (1632 in OC) MHz|
|Boost Clock||1835 (1860 in OC) MHz|
|Memory Clock||9026 MHz|
|Memory Bus||192 Bit|
|Cooling Solution||Dual Fan (2)|
|Cooler Design||WINDFORCE 2X|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320 @ 60Hz|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|NVIDIA SLI Support||Not Supported|
|GeForce GTX VR Ready||Yes|
|Microsoft DirectX Support||12 API with Feature Level 12.1|
|Low Profile Compatible||No|
|Low Profile Support||N/A|
|Graphics Card TDP/Power|
|Graphics Card Power Connectors||1 x 8-pin PCIe|
|Minimum Recommended PSU||400 W|
|Maximum GPU Temperature|
|Dimensions||111 x 38 x 280 mm|
