Scan code: LN113413 Manufacturer code: B550 Aorus Elite V2

Gigabyte AMD Ryzen B550 AORUS ELITE V2 AM4 PCIe 4.0 ATX Motherboard

Gigabyte AORUS ELITE V2, AMD B550, AM4, DDR4, PCIe 4.0, 2x M.2, 2.5 GbE, USB 3.2 Gen 2, ATX

Thumbnail 1 : Gigabyte AMD Ryzen B550 AORUS ELITE V2 AM4 PCIe 4.0 ATX Motherboard Thumbnail 2 : Gigabyte AMD Ryzen B550 AORUS ELITE V2 AM4 PCIe 4.0 ATX Motherboard Thumbnail 3 : Gigabyte AMD Ryzen B550 AORUS ELITE V2 AM4 PCIe 4.0 ATX Motherboard Thumbnail 4 : Gigabyte AMD Ryzen B550 AORUS ELITE V2 AM4 PCIe 4.0 ATX Motherboard
Scan code: LN113413 Manufacturer code: B550 Aorus Elite V2
£134.99
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
From £12.12 / month (APR 14.9%)
Monthly Payment: £12.12
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £134.99
Total inc. interest: £145.41
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 2nd Aug to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview

In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem.

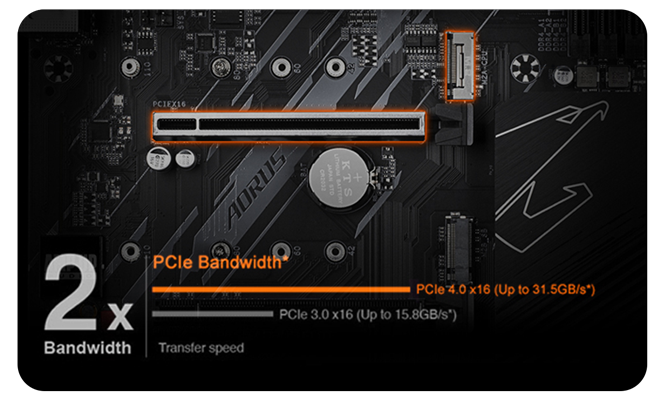

PCIe 4.0 for Everyone

The AMD B550 chipset makes PCIe 4.0 possible for anyone who wants higher performance, bandwidth and speed. Ready for 3rd Gen AMD Ryzen processors and beyond.


Ultimate Power Design

To fully support the latest 3rd Gen AMD Ryzen processors, B550 AORUS motherboards equip with the ultimate power solution which is power balanced, digital and multiple phases. After countless experiments and testing, GIGABYTE presents the unbeatable B550 AORUS motherboards for enthusiast. No Compromise and never stop to achieve higher.

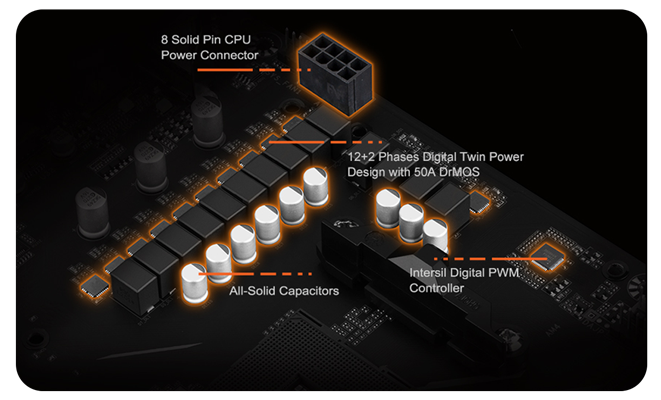

12*+2 Phases Digital Twin Power Design

• Digital PWM Controller delivers appropriate voltage to the CPU.
• With 12+2 Phases 50A DrMOS, each power phase connects to the CPU and provides more balanced and efficient power delivery. With capability to handle up to 700 Amps current in a total.
• All-solid capacitors to improve Transient response and minimise oscillation.
• 24pin+8pin Solid Pin CPU Power Connectors.

B550 AORUS ELITE V2 motherboard uses a 12+2 phases Digital Twin Power Design which includes PWM controller, DrMOS and Ferrite core choke as high quality selected components. These 100% digital controller offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen processors.


2X Copper PCB

GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.


Unparalleled Performance

GIGABYTE realise that customer won't stop chasing a better computing performance. We take care of it and implement on products. Protective and optimised memory trace enhance the performance. Faster read and write are needed to save time and improve efficiency. We offer plenty of M.2 storage with thermal guards to ensure un-throttled read and write. In advance, adopting PCIe 4.0 ready components get the B550 motherboards easier to upgrade.

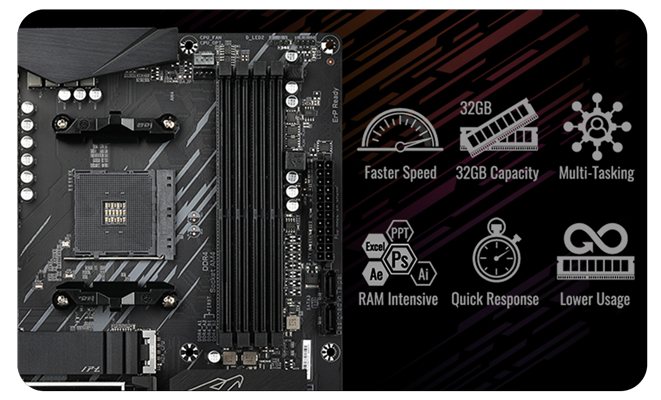

Memory Layout - Daisy Chain Design

With the optimised daisy-chain routing, the B550 motherboard provides a proven speed of DDR4-4000MHz and beyond with high density memory modules. Optimised daisy-chained routing eliminates the stub effect, pushes the one DIMM per channel in dual channel interleaving mode to hit higher memory frequencies, providing professional gamers a denser and faster system memory experience.


Single 32GB Support

With populated 2 DIMMs per channel on GIGABYTE B550 motherboards, the maximum memory capacity support is 128GB. For users who always run out of memory capacity, they are able to enjoy more bandwidth now for memory-intensive application such as rendering and video editing.

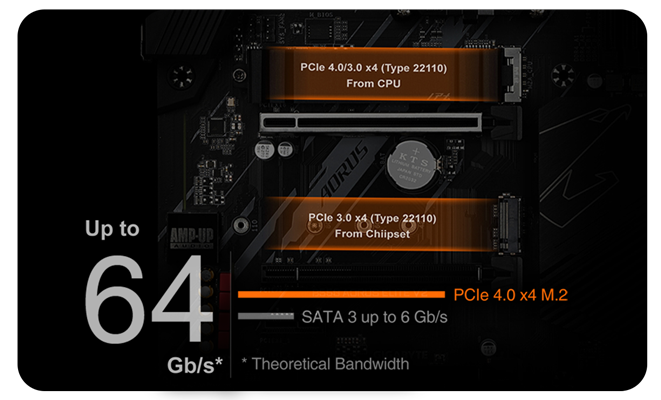

Performance with PCIe 4.0 x4 + PCIe 3.0 x4 NVMe PCIe SSDs

B550 AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 6560 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.


Advanced Thermal Solution

Un-throttled performance is guaranteed by the advanced thermal solution which including Enlarged Heatsinks, High Quality Thermal Conductivity Pads and Thermal Guards. B550 motherboards are cool on MOSFETs and M.2 SSDs even on full loading. It provides lower temperatures for enthusiasts, overclockers and professional gamers.


Enlarged Surface Heatsinks

Enlarged surface heatsinks which increasing the surface area to improve thermal efficiency with better airflow and heat exchange.


5 W/mK Thermal Conductivity Pad

By using 5 W/mK high thermal conductivity pads, it can transfer 2.7x more heat as compared to traditional thermal pads in same time.


M.2 Thermal Guard

Built-in M.2 thermal guard heatsink helps the high-speed, large capacity of PCIe 4.0/3.0 SSDs to prevent overheat throttling and performance bottlenecks.


Gigabyte Ultra-Efficient M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.


Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.


Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers, giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.


Fan Stop

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature – all of it can be customised to your liking.


New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage preferences. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.


Next Generation Connectivity

A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. B550 AORUS motherboards provide all next generation network, storage, and WIFI connectivity to keep you up to speed.

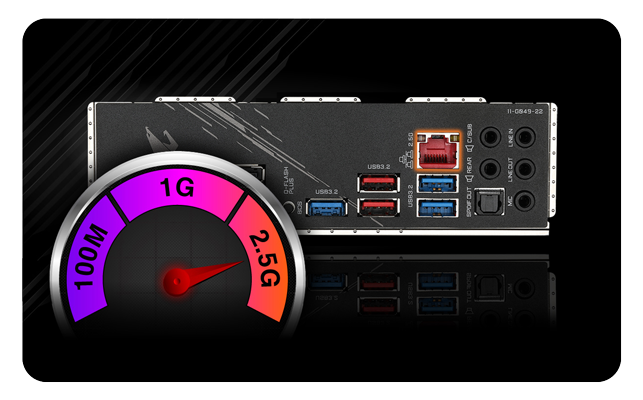

2X Faster than Ever

Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least two times faster transfer speeds as compared to general 1GbE networking. It’s perfectly suit for gamers and streamer with ultimate and smooth online experience. It also backward compatible with Multi-Gig (10/100/1000/2500Mbps)of RJ-45 ethernet.

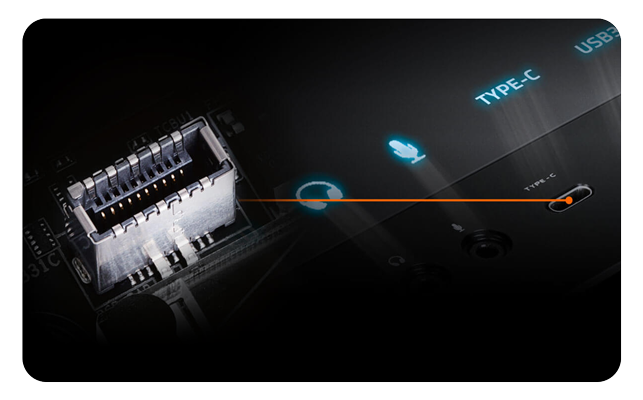

USB Type-C Front Panel Connector

Equipped with next generation connectivity, AORUS Gaming Motherboards already support the chassis of the future. The onboard USB Type-C™ header for USB 3.2 Gen1 makes access convenient when connecting a USB 3.2 Gen1 device or charging your mobile device.

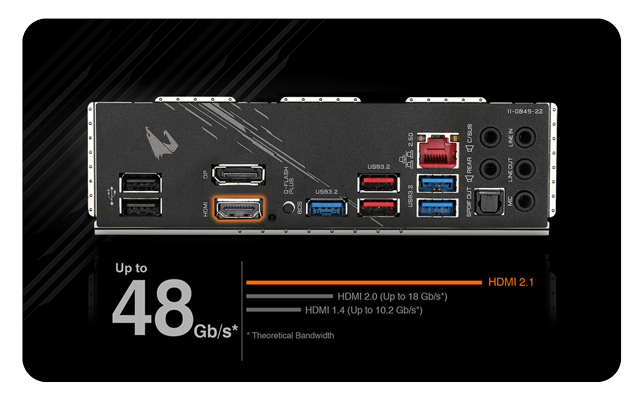

HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support

HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.


HI-FI Audio System

For enthusiasts, sound quality is just as essential to the gaming experience. B550 motherboards are equipped with high quality audio components such as Hi-Fi grade WIMA FKP2 capacitors and Nichicon Fine Gold capacitors to provide a superb audio experience. The exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.


High-End WIMA & Audio Capacitors

The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AOURS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.


Audio Noise Guard

AORUS motherboards feature an audio noise guard that essentially separates the board's sensitive analogue audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.


Definitive Aesthetics

B550 motherboards feature RGB FUSION 2.0 and offer the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make your PC unique and stylish.


Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.


RGB Fusion Software

With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customising the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalise your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.


Gigabyte RGB Fusion APP

Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colours and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.


Ultra Durable

GIGABYTE is reputable for its product durability and high standard of manufactured process. Needless to say, we use the best, high quality components on B550 motherboards and reinforce each part of components to be solid and durable.


Industry Leading Ultra Durable PCIe Armour

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.


Solid Pin Power Connectors

B550 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.


Q-Flash Plus

Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!


Gigabyte BIOS & App Center

Good software goes hand in hand with perfect hardware. B550 motherboards bundled several useful and intuitive software to help users to control every aspect of motherboard.

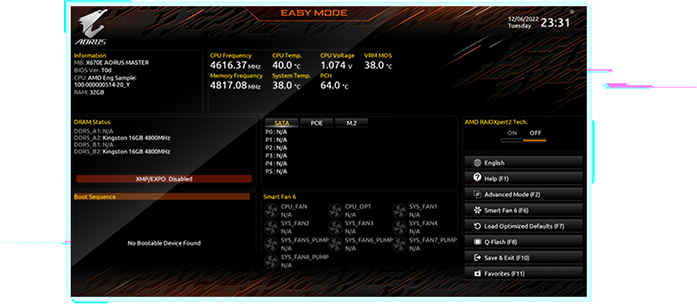

New User Interface

All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.


My Favourites

Add constantly used items into the favourite menu for quick access.


Storage Information

Show all kinds of storage information including SATA, PCIE and M.2 interface.


Changelog

List all changes before saving and exiting bios. Quickly review overall settings modification.


Intuitive Load Line Curve

Clearly show each load line calibration setting in an intuitive curve graph.


App Center

GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.


EasyTune

GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.


@BIOS

The GIGABYTE @BIOS app allows you to update your system's BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.


System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behaviour; these are the possibilities of the System Information Viewer.

Features

• Supports AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors.
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs .
• 12+2 Phases Digital Twin Power Design with 50A DrMOS.
• Advanced Thermal Design with Enlarged Surface Heat sinks.
• Ultra Durable PCIe 4.0 x16 Slot.
• Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with One Thermal Guard.
• AMP-UP Audio with ALC1200 and WIMA Capacitors.
• Blazing Fast 2.5GbE LAN with Bandwidth Management.
• Front USB 3.2 Gen1 Type-C and DisplayPort & HDMI for Multiple Display.
• RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips.
• Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.
• Pre-installed IO Shield for Easy and Quick Installation.

Specifications
Core Specifications
Edition B550 Aorus Elite V2
Form Factor ATX
CPU Socket AM4
Chipset AMD B550
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2667
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4733(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x1 Bandwidth)
  • 1 x PCIe 3.0 x16 (x2 Bandwidth)
  • 1 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via SATA3 / M.2
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x CPU Cooler LED/RGB LED Strip Extension Header
  • 1 x CPU Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 2 x LED strip connector
  • 2 x RGB (RGBW) LED Strip Header
  • 4 x SATA III - 6Gb/s
  • 3 x System Fan header
  • 1 x TPM (Trusted Platform Module)
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB Type-C
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x Realtek RTL8125 (2.5G LAN)

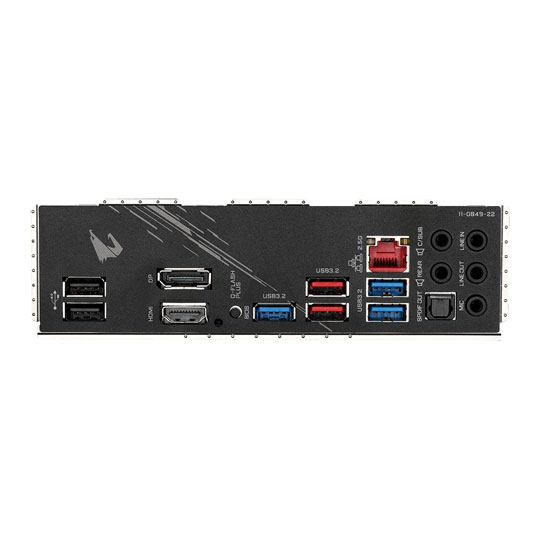

Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Q-Flash Plus Button
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 3 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled Yes
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN113413
Model Number B550 Aorus Elite V2
GTIN 4719331809898
