Scan code: LN107184 Manufacturer code: Z490 AORUS ELITE

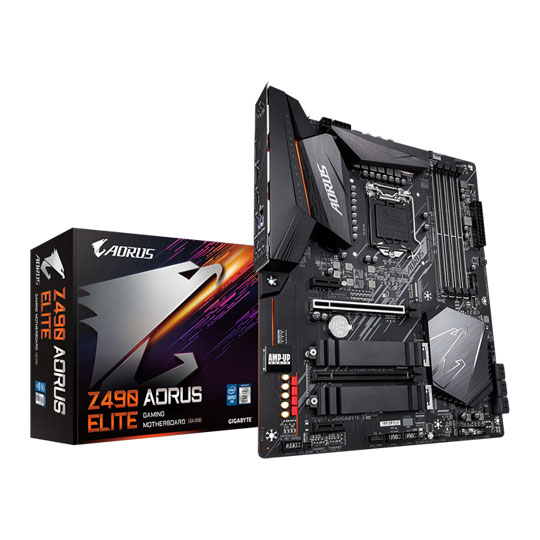

Gigabyte Intel Z490 AORUS ELITE ATX Motherboard

Gigabyte AORUS ELITE, Intel Z490, S 1200, DDR4, SATA3, 2x M.2, CrossFire, 2.5GbE, USB 3.2 Gen2, ATX

Thumbnail 1 : Gigabyte Intel Z490 AORUS ELITE ATX Motherboard Thumbnail 2 : Gigabyte Intel Z490 AORUS ELITE ATX Motherboard Thumbnail 3 : Gigabyte Intel Z490 AORUS ELITE ATX Motherboard Thumbnail 4 : Gigabyte Intel Z490 AORUS ELITE ATX Motherboard
Scan code: LN107184 Manufacturer code: Z490 AORUS ELITE
£217.99Item due on 30 July 2020
Due 30th Jul
From £10.47 / month (APR 14.9%)
Monthly Payment: £37.83
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £217.99
Total inc. interest: £226.97
Monthly Payment: £19.57
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £217.99
Total inc. interest: £234.85
Monthly Payment: £13.50
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £217.99
Total inc. interest: £242.86
Monthly Payment: £10.47
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £217.99
Total inc. interest: £251.11
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

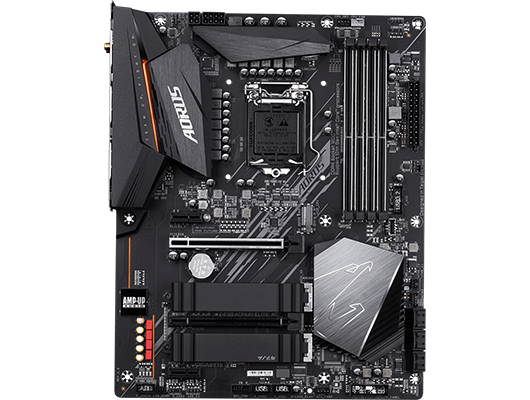

AORUS ELITE Z490 ATX Motherboard from Gigabyte

aorus elite z490

UNLEASH HIGH-END GAMING WITH 10TH GENERATION POWER Take on any task with ease with the AORUS ELITE Z490 motherboard. This all-new high-end component offers the power and connectivity your PC deserves so you can upgrade your system with Intel's latest 10th Generation CPUs (with an LGA 1200 socket). It provides support for 10th Gen Intel® Core™ i9 processors, Intel® Core™ i7 processors, Intel® Core™ i5 processors, Intel® Core™ i3 processors, Intel® Pentium® processors and Intel® Celeron® processors. Any PC build is possible with this impressive motherboard and the array of features it has to offer. Utilise the power of DDR4 RAM and Intel Optane Memory, along with expert cooling and a range of I/O ports that are ready for any task you need to complete. Add style to your rig with the multi-zone RGB lighting that can be customized with RGB FUSION 2.0, and has its own RGB app so you can customise your lighting from the convenience of your phone.

Intel® Z490Chipset

10th Generation Intel®Compatible CPUs

LGA 1200CPU Socket

ATXForm Factor

Efficient Cooling for High-End Systems

aio monoblock

AORUS M.2 THERMAL GUARD IIWith durability in mind, GIGABYTE provides a new thermal solution for large capacity M.2 SSD devices with double side flash. The M.2 Thermal Guard II uses a double-sided heatsink design and prevents throttling and bottlenecks on high speed M.2 SSDs by dissipating heat before it gets too high.

headers

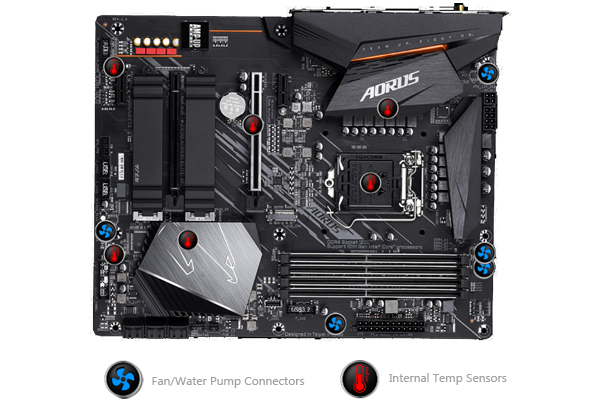

5X Hybrid FAN HEADERWith Smart Fan 5 you can ensure that your gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Harness the Power your PC Deserves

4K Recording

A SUPERIOR DESIGN FOR POWERTo unleash the full potential of new Intel 10th Gen CPUs, the motherboard requires the finest CPU power design. With the best quality components and GIGABYTE R&D design capability, Z490 AORUS ELITE is a true beast among motherboards.

Stable and Efficient Power for your Rig

4K Recording

12 PHASE DIGITAL POWER DESIGNThis innovative motherboard uses a pure digital CPU power design which includes a digital PWM controller with Smart Power Stages, and is capable of handling 660 Amps current in total. This 100% digital controller, new Tantalum Polymer Capacitors array, and additional 8+4 Solid-pin CPU Power Connectors provide incredible precision and stability in delivering power to the motherboard's most power-hungry components, allowing you to get the ultimate overclocking performance from the new 10-core 10th Gen Intel® Core™ processors.

Intricate Design for Expert Performance

INTELLIGENT POWER ARCHITECTURE

4K Recording

Handle Demanding Tasks with Ease

2X COPPER PCBGIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.

4K Recording

Excel your Memory for Strong Performance

Support for DDR4 XMP Up to 5000MHz and BeyondAORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
* XMP Profile support may vary depending on memory module. Please see the complete validated memory support list. Product features may vary by model.

pcie4

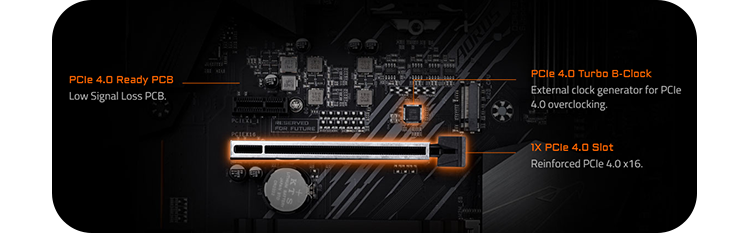

PCIE 4.0 HARDWARE DESIGN

pcie3

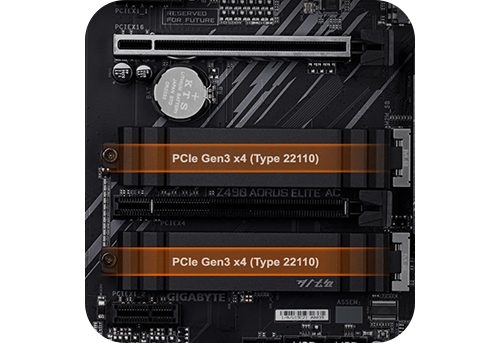

Dual PCIe Gen3 x4 M.2Z490 AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance.

Versatile Connectivity Options

INTEL® 2.5G LAN | Intel Dual Band WiFi | USB Type-CA high-end product needs to be future-proofed so your system stays up-to-date with the latest technology. Z490 AORUS ELITE provides all next generation network, storage, and WIFI connectivity to keep you up to speed.

4K Recording

Illuminate your PC with Beautiful Colour

rgb

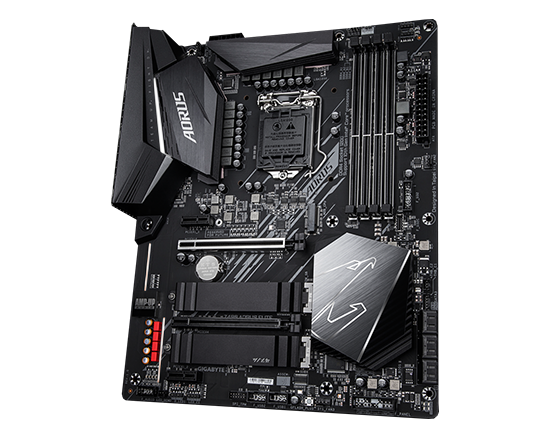

RGB FUSION 2.0Now offering more LED customizations than ever before, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, you have complete control over the LEDs which surround the motherboard.

rgb software

RGB FUSION SOFTWAREWith an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

rgb app

RGB FUSION APPDon't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.

Immerse yourself into any Environment

hi res

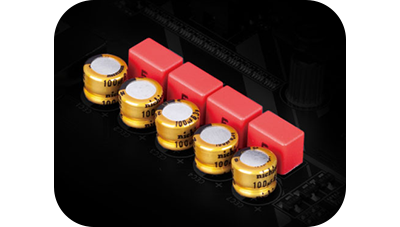

High-End WIMA & Audio CapacitorsAORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end Chemicon audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound, bass and clearer high frequencies, the WIMA FKP2 capacitors are used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AORUS AMP-UP Audio technology makes for an ideal onboard sound solution.

ess

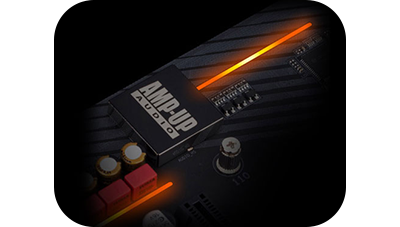

Audio Noise GuardAORUS motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.

Durability for Years to Come

Industry Leading Ultra Durable™ PCIe ArmorThe innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

anti bending

Ultra Durable™ Memory ArmorAORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference.

pins

Solid Pin Power ConnectorsZ490 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages • Larger contact area for electricity.
• More metal quantity to sustain higher power and generated heat.
• Ultra durable and longer lifespan.

bios flash

Q-Flash PlusWith GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

down

STEP 1Plug the 24pin & 8pin power supply cable into the motherboard.

up

STEP 2Download and unzip the motherboard's compressed BIOS file and rename to "gigabyte.bin", save to a USB flash-drive, and plug it into the Q-Flash USB port.

up

STEP 3Press the Q-Flash button, and the motherboard will start updating the BIOS automatically.

Take Control of your Motherboard

GIGABYTE BIOS & APP CENTERGood software goes hand in hand with perfect hardware. Z490 AORUS ELITE bundled several useful and intuitive softwares to help users to control every feature of the motherboard.

bios

New User InterfaceAll new EASY MODE shows important hardware information all on one page.

My
Favorites
Add constantly used items into the favorite menu for quick access.

Storage InformationShow all kinds of storage information including SATA, PCIE and M.2 interface.

ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line CurveClearly show each loadline calibration setting in an intuitive curve graph.

app

APP CENTERGIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.

easytune

EasyTune™GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

fan 5

System Information ViewerGIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Specifications
Core Specifications
Edition AORUS ELITE
Form Factor ATX
CPU Socket 1200
Chipset Intel Z490
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI 1.4
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80/110, PCIe Gen3/SATA
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3
RAID Support via SATA3 / M.2
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Q-Flash Plus Button
  • 2 x RGB Header
  • 6 x SATA III - 6Gb/s
  • 3 x System Fan header
  • 2 x Thunderbolt AIC Connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB Type-C
  • 1 x Water Cooling Fan Header (CPU_OPT)
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x Realtek (2.5GbE LAN)

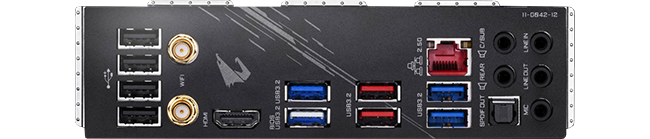

Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 4 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN107184
Model Number Z490 AORUS ELITE
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
36 months
