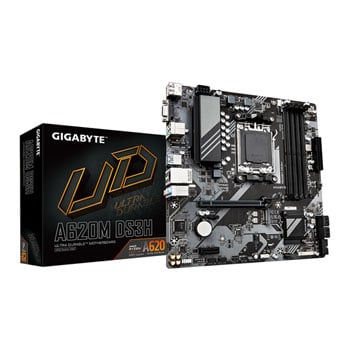

Gigabyte A620M DS3H AM5 DDR5 PCIe 4.0 Micro-ATX Motherboard
Gigabyte A620M DS3H, AMD A620, AM5, DDR5, PCIe 4.0, 1x M.2, GbE, USB 3.2 Gen1, AMD EXPO, mATX
Email me when the availability or price changes
Finance this product
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Suggested Alternatives
Gigabyte A620M H, AMD A620, AM5, DDR5, PCIe 4.0, 1x M.2, GbE, USB 3.2 Gen1, AMD EXPO, mATXGigabyte A620M H AM5 DDR5 PCIe 4.0 Micro-ATX Motherboard
LN168521
No customer review£64.99Due tomorrow
Gigabyte A620M DS3H DDR5 PCIe 4.0 AMD MicroATX Motherboard

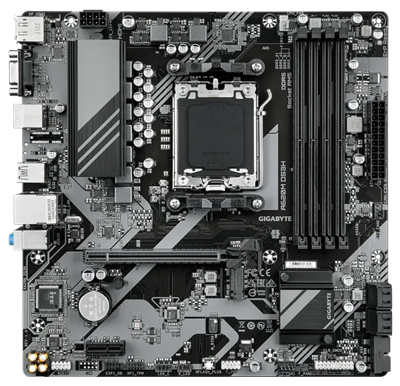

A Bulletproof Foundation The Gigabyte A620M DS3H is a jam-packed value MicroATX motherboard, built to harness the power of AMD Ryzen 7000 & 8000G processors in a tighter form. With the AMD A620 chipset at the heart of operations, this versatile motherboard is ideal for budget-conscious builds that require rock-solid performance and wide compatibility with the very best components. This motherboard combines legacy wired connectivity with robust thermal solutions and high speed, ensuring this board delivers the flexibility and reliability you need without t
A620AMD Chipset
AMDCPU Socket
DDR5 RAMMax. 256GB (Dual Channel)
MicroATXForm Factor

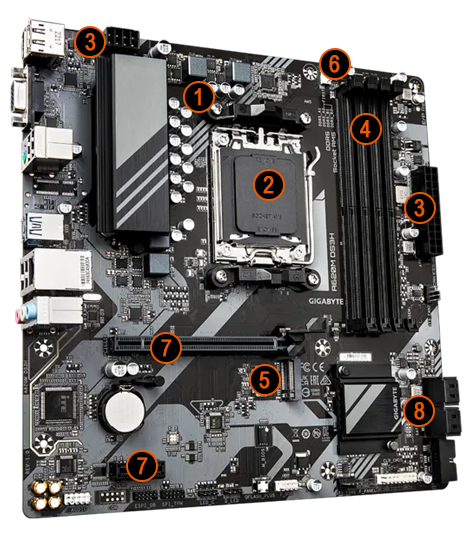

Fully-Featured Motherboard
1 Digital VRM • Mid-Loss PCB
2
AMD AM5 Socket
• Supports 7000 Series Processors
• Supports 8000G Series Processors
3
Power Connectors
• 8-pin CPU Power with Solid pin
• 24-pin ATX Power Connector
4
DDR5 Memory
• Overclocking support up to 7600 MT/s
• 4 x Dual Channel DIMMs
5 M.2 Slots • 1 x PCIe 4.0 M.2 Slots
6
Fan Headers & Cooling
• 1 x CPU Fan Header
• 2 x System Fan Headers
7
Full-length PCIe Slots
• 1 x PCIe 4.0 x16 (Full Length)
• 1 x PCIe 3.0 x1
8
SATA Support
• 4 x SATA III (6Gb/s)
A Boost to Your System

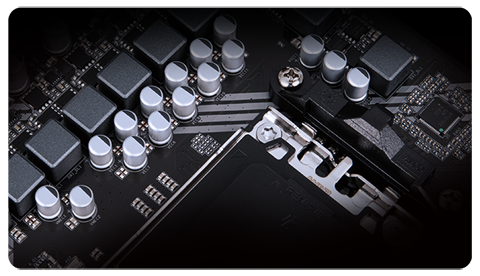

Digital VRM DesignThis board uses a Digital Power Design which delivers consistent power and helps to maintain system stability when overclocking your CPU. With quality components, these fully digital controllers offer incredible precision and reliability for the most important and energy-sensitive component in your PC, allowing enthusiasts to get the absolute maximum performance from their processors.
5VCORE Phases
2VCCGT Phases
2VCCSA Phases
Fast TransfersM.2 Slots are a vital part of the modern PC Setup. Gigabyte provides you with the essentials - a speedy PCIe 4.0 M.2 22-80 slot which is perfect for fast boots and rapid loading times.
1x Gen4 M.2 22/80 Slot
Zenith of DDR5Gigabyte A620 boards deliver DDR5 overclocking speeds while offering excellent compatibility. Their advanced BIOS features make memory tuning straightforward. Additionally, shielded daisy-chain memory routing on an intricately layered PCB built with server-grade materials delivers reliable quality.
7,600 MT/sMemory Transfer Rate
AMD EXPOOverclocking Support

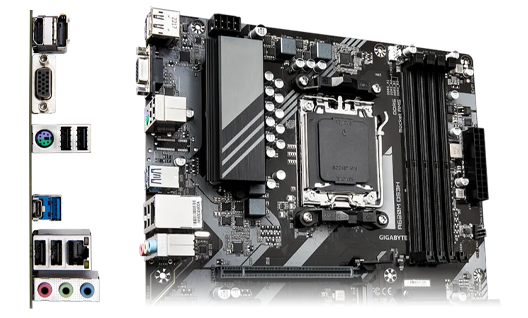

All-Round Connectivity

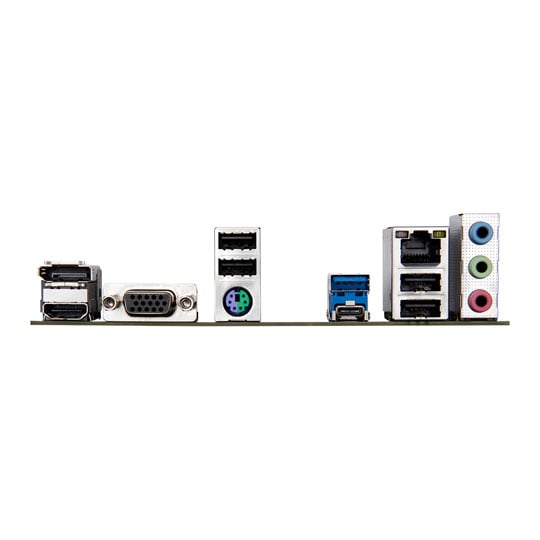

The Gigabyte A620 DS3H has all the connectivity you need, featuring a PS/2 Combo Port for legacy peripherals, and Triple Audio Jacks for clear, reliable sound. DisplayPort 1.4, HDMI 2.1 and VGA outputs provide smooth, high-resolution visuals for modern multi-display setups.
Extensive USB ConnectionsFeaturing a mix of legacy and high-speed connectivity, this setup includes four USB 2.0 ports and two USB 3.2 Gen1 ports - one Type-A and one Type-C for maximum versatility
Gigabit LANSupercharge your gaming with Gigabit LAN, achieving bullet speeds, lowered latency, and excellent performance to enhance your setup and stay ahead. Smooth online gameplay, fast downloads, and uninterrupted streams keep you in control at all times.
Smart Fan 6 BIOS UI
1Expanded Control Points & Graph Scaling
The BIOS fan curve graph now supports up to seven control points, paired with a larger display area for clearer visibility and finer adjustment across temperature ranges.
2Slope / Stair Dual Modes
The curve can be toggled between two behaviours: a linear Slope mode for gradual fan ramping, or a stepped Stair mode that holds fixed speeds within defined temperature intervals.
3Manual Input
Fan speed values can be entered directly, allowing exact tuning beyond graphical adjustments for tighter control over system cooling behaviour.
4EZ Tuning
Up to four reference points can be placed on the graph to define key temperature and fan speed targets, with the BIOS automatically generating a full curve from those inputs.
5Fan Curve Profiles
Completed fan curves can be saved to the BIOS ROM, ensuring profiles persist through firmware updates and remain available for reuse.
