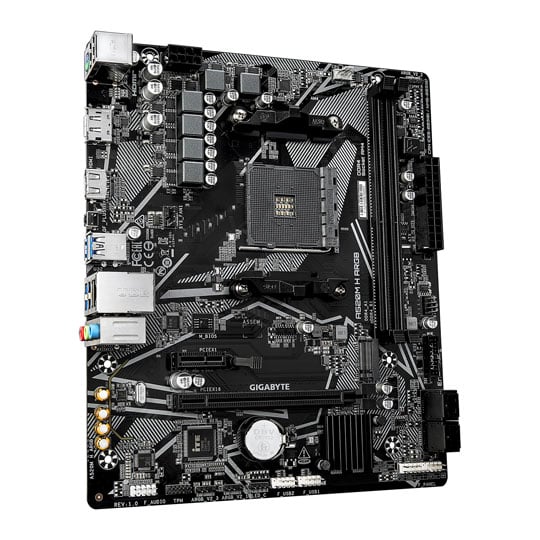

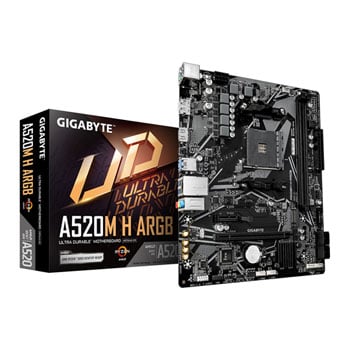

Gigabyte A520M H ARGB AM4 DDR4 PCIe 3.0 Micro-ATX Motherboard
Gigabyte A520M H ARGB AM4 DDR4 PCIe 3.0 Micro-ATX Motherboard
Scan code: LN168514 Manufacturer code: A520M H ARGB
£50.99
Add To Basket
Get it Tomorrow, 15 JulIn stock
  • Thumbnail 1 : Gigabyte A520M H ARGB AM4 DDR4 PCIe 3.0 Micro-ATX Motherboard
  • Thumbnail 2 : Gigabyte A520M H ARGB AM4 DDR4 PCIe 3.0 Micro-ATX Motherboard
  • Thumbnail 3 : Gigabyte A520M H ARGB AM4 DDR4 PCIe 3.0 Micro-ATX Motherboard
  • Thumbnail 4 : Gigabyte A520M H ARGB AM4 DDR4 PCIe 3.0 Micro-ATX Motherboard

Gigabyte A520M H ARGB AM4 DDR4 PCIe 3.0 Micro-ATX Motherboard

Gigabyte A520M H ARGB, AMD A520, AM4, DDR4, SATA3, M.2, Realtek GbE, USB 3.2 Gen1, mATX
MORE INFO
MORE INFO

Scan code: LN168514 Manufacturer code: A520M H ARGB
£50.99
£5.48 Next day delivery
Order now and get it tomorrow, Wed 15th Jul
Add To Basket
Get it Tomorrow, 15 JulIn stock
Pay in 3 interest-free payments of £17.00

Email me when the availability or price changes

  • By DPD On 15th Jul Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.
Product Overview

GIGABYTE A520M H ARGB Motherboard

GIGABYTE UD series motherboards use pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.


NVMe PCIe Gen 3 x4 2280 M.2 Connector

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.


GbE LAN

Gigabit Ethernet (GbE) LAN provides significantly faster data transfer speeds of up to 1 Gbps, which is ten times faster than traditional 100 Mbps Fast Ethernet, enabling smoother streaming, faster file transfers, and more responsive network applications.


Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.


High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high resolution and high-fidelity audio to provide the most realistic sound effects for gamers.


Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analogue audio components from potential noise pollution at the PCB level.


Start Sulphurisation Protection

Sulphur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulphur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.


Features

• Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
• Integrated ARGB header and Q-Flash Plus button
• PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
• Fast Network: GbE LAN
• 8-Channel HD Audio with High Quality Audio Capacitors
• Rear HDMI and DisplayPort for Multi-display Support
• Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• GIGABYTE CONTROL CENTER (GCC), Simple and Easy Use

Specifications
Core Specifications
Edition A520M H ARGB
Form Factor MicroATX
CPU Socket AM4
Chipset AMD A520
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-80, PCIe Gen3x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 3 x Addressable Digital RGB Header
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x M.2
  • 1 x RGB LED connector
  • 4 x SATA III - 6Gb/s
  • 1 x speaker header
  • 2 x System Fan header
  • 1 x TPM Header
  • 2 x USB 2.0
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek (Gigabit LAN)
Rear I/O Connectors
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Q-Flash Plus Button
  • 1 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 233 x 198 mm
Note
Additional Information
Scan Code LN168514
Model Number A520M H ARGB
GTIN 4719331879822
