Audio Monitoring Ecosystem

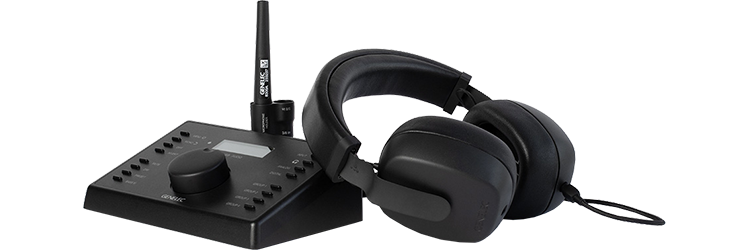

Genelec - UNIO
Bridging in-room and personal headphone monitoringThe Genelec UNIO Ecosystem gives audio engineers the ability to seamlessly navigate different monitoring options, giving them the flexibility to work anywhere, anytime – from stereo to immersive. Now, with UNIO Personal Reference Monitoring (PRM), audio professionals benefit from the pinpoint accuracy of our pioneering active monitoring headphone solution.
Bringing the precise resolution and adaptive power of our Smart Active Monitoring (SAM), GLM and Aural ID Technology to the engineer's fingertips, UNIO allows the rapid creation of mixes that translate with maximal consistency.
Imagine you left the studio, putt on your headphones and get a listening experience that’s tightly matched to your trusted in-room SAM Monitors. The 9320A SAM™ Reference Controller – especially within our UNIO PRM solution – is uniquely positioned to offer you this ability, with the precision required to mix with confidence every time.
What’s Included?
• 9320a Controller
• 8550a Headphones
• 9320a Case
• 8550a Case
• Genelec Calibration microphone
• USB-C cable, with optional type A connector
• Alternative earpads & Headband
• Interchangeable coiled or straight cable
UNIO Personal Reference Monitoring
ultra reliableUNIO PRM provides powerful reference-quality audio monitoring using the 8550A Professional Reference Headphones, each of which are calibrated individually at our factory in Iisalmi, Finland – carefully matching them to the 9320A SAM™ Reference Controller, for total accuracy.
This uniquely matched system represents a pioneering new active monitoring headphone solution with exceptional sonic reliability, taking the UNIO Ecosystem’s seamless bridging of in-room and personal headphone monitoring to an entirely new level.
UNIO Audio Monitoring Ecosystem
Ultimate Precision
Accuracy across monitoring optionsCreate a seamless bridge between loudspeaker and headphone monitoring, with personal calibration tools to ensure maximal precision.
Increased freedom for creativityTruthful playback over both fixed and mobile monitoring allows for work with elevated quality in and beyond the studio.
Exceptional connectivityNatively supports computer audio over USB, and analogue and AES/EBU audio. Use of 9401A adds full support for Audio-over-IP (ST2110, AES67 and Ravenna).
Genelec UNIO Explained
How the ecosystem offers seamless in-room and personal headphone monitoring
The Tech Spec
| Features | Specification | Frequency Response, -3 dB point in 9320A | - AES/EBU input to headphone output: 0 - 46kHz - Line input to headphone output: 0.2Hz - 46kHz |
|---|---|
| Frequency Response Flatness in 9320A | ±0.1dB |
| Channel Gain Difference in 9320A | <0.1dB |
| THD+N Distortion and Noise in 9320A | - AES/EBU input to headphone output: <0.0003% Line input to headphone output: <0.0004% |
| Input to Output Latency | AES/EBU input to headphone output: 3.2ms Line input to headphone output: 2.1 |
| Connector | 1/4" TRS |
| Electrical Interface | Split supply, Ground Referenced |
| Max Output Current | 120mA |
| Dynamic Range | 126dB |
| Noise A Weighted (20Hz - 20kHz) | 3 uV |
