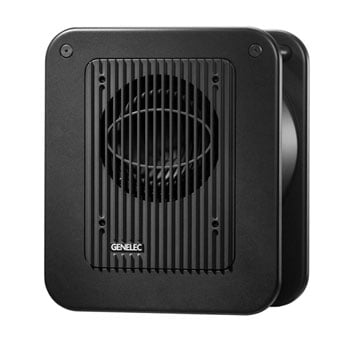

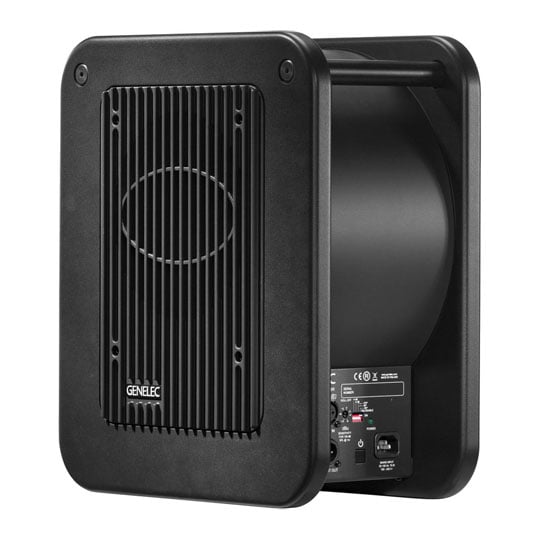

Genelec - 7040A Active Sub Monitor
Genelec - 7040A 6.5" 50W Powered Studio Subwoofer, with 6.5" LF Driver
Compact Professional Subwoofer
Genelec - 7040A

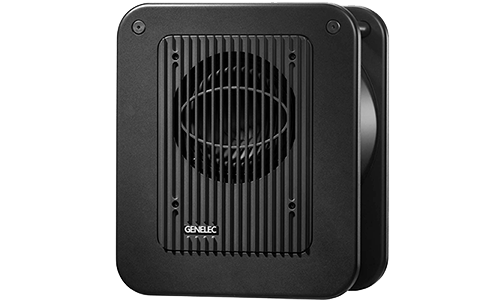

Professional Studio SubwooferSeen here in an exquisite dark grey finish, Genelec’s game-changing 7040A Studio Subwoofer is a professional studio sub designed from the ground up to deliver precision low-frequency reproduction in limiting production spaces. No matter how limited your studio may be in terms of real-estate, due to the 7040A’s small footprint, its perfect for home studios, mobile studios and portable recording systems.
The 7040A makes the perfect complement to Genelec’s hugely popular 8010A and 8020A monitors. It furthers the low-frequency response right down to a lowly 30Hz and utilises Genelec’s patented Laminar Spiral Enclosure (LSE) technology to offer both accurate bass detail and extended low-frequency capacity. Once put to work in a stereo setup, the 7040A is capable of producing 100dB of distortion-free SPL via the 6.5” woofer and Class-D amplifier.
100dBMax SPL
33Hz - 85HzFrequency Range
2x XLR Audio I/O
at a glance
• 6.5" Dome Driver
•
50W Class-D Amplifier
• Ideal Complement to 8010A & 8020Ae
•
Integrated Bass Management
"It Just Sounds ‘Right’."
Not just ‘more bass’A great subwoofer is about so much more than just delivering ‘more bass’. The laminar spiral design of the 7040A ensures that it can deliver high SPL performance that is precise, articulate and free from distortion, right down to 30 Hz. So when partnered with our 8010 or 8020 nearfield monitors, the 7040A creates a full-range system that is completely seamless. It just sounds ‘right’.
Superior management skillsOnboard bass management technology enables the 7040A to filter LF information from the main channels and take responsibility for handling it – thus increasing the headroom and reducing the distortion of the main monitors, which can then focus their energies on the rest of the frequency spectrum.
The Tech Spec
| Features | Specification | SPL | 100 dB |
|---|---|
| Frequency Response | 30 Hz - 90 Hz ("-6 dB") |
| Driver Dimensions | ⌀ 165 mm Bass (view in inches) |
| Weight | 11.3 kg / 24.9 lb |
| Amplifier Power | 50 W Bass (Class D) |
| Accuracy of Frequency Response | ± 3 dB (33 Hz - 85 Hz) |
| Dimensions | H 410 x W 350 x D 205 mm, (view in inches) |

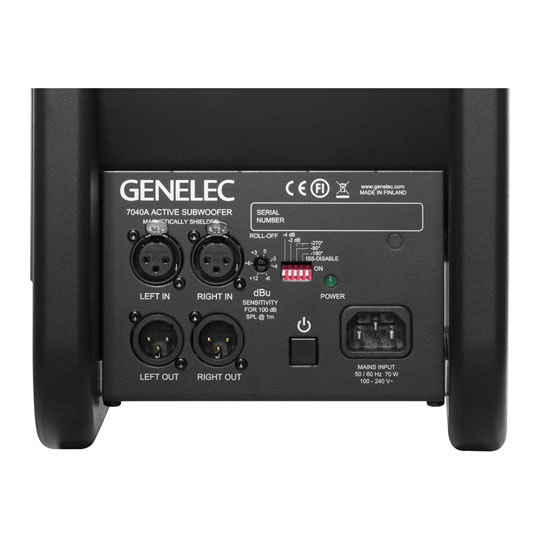

| Connections | 2 x XLR Analogue Input 2 x XLR Analogue Output |
