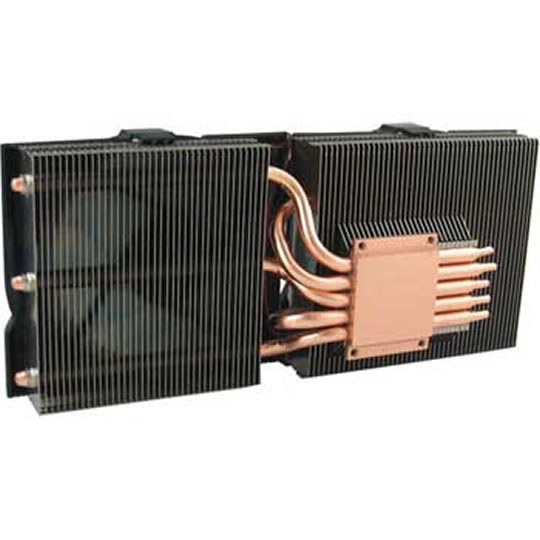

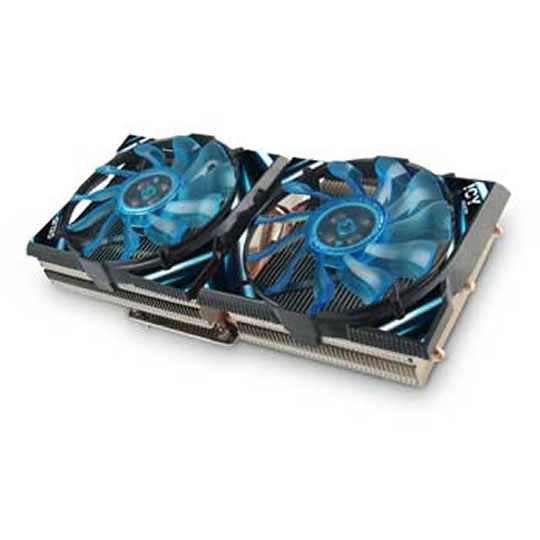

The “Rev. 2 ICY VISION” cooler contains 5 power heatpipes in a unique heatpipe constellation. The heatpipes are interlaced into 85 optimized high-quality Aluminium fins. Together with a flat stack fin soldered Copper base, they enable the most efficient heat transmission and dissipation from GPU core in its class. Besides the heatsink, two 92mm UV-reactive fans with 11 blades in S-shape generate 20% additonal air flow than traditional fans. The fan contains a high-quality ball bearing to ensure a longer lifetime in high temperature environments. Features
• Five high performance power heatpipes • Premium aluminium fins and pure copper base • Two 92mm S-shape fans for 20% additional air flow • Ball bearing for long life
ATI Compatibility HD4850, HD4870, HD4890, HD5830, HD5850, HD5870, HD6850, HD6870, HD6950* and HD6970 *
Please note - HD6950 and HD6970 series of graphics cards need to also use the Gelid Solutions Icy Vision HD6900 VRM Cooling Enhancement Kit to ensure the VRM chips are cooled correctly.
The compatibility list is based on ATI & Nvidia's reference board layout ONLY. GELID Solutions holds no responsibility for incompatibility on non-standard cards. Please refer to the height restriction drawing. Installation manual for AMD and Nvidia cards to download on the Gelid Website.
GeForce GTS 250
GeForce GTX 260
GeForce GTX 275
GeForce GTX 280
GeForce GTX 560 Ti
GeForce GTX 570
GeForce GTX 580
GeForce GTX 680
GeForce GTX TITAN
Approx Fan Speed
Adjustable Fan Speed Controller
95 x 52 x 216 mm mm (WxHxD)
Please note your statutory rights are not affected.
Gelid Solutions Icy Vision Rev.2 VGA Cooler for High-end AMD and Nvidia is rated
3.6 out of
Rated 1 out of
You cannot control the fan speed.When you connect the fan to the GPU it runs at 100%. You have to connect it to the motherboard to make the fan spin slower.
Date published: 2018-05-05
Rated 3 out of
Works for Gigabyte R9 390, but....I ordered this aftermarket graphics card cooler for my R9 390 gigabyte windforce as high temperatures and failing fans meant the original couldn't keep it below 94c (thermal throttle point). I did some research and was reliably informed this will fit my card and it does. There is just one problematic vram chip near the PCIE connector which due to the heatsink mounting bracket, you cannot fully cover with a heatsink but it works with no issues or artifacting after 6 hours soak test in Unigine Heaven. Also, the aftermarket cooler temps never got over 68c which is fantastic compared to the original.
The 3M tape provided to stick on the little heatsinks is woefully inadequate. They just about do for the vram chips as there is more surface area, but on the mosfets and chokes forget it. They barely stay on under their own weight and i would urge gelid to supply a tube of thermal adhesive instead which is what i have used.
Its a shame because an otherwise decent product is let down by a poor choice of materials...
Date published: 2018-03-14
Rated 5 out of
Tamed a R9 290 4GBThe legendarily toasty R9 290 4GB was tamed with this GPU cooler.
There is a VRM adaptor kit for the R9 290 4GB sold by some retailers. Equally, if you have Dremel kit or drill you can grind out the mounting holes on VRM heatsink to fit onto a R9 290 4GB main VRM.
With high airflow PC case, this GPU cooler let me get the card down into the 70s, from 88C-94C with the reference blower.
Date published: 2017-08-04
Rated 5 out of
Huge temp drop with less noiseI put this on a GTX 670 FTW+ edition, the cooler came with enough heatsinks to cover all the memory modules on both sides of the card (16 total). Some of the VRM was slightly out of place for using the heatsinks as they came so I just improvised and stuck some of the larger sinks over 4 VRM chips.
Installation was extremely easy, instructions are simple enough to follow.
Temperatures dropped from the mid 70s with the reference cooler on max fan all the way down to the 50s with mid fan speed on this cooler. Now inside my cooler master silencio 650 I run this cooler and am able to overclock the 670 to just under 1300mhz with max power limit, memory to 7500mhz and keep the temps somwhere in the low 60s with perhaps a 24c ambient. All with less noise than the old blower cooler.
I am impressed with this product, the only con was that the adhesive pads that you use to stick the vrm/memory heatsinks to the relevant chips were not great. I had issues with sinks falling off memory modules due to the lack of adhesion, however now after a good few heat cycles they seem pretty well stuck on there.
Overall does the job nicely, just watch out for the thermal adhesive (possibly the ones included with mine had just been sat around a while/dried a bit and others are fine), after you install the card keep checking it for the next few hours to see if any sinks fell off, and perhaps be prepared to use thermal adhesive of your own in a worst case.
Date published: 2016-09-16
Rated 4 out of
OkUse as a broken replacement, not as an OE replacement.
Performance no better than stock - but if your stock has broken, or like me - an idiot - you've thrown away the stock after having fitted waterblocks - then this is a great replacement.
Date published: 2014-12-05
Rated 4 out of
decent coolerPretty good quality, tonnes of small heatsinks left over which I can use on other pc parts or even electronics.
Instructions are a bit generic and don't cover most GPU's but anyone with half a brain can figure it out pretty quickly.
Installed this on a GTX 560ti (old!)
Date published: 2014-11-28
Rated 1 out of
GTX Titan users steer clear!Although it says it's compatible with the GTX Titan, the instructions don't even mention the Titan at all and so the only way to (eventually) fit it was to go off-script, as it were, only to find once it was up and running, that it is barely an improvement over the stock cooler at all, apart from the reduced noise.
Absolutely pointless; for the long, tedious fitting process, you'd expect far better results!
I repeat: GTX Titan users, look elsewhere!
Date published: 2014-06-27
Rated 4 out of
CoolI purchased this item when a fan blade snapped on my MSI 560ti twin frozr 2. This is a great product and has reduced the temperature and noise from my graphics card dramatically.
