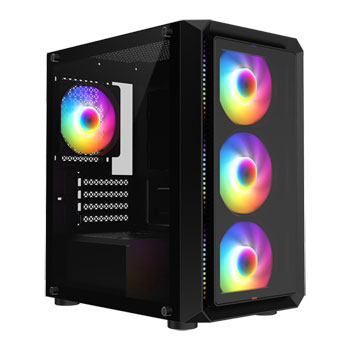

GameMax Icon MicroATX Tempered Glass PC Gaming Case Black

GameMax Icon, Black, MicroATX Chassis w/ Tempered Glass Window, 4x 120mm ARGB Fans, USB 3.0, mATX/mITX

Thumbnail 1 : GameMax Icon MicroATX Tempered Glass PC Gaming Case Black Thumbnail 2 : GameMax Icon MicroATX Tempered Glass PC Gaming Case Black Thumbnail 3 : GameMax Icon MicroATX Tempered Glass PC Gaming Case Black Thumbnail 4 : GameMax Icon MicroATX Tempered Glass PC Gaming Case Black
Scan code: LN147731 Manufacturer code: CSGMXICONBLK
Order now and get it tomorrow, Wed 24th Jul
£44.99
Get it Tomorrow, 24 JulIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Icon Black Micro-ATX TG Gaming Case

The GameMax Icon is a classic and modern looking Micro-ATX gaming case combining Tempered Glass panels, customisable ARGB lighting, astute airflow and an easy to build in layout. GameMax have ticked both the aesthetic and functionality points and created a well-rounded Micro-ATX chassis.
Utilising two full tempered glass panels on the front and side, the GameMax Icon provides a perfectly clear view of your interior, show off your gaming hardware. The Icon is designed to focus on elegant and stylish aesthetics, customisable ARGB lighting, extremely efficient cooling and easy cable management. Creating a perfect picture frame for your Motherboard and GPU and surround them from all angles with high-performance fans. Install up to a sizeable seven 120mm fans, together with up to three possible water cooling locations.
Moving onto the top of the case the I/O panel provides USB3.0 and USB2.0 connections and inside the Icon we have included a PWM ARGB fan hub with controls for your LED lighting and have access to approximately 365 LED modes or have access to 16.8 million colours using a compatible addressable RGB Motherboard.
This completely black interior has massive build potential with a spacious open interior and plenty of cable management to build a powerful compelling gaming PC. It can fit a graphics card up to 30.5 centimetres in length, CPU Cooler up to 16 centimetres in height and can hold 1 x 2.5" and 1 x 3.5" drives. An ATX power supply unit measuring up to 160mm will fit inside.
Build a charismatic aggressive gaming chassis with the Icon and create a flawless gamers case with its elegant design this chassis is a perfect choice for gamers seeking both style and functionality.

Features

• Aesthetic: The GameMax Icon is an excellent case to showcase your building skills. With a unique and stylish design with dual tempered glass panelling on the front and side of the chassis it allows you to have an unobstructed view of your gaming hardware letting you construct a gaming PC that looks good from every angle.
• Functional: The Icon's astute airflow comes not only from the four pre-installed 120mm ARGB Inner-Ring Black Fans, but also from the stylish vents around the sides of the front panel. In addition to allowing cool air to flow into the case, they also showcase the Icon's beautiful LED lighting onto the front panel's TG edges.
• Airflow: The GameMax Icon comes with 4 x pre-installed 120mm ARGB Inner-Ring Black Fans - As a PWM fan (Pulse-Width Modulation) its rotation speed can be user controlled by connecting the fan to a compatible motherboard or fan controller. As a result users can choose whether they want the fan to run quietly or have enhanced airflow.
• Fan Controller Included: A PWM hub is included inside the Icon which allows you to add 6 case fans and powered directly from your power supply via SATA you can have access to using the LED button and its connected to the Motherboard using a single cable you can do it without any additional cables.
• PWM Fan Control: The hub can be connected to CPU fan interface on your chosen Motherboard to access temperature readings. The CPU temperature increases the fan automatically increases its speed and swiftly cools down and when the CPU temperature decreases the fan automatically slows reducing the overall noise.
• Motherboard Software: The ARGB lighting effects can be synced through the Motherboard which supports ARGB function, 5V 3-Pin Addressable RGB header, including ASUS AURA, MSI Mystic Light, Gigabyte Fusion 2.0 & ASRock. Customise the look with endless possibilities with 16.7 million static modes and 12 pre-set lighting effects.
• Available In Two Colours: The GameMax Icon is available in two colours, black or white. This model of the Icon is the black, the perfect backdrop for high-end hardware and RGB lighting.
• Outstanding Cooling: Support for up to seven fans in total Front: 3 x 120mm Fans, Top: 2 x 120mm Fans, Rear: 1 x 120mm Fan & PSU Shroud: 1 x 120mm Fan. The Micro-ATX casing can also house a 240mm radiator at the front, or a or 120mm radiator at the front, top or rear keeping the internal temperature at an optimum level.
• Micro-ATX Housing: Standing at 400mm high, 210mm wide and 355mm deep the Icon can accommodate the latest powerful components with 305mm of clearance for GPUs and can facilitate CPU coolers up to 160mm tall.

Specifications
Core Chassis Specifications
Case Edition GameMax Icon
Case Form Factor MicroATX
Motherboard Form Factor
  • MicroATX
  • Mini-ITX
Reverse Connection Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x HD Audio
  • 1 x Mic In
  • 1 x USB 2.0
  • 1 x USB 3.0
Drive Bays
  • 1 x 2.5" Internal
  • 1 x 3.5" Internal
Standard Expansion Slots 4
Vertical Expansion Slots
Fans & Filters
Fan Bays
Fans Included
  • 4 x 120mm
  • 2 x 120mm / 2x 140mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility 1 x 240mm
Top Radiator Compatibility 1 x 240mm
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 160 mm
Max GPU Card Length 305 mm
Cable Routing Space 21 mm
Side Panels
Window/s Yes
Window Configuration 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting Yes
LED Lighting Emitters Included Addressable LED Fan/s
LED Lighting Colour RGB
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length 160 mm
Chassis Physical Specifications
Colour Black
Chassis Construction Materials Steel
Dimensions 210 x 400 x 355 (WxHxD mm)
Weight 4.2 kg (Approx)
Package Type
Please Note
Additional Information
Scan Code LN147731
Model Number CSGMXICONBLK
GTIN 5055492414984
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
GameMax
