GameMax Abyss RGB Infinity Mirror Midi PC Gaming Case

Game Max Abyss, RGB Mid Tower Computer Case, w/ Window+Glass Infinity Mirror, E-ATX/ATX/mATX/mITX, 120mm RGB LED Fan

Thumbnail 1 : GameMax Abyss RGB Infinity Mirror Midi PC Gaming Case Thumbnail 2 : GameMax Abyss RGB Infinity Mirror Midi PC Gaming Case Thumbnail 3 : GameMax Abyss RGB Infinity Mirror Midi PC Gaming Case Thumbnail 4 : GameMax Abyss RGB Infinity Mirror Midi PC Gaming Case
Scan code: LN85611 Manufacturer code: ABYSS
£79.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 25th Sep 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

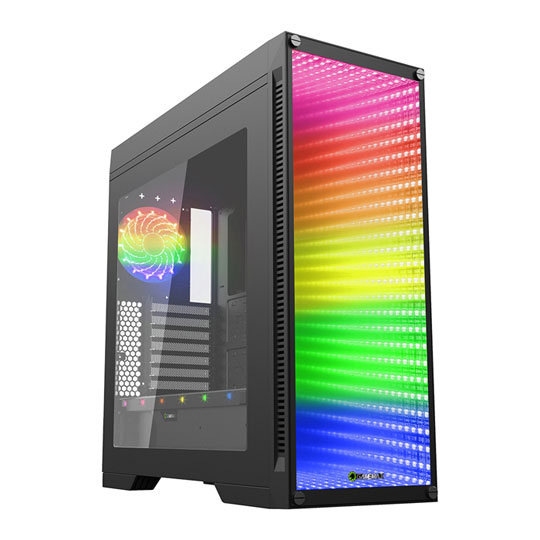

Product Overview The Game Max Abyss with an infinity mirror with RGB LED lighting on the front and a tempered glass front panel with a Perspex side panel. The most important adjustment feature is directly in the eye with an intelligent integrated infinity mirror at the front. This optical illusion is created by a glass front, consisting of an outer one-way mirror, which partially reflects light on its inner side and is partially transparent to the exterior and a fully reflecting mirror inside, placed parallel behind it.

The light emitted by an RGB LED strip arranged in the gap around the walls is thus reflected back and forth between the two mirrors, whereby, with each reflection, a part of the light penetrates visibly outwards and ultimately produces the visual effect. The principle corresponds to the mirrors in police interrogations frequently shown in crime series and films. There is also an RGB LED strip on the PSU cover.

The highlight of this lighting arsenal is its complete configurability with adjustable colours in the RGB kit built-in, along with the PWM function, to produce silent cooling and the Abyss offers seven different LED colours at the front and on the side panel with the RGB LED strip and it offers five different colour lighting effects. The colours include Red, Green, Blue, White, Purple, Orange and Yellow which allows an amazing lighting show to be arranged according to your own ideas. Features • RGB Fan Controller.
• PWM Speed control.
• An intelligent integrated infinity mirror at the front gives the case an optical illusion.
• Big Transparent Side Window with Tempered glass front panel.
• 2 fan controllers located on the top can be used when the user installs an additional top or front fan.
Specifications
Core Chassis Specifications
Case Edition Abyss
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone
  • 1 x Mic In
  • 2 x USB 2.0
  • 2 x USB 3.0
Drive Bays
  • 3 x 2.5" Internal
  • 2 x 2.5"/ 3.5" Internal
  • 1 x 3.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 2 x 120/140mm
  • 4 x 120mm
Fans Included 1 x 120mm w/ RGB LEDs
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/240/360mm
Top Radiator Compatibility 1 x 120/140/240/280/360mm
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 165 mm
Max GPU Card Length 455 mm
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials SPCC / Plastic / Tempered Glass
Dimensions 210 x 526 x 515 (WxHxD mm)
Weight 9.2 kg (Approx)
Please Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

Reviews
Questions & Answers

Can the RGB Colours be controlled?

Asked by: mrdomsimpson
There is a pwm controller at back of motherboard mount 4 pin rgb connector cables plug into that. There is a button that is plugged into the pwm controller thus when you press is the rgb lighting changes.
Answered by: pLagued
Date published: 2018-08-28

Rainbow effect as per the thumbnail?

Can you have the rainbow effect as per the photo? Will this case work with an air-cooled system?
Asked by: OspreysPJs
Hello, The LED's cannot be configured to display as per the image, they will all display the same colour and cannot be individually programmed. The case will be fine with an air cooled setup. Regards,
Answered by: JackB
Date published: 2018-06-12
