Scan code: LN107915 Manufacturer code: FUS-SSD-2RAID-E

Sonnet Fusion Dual 2.5" SSD Raid

Fusion Dual 2.5" SSD Raid, Dual 2.5-inch SSD PCIe 3.0 card with hardware RAID controller

Thumbnail 1 : Sonnet Fusion Dual 2.5" SSD Raid Thumbnail 2 : Sonnet Fusion Dual 2.5" SSD Raid
Scan code: LN107915 Manufacturer code: FUS-SSD-2RAID-E
£144.49Item currently awaiting an ETA
Pre order
From £12.98 / month (APR 14.9%)
Monthly Payment: £25.08
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £144.49
Total inc. interest: £150.43
Monthly Payment: £12.98
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £144.49
Total inc. interest: £155.66
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Sonnet - 'Fusion Dual 2.5" SSD RAID'
Dual 2.5" SSD PCIe 3.0 Card
with Hardware RAID Controller

Sonnet - Fusion

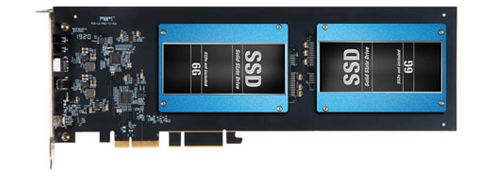

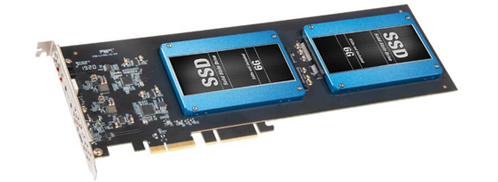

Install Two 2.5-inch sata SSDs into a PCIe Card Slot If you need faster, high-capacity internal storage for your desktop computer or server, 2.5-inch SATA SSDs are the cost-effective choice. Sonnet’s Fusion™ Dual 2.5-inch SSD RAID PCIe card enables you to upgrade your system in a flash, mounting one or two SSDs (sold separately) with up to 8TB capacity in a single full-length PCIe card slot, with no power or data cables, adapters, or mounting trays required.

Hardware RAID Controller OnboardA high performance RAID controller manages the SSDs you install, supporting Fast (RAID 0), Safe (RAID 1), Volume (Span) and, particularly important to pro audio users, JBOD (Just a Bunch of Disks) configurations, so you can choose the mode that best suits your needs.

key features • Compatible with 2019 Mac Pro
• Optimized for Maximum Performance Over Thunderbolt
• Adds Up to 8TB of SSD Storage
• Great SSD Performance – Up to 1000 MB/s
• Onboard Hardware RAID Controller
• USB 3.2 Gen 2 USB-C Port

Fast USB Speed

4K Recording

plus Plenty of Power for Bus-powered DevicesSonnet’s Fusion Dual 2.5-inch SSD RAID card also includes a SuperSpeed USB-C (USB 3.2 Gen 2) port that supports data transfers of up to 1000 MB/s, and provides up to 15W of power to support bus-powered devices—you can connect a fast external drive without installing another card.

Thunderbolt Port?
Connect Two SSDs Through One Cable
Got a Thunderbolt™ connection, but no PCIe card slot? Fusion Dual 2.5-inch SSD RAID card provides full performance and is ideal for use in a Sonnet Thunderbolt 3 or Thunderbolt 2 edition Echo™ Express III-D, III-R, or xMac™ Thunderbolt to PCIe card expansion system. The combo enables you to add two SSDs plus a USB-C port to any Mac® or Linux® computer with Thunderbolt 2 or Thunderbolt 3 ports, or Windows® PC with Thunderbolt 3 ports.

Fusion Dual 2.5-Inch SSD RAID Card Overview

sonnet technologiesThis video highlights the features of Sonnet’s Fusion Dual 2.5-inch SSD RAID PCIe card. The Fusion Dual 2.5-inch SSD RAID enables you to mount two 2.5-inch SATA SSDs (sold separately) into a PCIe slot in your computer. Featuring an onboard hardware RAID controller, you can can format the drives into a RAID 0 group and see data transfers up to 1000 MB/s, or choose RAID 1 (mirroring) to create simultaneous backup of data between drives — JBOD and Span configurations are also supported.

The Tech Spec

Features Specification
Mac Compatibility Mac Pro 5,1 (Mid 2010 & Mid 2012) with available full-length PCIe slot Mac Pro 7,1 (2019) macOS 10.10.5, 10.12.6+(4) macOS Catalina compatible Note: not compatible with macOS 10.11
Windows Compatibility Computer with available full-length, full-height PCIe slot (PCIe 3.0 slot is preferred) Windows 10, 8.1, 7 Windows Server 2016, 2012, 2008 (64-bit editions)
Linux Compatibility Computer with available full-length, full-height PCIe slot (PCIe 3.0 slot is preferred) Linux Kernel 5.0+
Thunderbolt Compatibility Mac computer with Thunderbolt 2 or Thunderbolt 3 ports via a Thunderbolt 2 or 3 to PCIe card expansion system with available full-length PCIe slot Windows computer with Thunderbolt 3 ports via a Thunderbolt 3 to PCIe card expansion system with available full-length PCIe slot Linux computer with Thunderbolt 2 or Thunderbolt 3 ports via a Thunderbolt 2 or 3 to PCIe card expansion system with available full-length PCIe slot
Warranty 2-year
Form Factor Full-height, full-length PCIe card
Bus Interface PCI Express 3.0 x4
Internal Connectors Two SATA for 2.5-inch SSDs
External Connector One USB-C port (10Gbps USB 3.2 Gen 2)
SSDs Supported SATA 6 Gb/s
Boot Support No
Supported Drive Configurations RAID 0 RAID 1 Span JBOD
Peripherals Supported Industry standard USB 3.2 Gen 1, 2 & 2x2, USB 3.1 Gen 1& 2, USB 3.0, 2.0, and 1.1
Bus-powered Peripherals Supported HD, SSD, SSD RAID 3.0A advertised using USB CC (Channel Configuration) Up to 15W for operation or charging
Cables Supported USB-C 10Gbps USB-C 5Gbps Thunderbolt 3 40Gbps (0.5- and 0.7-meter only) Thunderbolt 3 20Gbps
