FSP U500 Full Tower Workstation Case Black
FSP U500 Full Tower Workstation Case Black
Scan code: LN163499 Manufacturer code: Workstation Chassis
£124.99Item due on 04 September 2026
Pre Order
Due 4th Sep
  • Thumbnail 1 : FSP U500 Full Tower Workstation Case Black
  • Thumbnail 2 : FSP U500 Full Tower Workstation Case Black
  • Thumbnail 3 : FSP U500 Full Tower Workstation Case Black
  • Thumbnail 4 : FSP U500 Full Tower Workstation Case Black

FSP U500 Full Tower Workstation Case Black

FSP U500 Workstation Chassis, Full Tower Chassis, 5x 120mm PWM Fans, 480mm Radiator support, E-ATX/ATX
MORE INFO
MORE INFO

Scan code: LN163499 Manufacturer code: Workstation Chassis
£124.99
Item due on 04 September 2026
Pre Order
Due 4th Sep
Pay in 3 interest-free payments of £41.67

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £11.33 / month (APR 16.9%) for 12 months or 0% for 4 months
  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.

Suggested Alternatives

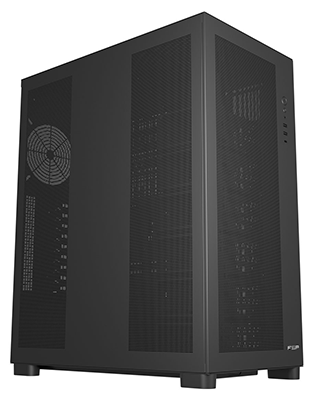

U500 Workstation Chassis from FSP

U500 Workstation Chassis from FSP

Aesthetics Meet High Performance The FSP U500 is a premium workstation-grade PC case designed for high-performance computing and demanding workloads. It features a minimalist design, supports dual 420mm graphics cards, and accommodates E-ATX, ATX, M-ATX, and Mini-ITX motherboards. Equipped with advanced cooling, it includes five PWM fans, a digital fan speed display, and 480mm radiator support, ensuring efficient heat management for versatile, power-packed builds.

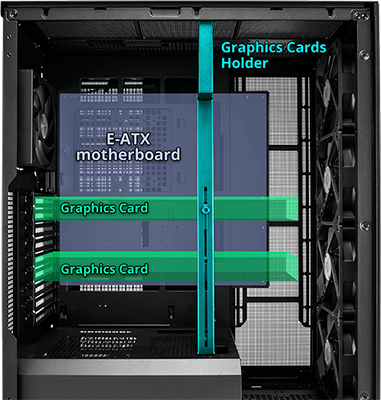

Diagram for motherboard and graphics compatibility

Dual Graphics Cards Holder The U500 PC case can accommodate two graphics cards up to 420mm long and includes a built-in holder to provide extra support and stability.

Unleash the Graphics Cards Power The U500 is designed to withstand heavy workloads and meet the rigorous computing needs of high-performance workstations.

High Capacity and Ultimate Compatibility With its spacious interior, the U500 is designed to support a wide range of motherboards, including E-ATX, ATX, M-ATX, and Mini-ITX. It also accommodates dual high-end graphics cards, making it the perfect choice for powerful, versatile builds.

Precision Cooling Redefined The U500 features a digital fan speed display for real-time tracking and adaptive control, ensuring consistent performance during heavy tasks. It includes five 120mm PWM fans to provide strong and efficient cooling.

Outline of a hard drive
STORAGE SSD x6 / HDD x4

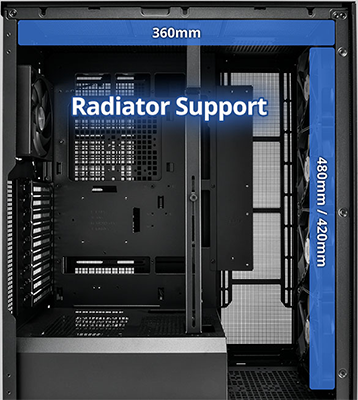

Diagram for radiator support

Ultimate Cooling Power Enjoy superior cooling performance with our advanced PC case design, crafted to deliver optimal airflow and keep your system operating at its best.

480mm Radiator Support Built for maximum thermal efficiency, this PC case supports a 480mm radiator, providing excellent heat dissipation for powerful, high-performance systems.

480mm Radiator Support
USB icon
USB Port Type-C / USB 3.0 x2
PSU icon
PSU 240mm
Specifications
Core Chassis Specifications
Case Edition U500
Case Form Factor Full Tower
Motherboard Form Factor
  • ATX
  • E-ATX
  • MicroATX
  • Mini-ITX
Back Connect Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 2 x USB 3.0
  • 1 x USB Type-C
Drive Bays 4 x 3.5" / 6x 2.5" Internal
Standard Expansion Slots 9
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 3 x 120mm
  • 8 x 120mm / 7x 140mm
Fans Included 5 x 120mm
Fan Controller/Hub
Dust Filters
  • Bottom
  • Side
Liquid Cooling Support
Front Radiator Compatibility 1 x 420/480mm
Top Radiator Compatibility 1 x 360mm
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 180 mm
Max GPU Card Length 420 mm
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 250 mm
Chassis Physical Specifications
Colour Black
Chassis Construction Materials SPCC
Front Panel Type N/A
Dimensions 258 x 451 x 568 (WxHxD mm)
Weight 10.6 kg (Approx)
Package Type Retail
Please Note
Additional Information
Scan Code LN163499
Model Number Workstation Chassis
GTIN 845685015457
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
7 days
RTB Period:
12 months
Manufacturer Contact Details
Telephone:
01204-474747
