FS NVIDIA/Mellanox MFM1T02A-T-I 10GBASE-T SFP+ Copper RJ-45 30m Transceiver Module
FS NVIDIA/Mellanox MFM1T02A-T-I 10GBASE-T SFP+ Copper RJ-45 30m Transceiver Module
Scan code: LN153537 Manufacturer code: 111946
£125.99Item currently awaiting an ETA
Pre Order
Pre order
  • Thumbnail 1 : FS NVIDIA/Mellanox MFM1T02A-T-I 10GBASE-T SFP+ Copper RJ-45 30m Transceiver Module
  • Thumbnail 2 : FS NVIDIA/Mellanox MFM1T02A-T-I 10GBASE-T SFP+ Copper RJ-45 30m Transceiver Module

FS NVIDIA/Mellanox MFM1T02A-T-I 10GBASE-T SFP+ Copper RJ-45 30m Transceiver Module

FS.COM MFM1T02A-T-I 10GBASE-T SFP+ Copper RJ-45 30m Transceiver Module, 802.3an/802.3az/SFP+ MSA/ SFF-8431, 2.5W
MORE INFO
MORE INFO

Scan code: LN153537 Manufacturer code: 111946
£125.99
£5.48 NEXT DAY DELIVERY
Item currently awaiting an ETA
Pre Order
Pre order

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £10.50 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £10.50
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £125.99
    Total inc. interest: £125.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info

Suggested Alternatives

Product Overview

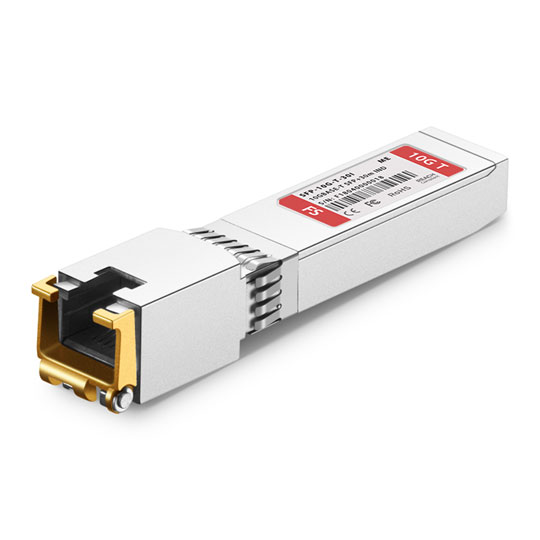

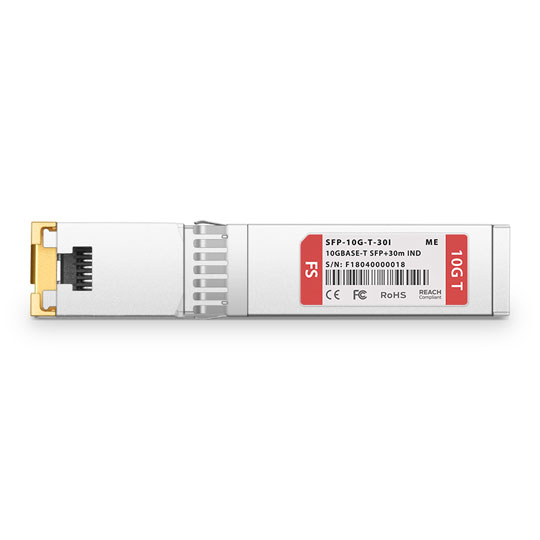

10GBASE-T SFP+ Ethernet Transceiver Module (Copper, 30m, Industrial, RJ-45)

The 10GBASE-T module offers connectivity options at 10Gbps data rates. The module features an SFP+ form factor and an RJ-45 interface, enabling the use of CAT6A/CAT7 cables for connecting to endpoints with embedded 10GBASE-T ports. It supports distances of up to 30 meters, providing a cost-effective solution for intra-rack and inter-rack connections.
This transceiver is compliant with IEEE 802.3an, IEEE 802.3az, SFF-8431 and SFP+ MSA. Each SFP+ transceiver module is individually tested to be used on a series of switches, routers, servers, network interface card (NICs) etc. Featuring an operating temperature range of -40°C to 85°C, this industrial transceiver can work in harsh industrial environments, such as telecommunication, data processing & management, the application of industrial and factory automation, outdoor applications, rail and intelligent transportation systems (ITSs), marine, oil and gas, mining etc.


Features

• Built-in Broadcom Chip, Max. Power Consumption 2.5W.
• Tested in Targeted Switches for Superior Performance, Quality, and Reliability.
• Terminated RJ45 Connectors, Allowing 10G Bandwidth over over Cat6a/7 Cable.
• Industrial Temperature Range -40°C to 85°C.
• FS BOX - Support Real-time Configuration.
• Hot Pluggable SFP+ MSA , IEEE 802.3an and IEEE 802.3az Compliant.
• Operating Temperature Range -40°C to 85°C.
• Digital Optical Monitoring Capability for Strong Diagnostic Capabilities.

Specifications
Edition
Form Factor
Total Network Ports 1 x SFP+
PoE Support Type
No. of Ports Providing PoE
Other Non-Network Ports
Switching Capacity 10 Gbps
Non-Blocking Throughput
Forwarding Rate
MAC Address Table Size
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
  • IEEE 802.3an
  • IEEE 802.3az
Acoustic Noise
Max. Power Consumption
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF) 5,000,000 hours
Power Supply
Material
Includes
Dimensions (WxHxD)
Weight
Additional Information
Scan Code LN153537
Model Number 111946
