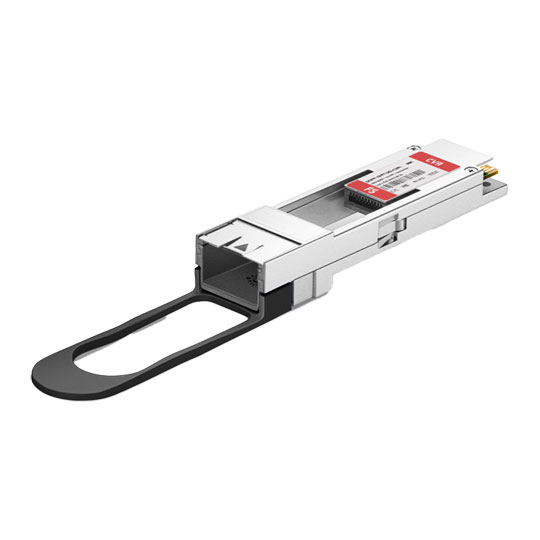

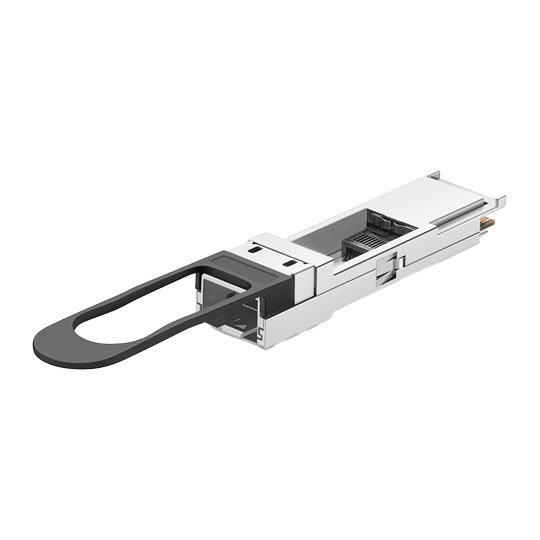

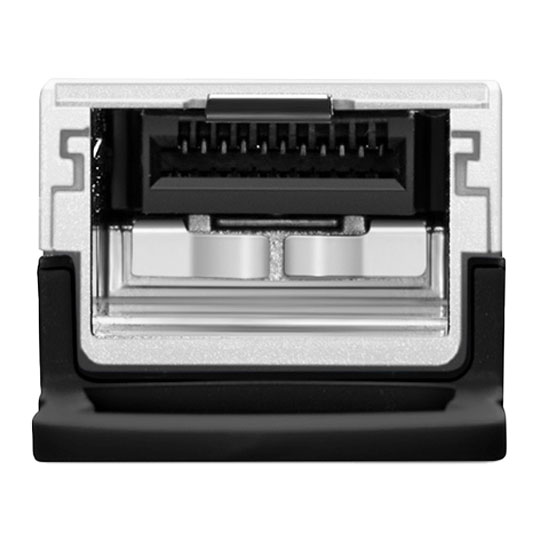

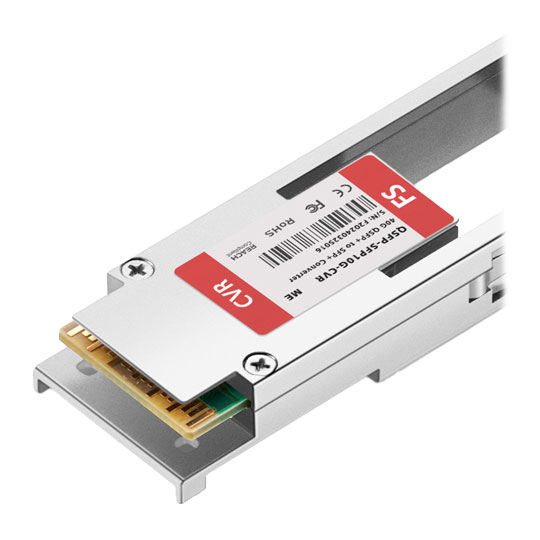

FS QSFP+ 40G to SFP+ 10G Adapter for Mellanox MAM1Q00A-QSA
FS QSFP+ 40G to SFP+ 10G Adapter for Mellanox MAM1Q00A-QSA
Scan code: LN152224 Manufacturer code: 178060
£93.98Item currently awaiting an ETA
Pre Order
Pre order
  • Thumbnail 1 : FS QSFP+ 40G to SFP+ 10G Adapter for Mellanox MAM1Q00A-QSA
  • Thumbnail 2 : FS QSFP+ 40G to SFP+ 10G Adapter for Mellanox MAM1Q00A-QSA
  • Thumbnail 3 : FS QSFP+ 40G to SFP+ 10G Adapter for Mellanox MAM1Q00A-QSA
  • Thumbnail 4 : FS QSFP+ 40G to SFP+ 10G Adapter for Mellanox MAM1Q00A-QSA

FS QSFP+ 40G to SFP+ 10G Adapter for Mellanox MAM1Q00A-QSA

FS MAM1Q00A-QSA Compatible QSFP+ 40G to SFP+ 10G Adapter Converter Module, DDMI Support
MORE INFO
MORE INFO

Scan code: LN152224 Manufacturer code: 178060
£93.98
£5.48 NEXT DAY DELIVERY
Item currently awaiting an ETA
Pre Order
Pre order

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info

Suggested Alternatives

Product Overview

Mellanox MAM1Q00A-QSA Compatible 40G QSFP+ to 10G SFP+ Adapter Converter Module

The Mellanox MAM1Q00A-QSA compatible QSFP+ to SFP+ adapter converter module provides 10G Ethernet connectivity for QSFP+ 40G ports. This module is compliant with QSFP+ MSA SFF-8436 and SFP+ MSA SFF-8431. The built-in MCU enables I2C reading of SFP+ registers by reading QSA registers. The SFP+ receptacle is connected to lane 1 of the QSFP+ connector. The other three channels on the QSFP+ connector are not connected.

Note: The FS P/N is changed from CVR-QSFP-SFP10G to QSFP-SFP10G-CVR, but the product is the same. Only the FS P/N has been changed.


Features


Mellanox Compatible: MAM1Q00A
DDM/DOM:Supported
Protocols:QSFP+ MSA SFF-8436, SFP+ MSA SFF-8431
Max Data Rate:10Gbps
Power Consumption:1.5W
Temperature Range: -20 to 85°C

Specifications
Edition
Form Factor QSFP
Total Network Ports
  • 1 x QSFP+
  • 1 x SFP+
PoE Support Type N/A
No. of Ports Providing PoE
Other Non-Network Ports
Switching Capacity
Non-Blocking Throughput
Forwarding Rate
MAC Address Table Size
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
Acoustic Noise
Max. Power Consumption 1.5 W
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF)
Power Supply
Material
Includes
Dimensions (WxHxD)
Weight
Additional Information
Scan Code LN152224
Model Number 178060
