FS for Cisco Compatible 10 Gigabit SFP+ transceiver Module/Adapter SFP-10GSR-85/11552
Scan code: LN98363
Manufacturer code: #11552
FS for Cisco Compatible 10 Gigabit SFP+ transceiver Module/Adapter SFP-10GSR-85/11552
FS for Cisco SFP-10G-SR Compatible Ethernet SFP+ Transceiver Module, 850nm, Hot-pluggable, 10 Gigabit, Short Range, 300m
Scan code:
LN98363
Manufacturer code:
#11552
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Product Overview
Features
• Hot-pluggable SFP+ footprint.
• Supports 9.95 to 10.5 Gb/s bit rates.
• Power dissipation < 1W.
• RoHS-6 compliant (lead-free).
• SFP-10GSR-85.
• Heated 850nm VCSEL laser.
• Receiver limiting electrical interface.

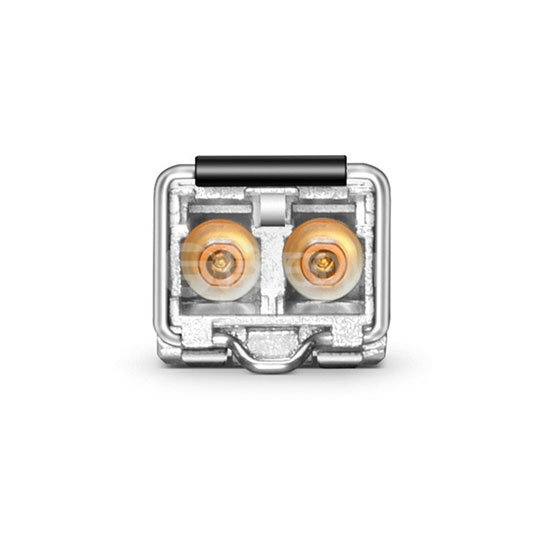

• Duplex LC connector.
• Built-in digital diagnostic functions.
• Industrial temperature range -40°C to 85°C.
• Single 3.3Vpower supply.
• Maximum link length of 400m on.
• 4700 MHZ-km OM4 MMF.
10GBASE-SR SFP+ 850nm 300m DOM Transceiver
10Gb/s SFP+ transceivers are designed for use in 10-Gigabit Ethernet links over multimode fiber. They are compliant with SFF-8431, SFF8432, IEEE 802.3ae 10GBASE-SR/SW and 10G Fibre Channel 1200-Mx-SN-I. Digital diagnostics functions are available via a 2-wire serialinterface, as specified in SFF-8472.The transceiver is a “limiting module”, i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the ICmanufacturer's recommended settings for interoperating the host-board EDC PHY with a limiting receiver SFP+ module. The opticaltransceivers are compliant per the RoHS Directive 2011/65/EU.
• Supports 9.95 to 10.5 Gb/s bit rates.
• Power dissipation < 1W.
• RoHS-6 compliant (lead-free).
• SFP-10GSR-85.
• Heated 850nm VCSEL laser.
• Receiver limiting electrical interface.
• Duplex LC connector.
• Built-in digital diagnostic functions.
• Industrial temperature range -40°C to 85°C.
• Single 3.3Vpower supply.
• Maximum link length of 400m on.
• 4700 MHZ-km OM4 MMF.
