Scan code: LN68494 Manufacturer code: FD-CA-NODE-202-BK

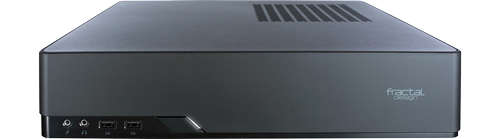

Fractal Design Node 202 mini-ITX SFX HTPC PC Case

Fractal Design Node 202 Mini-ITX Computer Chassis, Horizontal/Vertical Orientation, Max.310mm GPU, USB 3.0, Black SFX

Thumbnail 1 : Fractal Design Node 202 mini-ITX SFX HTPC PC Case Thumbnail 2 : Fractal Design Node 202 mini-ITX SFX HTPC PC Case Thumbnail 3 : Fractal Design Node 202 mini-ITX SFX HTPC PC Case Thumbnail 4 : Fractal Design Node 202 mini-ITX SFX HTPC PC Case Fractal Design Node 202 mini-ITX SFX HTPC PC Case : video thumbnail 1
Scan code: LN68494 Manufacturer code: FD-CA-NODE-202-BK
RRP: £73.99
£49.99
Order now and receive it between 26th Nov and 30th Nov
Delivery Options
  • By DPD On 26th Nov To 30th Nov to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

Node 202 Mini-ITX SFX PC Case from Fractal Design

Fractal Design Node 202 Mini-ITX HTPC PC Case

FLEXIBILITY HAS A NEW FORM FACTOR Introducing the Node 202 by Fractal Design, although compact in size, this Mini-ITX SFX Computer chassis is designed to be sleek and streamlined – plus, it looks attractive next to your TV or on your desk. The internal layout keeps the hot components separate and in proximity of free-flow air so the case will always run smoothly and stay cool. The Node 202 is the ultimate PC case for enthusiasts looking for a stunningly designed, compact case that can house a gaming rig. This highly flexible case can be set up vertically and horizontally to suit your setup and space.

Please note: This case requires an SFX Power Supply.
These SFX power supplies are small form factor, which have reduced dimensions compared to standard ATX PSUs.

SFX Power Supplies

Superior Sleek and Compact Design

Compact chassis

KEY FEATURES OF THE NODE 202 MINI-ITX Total fan mounts 2x 120 mm in graphics card chamber.
Includes 3x Dust Filters for the (CPU, GPU & PSU)
Extremely small footprint with a volume of only 10.2 liters.
Front Ports 2x USB 3.0, Audio in/out, Power button with LED (white)
Supports Mini-ITX motherboards, SFX power supplies and graphics cards up to 310 mm in length.
Includes accessory box, user manual, vertical stand & riser card for graphics card PCI Express 3.0 x16 interface.

Designed to Deliver the Best Performance

Versatility

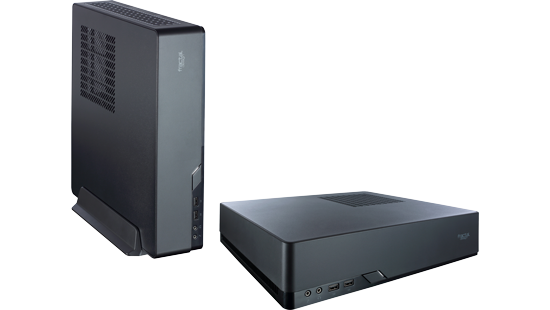

VersatilityA highly versatile case that can be set up both vertically and horizontally.

Design

Thermal DesignProvides a smart thermal interior design highlighting separate motherboard and graphics card chambers.

Dust free interior

Dust-Free InteriorStrategically placed air filters for a dust free interior.

See more from Fractal Design

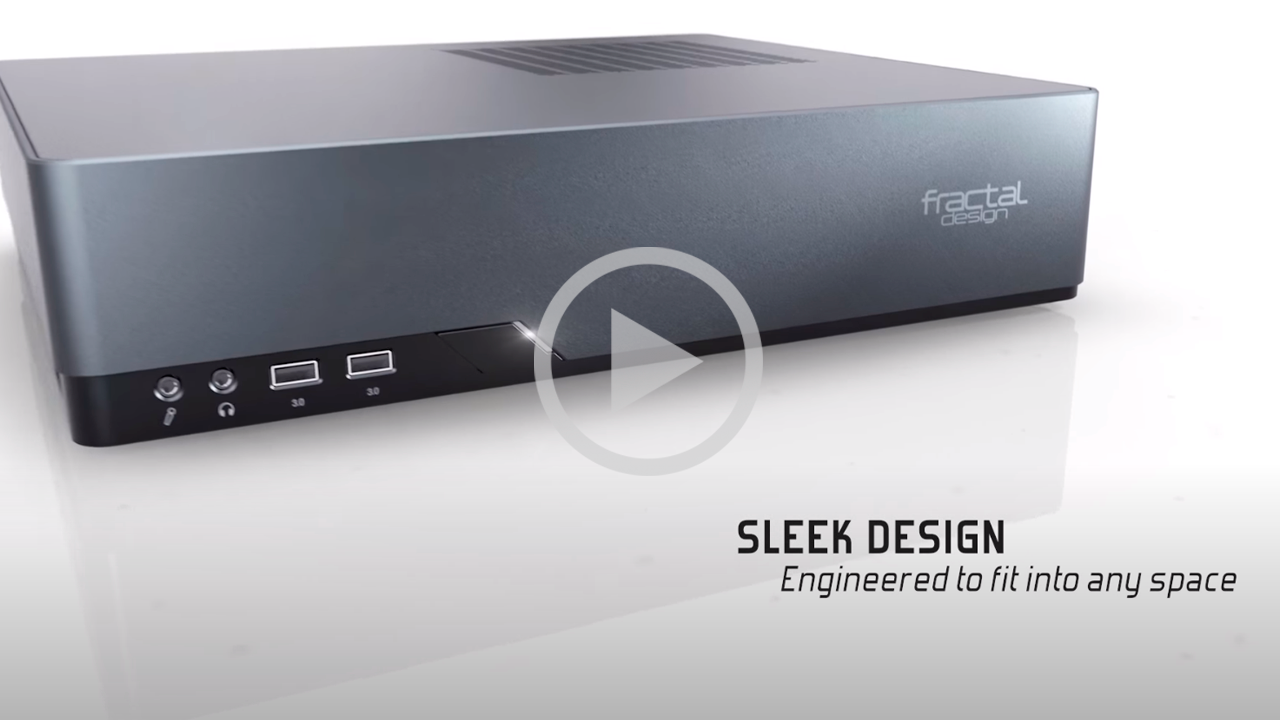

Fractal video
Specifications
Core Chassis Specifications
Case Edition Node 202
Case Form Factor SFX
Motherboard Form Factor
  • M.2
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1 x Mic In
  • 2 x USB 3.0
Drive Bays 2 x 2.5" Internal
Standard Expansion Slots 2
Vertical Expansion Slots
Fans & Filters
Fan Bays 2 x 120mm
Fans Included None
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 56 mm
Max GPU Card Length 310 mm
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support SFX
PSU Mounting Location
Max PSU Length 130 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Steel
Dimensions 377 x 82 x 330 (WxHxD mm)
Weight 3.5 kg (Approx)
Please Note
Additional Information
Scan Code LN68494
Model Number FD-CA-NODE-202-BK
GTIN 7350041082675
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Fractal Design
Loading Please Wait

Please wait . . .

TekSpek Guides
Computer Cases
Computer Cases
Date Issued: 6th Jul 2011

There's more choice than ever before, but which computer case is right for you and which features should you look out for?

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Fractal Design Node 202 Mini-ITX Computer Chassis, Horizontal/Vertical Orientation, Max.310mm GPU, USB 3.0, Black SFX is rated 4.8 out of 5 by 4.
Rated 4 out of 5 by from Extremely good looking, small and neat As long as you can squeeze all you need into this small case, then I can recommend it. My only problems were: all the screws came in one little bag with mixed lengths and threads; hard to fit bottom case fans.
Date published: 2020-06-02
Rated 5 out of 5 by from Amazing and looks fantastic spec I7 skylake 600 watt corsair PSU asus itx mother board 16gb vengeance memory 512gb evo SSD 2 TB hybrid Seagate drive 1080 gtx evga 2x extra fans in fron of GPU Noctua air cooler this thing is so efficient and super cool, aswell as looks amazing, next to my Ps4 its not much bigger yet I'm gaming in 4k at ultra settings, I don't like big cases it puts me off pc, this is the best of both worlds, size of a console, power of a monster rig!!!! it did take a few hours to build, very tricky inside to move around cables, but once ur set its awesome!!!!!
Date published: 2017-12-19
Rated 5 out of 5 by from Excellent case! A really good case, a little hard to build in as its very small but looks very nice in both vertical and horizontal mode.
Date published: 2016-11-21
Rated 5 out of 5 by from Stunning design, 1st class engineering The case for one looks incredible and I think cases like this will begin to phase out everything else now as efficient GPUs / CPUs allow for lower temps. This build was easy and everything has been carefully laid, and thought out. I do reccomend that you re route the power cable though as it stops you putting in your case fans (optional). My only warning is those that are after a cheap small form factor build as the price will creep. Sfx psu are generally between £55 and £100 dependant on wattage, the case fans which have lowered my gpu temps by 7 degrees cost £20 (be quiet case fans) and one of the only decent low profile cpu coolers under 57 mm is by noctua and cost £35. I have an i5 4670k and 970 gtx, my CPU on load is 68 ish and my GPU is 72 ish so not bad at all. All in all the case really is awesome, it sits horizontally and looks the part I now use my PC like a console and take it downstairs without any hassle.
Date published: 2016-02-13
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_4
  • loc_en_GB, sid_68494, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

Use of motherboard M.2 drive

If I have both 2.5" bays filled, would that obscure any significant parts of an X570 I AORUS PRO WIFI motherboard, for example preventing use of the M.2 slot for an SSD?
Asked by: W0y0jhgXnUWyayAPaeGLPQ
Filling the 2.5" drive bays will not obscure the motherboard at all. The bays are not above the motherboard.
Answered by: Mugwump
Date published: 2020-08-01

Probably an odd one

Hi Scan, This really is an odd one, but bare with me. So imagine the case is standing vertically. On the top of the 202 there is, what looks like a plastic grill. The questions I have are: - is this grill easily detachable or would it need some heavy handed action on it - what are the dimensions of this grill? I am trying to basically see if I could mount one or two 40mm fans in there to help with air flow. Any info you could share would be appreciated. Cheers Bart
Asked by: Bart404
I would not recommend it. Case fans can be fitted but mainly underneath the video card.
Answered by: Mugwump
Date published: 2020-08-01

Max drive dimensions

The tech spec says 2 x 2.5 bays but doesn't indicate the max vertical dimension. Will these take 3Tb, 4Tb and 5Tb drives, like the BaraCuda ones? I'm also assuming this doesn't affect any other expansion capability as the tech spec doesn't make any mention of it. Is that correct?
Asked by: W0y0jhgXnUWyayAPaeGLPQ
I fitted a 1Tb Seagate Baracuda drive and there were no problems. the larger capacity drives that you mention are the same dimensions.
Answered by: Mugwump
Date published: 2020-08-01
