Scan code: LN85051 Manufacturer code: FD-CA-DEF-R6-WT-TG

Fractal Define R6 White Tempered Glass PC Case

Fractal Design Define R6 Tempered Glass White, Mid Tower Computer Chassis, E-ATX/ATX/mATX/mITX, 3x 140mm Fans

Thumbnail 1 : Fractal Define R6 White Tempered Glass PC Case Thumbnail 2 : Fractal Define R6 White Tempered Glass PC Case Thumbnail 3 : Fractal Define R6 White Tempered Glass PC Case Thumbnail 4 : Fractal Define R6 White Tempered Glass PC Case Fractal Define R6 White Tempered Glass PC Case : video thumbnail 1
Scan code: LN85051 Manufacturer code: FD-CA-DEF-R6-WT-TG
£124.99
From £11.22 / month (APR 14.9%)
Monthly Payment: £21.69
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £124.99
Total inc. interest: £130.14
Monthly Payment: £11.22
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £124.99
Total inc. interest: £134.65
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 17th Oct 2019 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Define R6 White Edition Mid-Tower PC Case from Fractal Design

Fractal Design Define R6 White TG

NEXT-LEVEL SYSTEM VERSATILITY Enjoy the benefits of limitless system building with the Define R6 from Fractal Design. Finely crafted for expert versatility and innovation with a sleek, white finish, the R6 is the latest and largest step in the industry-leading Define series. It offers space for all the latest hardware, and ample space for your storage devices. Enjoy optimized cooling as the Define R6 has space for nine fans, radiators up to 420mm, and gives you ultimate control with a built in PWM fan hub. View your components through a clear tempered glass side panel, and enjoy quiet performance with the sound dampened panel on the other side. The Define R6 series uses Fractal Design's exclusive ModuVent technology, which lets you decide between a sound proofing top panel or a filtered vent top panel, so you can decide what you need to help improve your performance.

Customize the Inside and Outside of your Rig

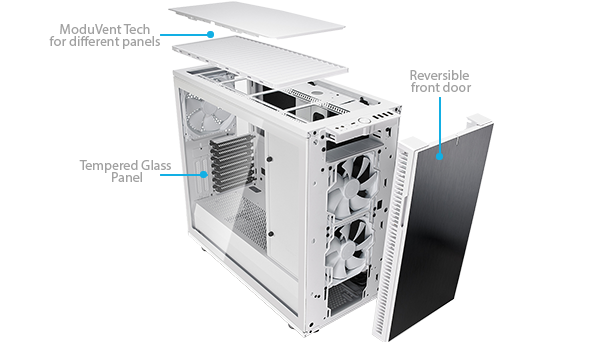

R6 design

UNLIMITED SYSTEM DESIGN The Define R6 has been designed with a crystal-clear, screwless, scratch-resistant tempered glass panel to provide you with ease of access and a perfect view of your system. It uses a reversible front door for easier access to the front panel, and provides a rock-solid build quality with high-density dampening to suppress unwanted noise inside your system. This next-level case also utilizes Fractal Design's exclusive ModuVent technology which provides you with the option to have a soundproof steel cover or filtered multi-fan ventilation in the top panel depending on what suits your needs.

Enjoy a Wealth of Versatile Cooling Solutions

fans

EXTENSIVE FAN LAYOUT WITH NEXUS+ HUB The Define R6 offers nine fan positions with an intuitive layout to create clear and direct airflow paths that offer unmatched cooling capacity. With 7 x 120/140mm spaces and 3 x 140mm fans included with the case. It also houses a Nexus+ Smart Hub, giving you superior control of six additional case fans and three extra PWM devices via your compatible motherboard.

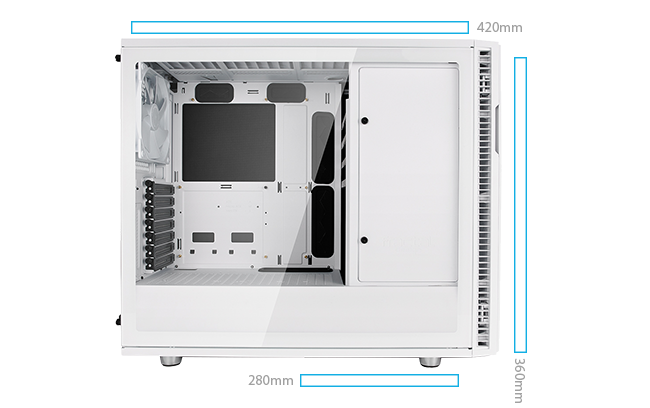

radiators

INNOVATIVE WATER COOLING SUPPORT Liquid cooling options offer incredible versatility with the Define R6, with support for radiators up to 420mm in the top, 360mm in the front and up to 280mm in the base of the chassis. The included Modular Storage Plate allows you to easily convert between the Standard Layout for maximum storage or the new Open Layout for superior water cooling and clear air flow paths.

Put your Graphics Card at the Heart of your System

gpu mounting

VERTICAL GPU MOUNTING The Define R6 offers a vertical 2.5 slot GPU mount to you can show off the true power of your graphics card. Compatible with the Fractal Design Flex VRC-25 PCIE x16 Vertical GPU Riser Kit, which offers great visibility and secure fastening.
*(Sold separately.)

Craft a Layout to Suit your Technology Needs

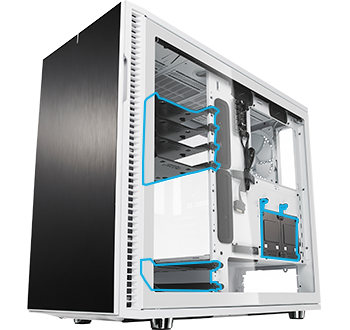

movable storage

INTUITIVE MODULAR INTERIOR OPTIONS Along with the Modular Storage Plate, the Define R6 offers an amazingly modular interior that includes six universal SSD/HDD trays that can be independently repositioned to suit your components, cooling and cable routing layout. Both the PSU shroud and MSP offer a multitude of mounting options.

Easily Upgrade your Connection Ports

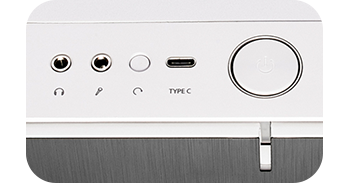

i/o upgrade kit

COMPATIBLE I/O UPGRADE KIT You can upgrade your Define R6 case with a Fractal Design Connect D1 USB 3.1 Gen 2 Type-C Upgrade Kit for your I/O panel. This allows you to acquire a Type-C USB port to give you ultra-fast file transfers and blazing-fast charging properties.
*(Sold separately & requires a compatible motherboard.)

Experience a Clean, High Airflow Interior

THREE DEDICATED DUST FILTERS Easy-to-clean, high airflow, nylon filters on the Define R6 ensure unwanted dust and dirt doesn't get into your system to keep it performing at it's best. Located on the front, top and base with full PSU coverage and convenient front access, always enjoy a tidy system inside and out that will optimize your performance.

top

top filter

front

front filter

bottom

base filter

Specifications
Core Chassis Specifications
Case Edition Define R6 Tempered Glass
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX (285mm Wide Max.)
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 2 x USB 2.0
  • 2 x USB 3.0
Drive Bays
  • 2 x 2.5" Internal
  • 6 x 2.5"/ 3.5" Internal
Standard Expansion Slots 7+2
Vertical Expansion Slots
Fans & Filters
Fan Bays 7 x 120/140mm
Fans Included 3 x 140mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280/360mm
Top Radiator Compatibility 1 x 120/140/240/280/360/420mm
Bottom Radiator Compatibility 1 x 120/140/240/280mm
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 185 mm
Max GPU Card Length 440 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length 300 mm
Chassis Physical Specifications
Colour White
Chassis Contruction Materials Sound-Dampened Steel / Clear Tempered Glass
Dimensions 233 x 448 x 535 (WxHxD mm)
Weight 12.4 kg (Approx)
Please Note
Additional Information
Scan Code LN85051
Model Number FD-CA-DEF-R6-WT-TG
GTIN 7350041085928
