Scan code: LN105556 Manufacturer code: FD-C-DEF7C-02

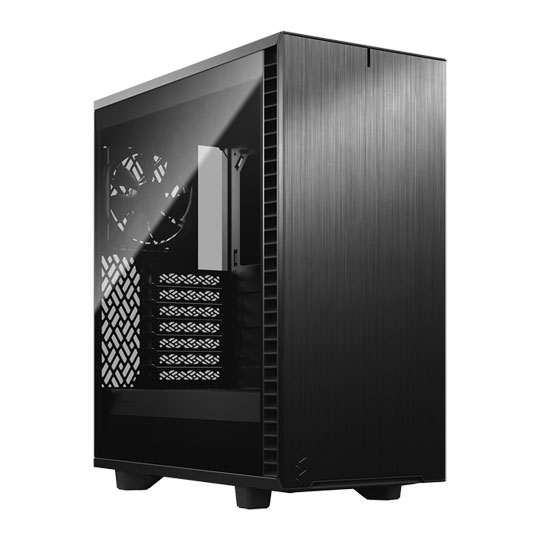

Fractal Design Define 7 Compact Mid Tower Windowed PC Case

Fractal Design Define 7 Compact, Mid Tower w/ Dark Tint Tempered Glass Window, 120/140mm Fan, USB 3.1 C, ATX/mATX/mITX

Thumbnail 1 : Fractal Design Define 7 Compact Mid Tower Windowed PC Case Thumbnail 2 : Fractal Design Define 7 Compact Mid Tower Windowed PC Case Thumbnail 3 : Fractal Design Define 7 Compact Mid Tower Windowed PC Case Thumbnail 4 : Fractal Design Define 7 Compact Mid Tower Windowed PC Case
Scan code: LN105556 Manufacturer code: FD-C-DEF7C-02
£99.98
Order now and get it tomorrow, Wed 15th Jul
From £8.98 / month (APR 14.9%)
Monthly Payment: £17.35
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £99.98
Total inc. interest: £104.09
Monthly Payment: £8.98
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £99.98
Total inc. interest: £107.69
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 16th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

Re-Defining Efficiency

The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.

Highly modular for its size, the Define 7 Compact is easily customisable to meet your exact needs – and the instantly removable top panel ensures an easy build, even with high-end components.


Interchangeability

Interchangeable top covers allow swapping between solid steel for full noise suppression or a ventilated cover for extra cooling.

The top framework is fully removable for unprecedented ease of access to interior components, and five front ports (including one USB Type-C) leverage exterior connectivity to make the most of the case’s compact footprint.


Minimalist

The space-efficient yet feature-rich design and timeless minimalist style of the Define 7 Compact makes it an easy choice for design-conscious PC builders seeking a silent case with excellent component support in a more manageable size.

Features
• Dark tinted tempered glass window.
• Compact yet spacious interior accommodates ATX, mATX and mITX motherboards.
• Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280mm front radiators with GPUs under 305mm.
• Support for two 2.5”/3.5” drives plus up to four SSDs (two SSD brackets included).
• Top panel effortlessly swaps from solid steel to filtered ventilation.
• New removable top panel design opens up to fully expose the case interior for effortless installation and cable routing.
• Silence-optimised construction with industrial sound-damped front, top, and side panels.
• Brushed aluminium front and top-latching side panels offer a clean sophisticated look.
• Install up to 7 x 120 mm or 4 x 140 mm fans (1 x 120 mm and 1 x 140 mm Dynamic X2 fans included).
• Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps.
• Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup.
• Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support.
• Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access.
• Integrated cable guides with Velcro straps further simplify cable management behind the board.
Specifications
Core Chassis Specifications
Case Edition Define 7 Compact Black TG Dark Tint
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x Power Button
  • 1 x Reset Button
  • 2 x USB 2.0
  • 2 x USB 3.0
  • 1 x USB 3.1 Gen2 Type-C
Drive Bays 2 x 2.5"/ 3.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays 7 x 120mm
Fans Included
  • 1 x 120mm
  • 1 x 140mm
Fan Controller/Hub
Dust Filters
  • Bottom
  • Front
  • Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 280/360mm
Top Radiator Compatibility 1 x 240mm
Bottom Radiator Compatibility 1 x 120mm
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 169 mm
Max GPU Card Length 341 mm
Cable Routing Space 17-28 mm
Side Panels
Window/s Yes
Window Configuration 1 x Main Side
Window Construction Tempered Glass (Tinted)
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Aluminium
Dimensions 210 x 474 x 427 (WxHxD mm)
Weight 8.61 kg (Approx)
Please Note
Additional Information
Scan Code LN105556
Model Number FD-C-DEF7C-02
GTIN 7340172702177
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
