Fractal Design Define 7 Black Dark Windowed Mid Tower PC Gaming Case

Fractal Design Define 7, Black, Mid Tower w/ Dark Tempered Glass, 3x 140mm Fans, USB 3.1 Type-C, E-ATX/ATX/mATX/mITX

Thumbnail 1 : Fractal Design Define 7 Black Dark Windowed Mid Tower PC Gaming Case Thumbnail 2 : Fractal Design Define 7 Black Dark Windowed Mid Tower PC Gaming Case Thumbnail 3 : Fractal Design Define 7 Black Dark Windowed Mid Tower PC Gaming Case Thumbnail 4 : Fractal Design Define 7 Black Dark Windowed Mid Tower PC Gaming Case
Scan code: LN103925 Manufacturer code: FD-C-DEF7A-03
£149.99
Order now and get it tomorrow, Tue 14th Jul
From £13.47 / month (APR 14.9%)
Monthly Payment: £26.03
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £149.99
Total inc. interest: £156.17
Monthly Payment: £13.47
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £149.99
Total inc. interest: £161.58
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 14th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Fractal Design Define 7 Dark Windowed Black Gaming PC Case

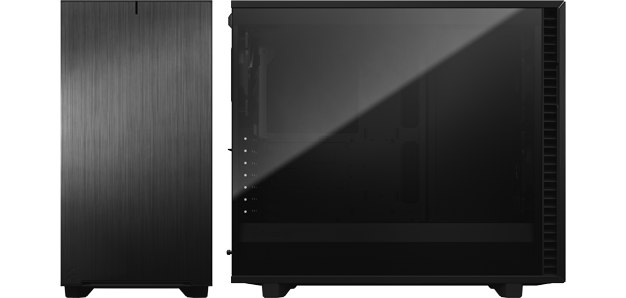

Define 7 Mid Tower Gaming PC Case in Black with Full Dark Tint tempered glass Left Panel

Re-defining VersatilityThe Define 7 is the pinnacle of the renowned Define series from Fractal Designs, bringing a whole new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease-of-use. Boasting a dual-layout interior industrial sound damping and classic clean styling with this version boasting a full dark tempered glass side-panel make this case an easy choice for design-conscious PC builders who wish to show off their system and that are in need of a versatile and dependable case that accommodates ambitious builds and still leaves you room to grow.

Limited only by your Imagination

Dual Layout Design

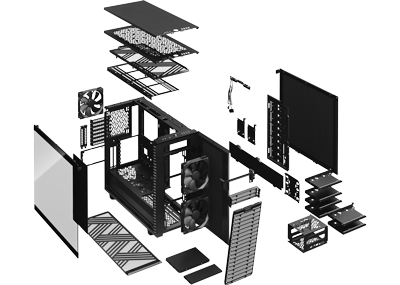

Heavily Optimised Modular Dual Layout Design Fractal Designs have been back to the drawing-board with the define 7, reaching all new heights with a new dual layout design featuring a new top & front panel design, tool-less push-to-lock top latching side panels and a new filtration system, switch between open layout and storage layout depending on your needs freeing up space for greater cooling/greater storage. take advantage of the ultra slim Nexus 2+ fan hub and connect up to three PWM fans and six 3-pin fans and use the extensive cable management along the edge of the case to keep things neat and tidy.

Exterior Overview

Interchangeable Top Panel

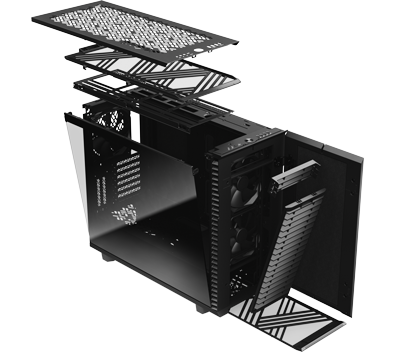

New Milestone in top panel design The all new top panel design for the define 7 allows the top cover and cooling bracket to be completely removed to give you complete open access to both sides of the board from almost any angle, this amazing feature has also been improved with the inclusion of an interchangeable top cover that has been made far less complex than previous generations by removing all moving parts and plastic inserts to give you more durable and easy to install one-part steel covers, you can now simply pull to remove the solid sound damped cover and replace it with the included ventilated panel for additional cooling support.

Re-designed Industrial Steel Front Panel

Re-Defined Front Panel All new annodised aluminium cover curves to wrap panel edges and give the define 7 a smoother front profile. The front panel now houses hinges with magnetic latching that makes the process of opening and closing the panel much easier and an easy to use reversible hinge has been added to ensure changing the door can be done efficiently and easily. Finally the ODD bracket can be removed, flipped and reinstalled to extend fan rails all the way to the top to provide room for the installation of 3x140mm front fans.

Complete I/O with USB TYPE-C

Robust Front I/OThe front panel I/O has had an upgrade too for your convenience including a total of 5 USB ports consisting of, 1x USB 3.1 Gen 2 Type-C with fast charging and transfer speeds up to 10Gbps, 2x USB 3.0 ports and 2x USB 2.0, Fractal have ensured you will always have space to plug in those peripherals.

Take a Peek Inside

preinstalled Dynamic X2 GP-14 fan

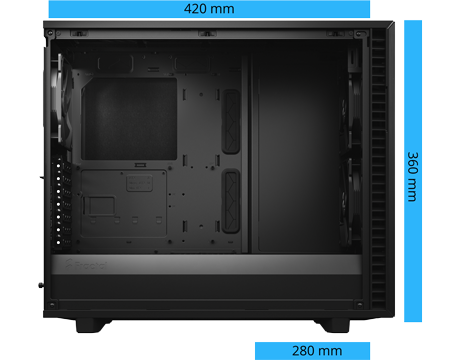

Superb airflow and cooling options The Define 7 Mid Tower includes three dynamic X2 140mm fans, ensuring optimal airflow via two intake fans and a single exhaust, with a total of nine fan positions for 120/140mm fans numerous airflow paths are available and for those of you that prefer to water cool, the Define 7 has you covered with radiator support up to 360mm in the front, 420mm in the top and 280mm in the base depending on whether or not the optical disk drive is installed, The removable PSU shroud inlays act as a pump/reservoir/drive mount using the included multi-bracket or can be removed to free up additional space at the front for large radiators.

Expandable Storage

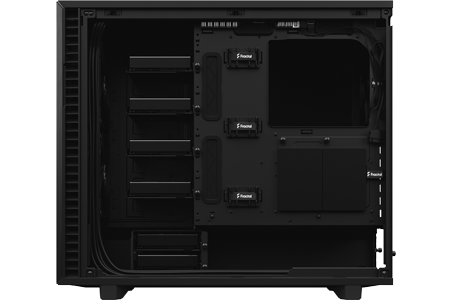

Multitude of Storage options Part of the brilliance of having a modular open layout system is the amount of mounting options available to you and for storage Fractal Designs haven't held back with a whopping 6x 3.5"/2.5" expandable up to 14! 2x 2.5" dedicated SSD mounts expandable up to 4! and 1x 5.25" Drive bay, the ball really is in your court when it comes to storage options. The trays Fractal Designs have used are sturdy steel trays fitted with vibration-damping grommets and a new universal multi-bracket enables you to convert any standard 120mm fan position to a HDD/SDD, Pump or reservoir mount, build it your way.

Easy Cable Management

Clean Cable ManagementFractal Designs have put large amounts of work into an effective cable management system for the Define 7, a detachable PSU cable helps to conceal excess cables under the shroud itself, there are integrated cable guides to make routing cables much simpler and cleaner there are 5 fractal branded velcro straps and a massive additional 16 tie-down locations, with a total of 30mm cable routing space and sleeved front I/O wiring keeping this case neat and tidy is a seamless process.

Easy Cleaning and Maintenance

Nylon Filters

take pride in your buildDefine 7 makes maintenance of your PC fun, efficient and simple with high airflow nylon filters integrated on the front, top, and base with full PSU coverage and front access for easy-to-clean convenience. Even if you decided to switch out your industrial sound damping steel top panel with the included ventilated panel, this is filtered also to reduce the chance of particulates making it into your case and with the new chassis design opening up to full expose the case interior there really is no excuse for not keeping the Define 7 Clean.

Specifications
Core Chassis Specifications
Case Edition Define 7
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX (285mm Wide Max.)
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x Power Button
  • 1 x Reset Button
  • 2 x USB 2.0
  • 2 x USB 3.0
  • 1 x USB 3.2 Gen2 Type-C
Drive Bays
  • 2 x 2.5" Internal
  • 2 x 2.5" Internal (Optional)
  • 6 x 2.5"/ 3.5" Internal
  • 8 x 2.5"/ 3.5" Internal (Optional)
  • 1 x 5.25" External (Hidden, Optional)
Standard Expansion Slots 7
Vertical Expansion Slots 2
Fans & Filters
Fan Bays 9 x 120/140mm
Fans Included 3 x 140mm
Fan Controller/Hub
Dust Filters
  • Bottom
  • Front
  • Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280/360mm
Top Radiator Compatibility 1 x 120/140/240/280/360/420mm
Bottom Radiator Compatibility 1 x 120/140/240/280mm
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 185 mm
Max GPU Card Length 491 (467 w/ Front Fan, 315 w/ Optional HDD Cage) mm
Cable Routing Space 30 mm
Side Panels
Window/s Yes
Window Configuration 1 x Main Side
Window Construction Tempered Glass (Tinted)
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 250 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials
Dimensions 240 x 475 x 547 (WxHxD mm)
Weight 13.45 kg (Approx)
Please Note
Additional Information
Scan Code LN103925
Model Number FD-C-DEF7A-03
GTIN 7340172702214
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.

Reviews
Fractal Design Define 7, Black, Mid Tower w/ Dark Tempered Glass, 3x 140mm Fans, USB 3.1 Type-C, E-ATX/ATX/mATX/mITX is rated 4.0 out of 5 by 1.
Rated 4 out of 5 by from Great case but I really hope they release a mesh front The case is amazingly well built and versatile. My only complaint is the thick plastic slats over mesh at the front, behind the door. If this were less excessive it would probably be one of the best airflow cases around, with the door open. One other minor issue is that I have a 360mm radiator at the front, and due to the ends of the radiator protruding past the fan casings, it is not possible to use the top screw mounts (they sit a bit high, past the optical drive mount). It's not a big issue though, as I just screw the top fan with smaller screws and the radiator is well supported below. I'd definitely recommend this case due to the ease of removing panels and the overall quality feel.
