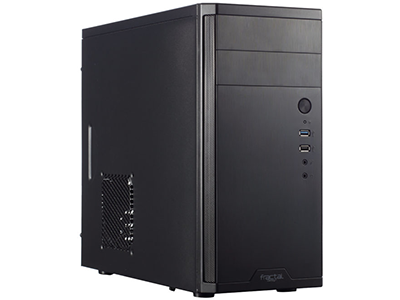

Fractal Design Core 1100 Micro-ATX Mini Tower Case

Fractal Design Core 1100 micro-ATX Mini Tower Case w/o PSU (Std ATX)

Thumbnail 1 : Fractal Design Core 1100 Micro-ATX Mini Tower Case Thumbnail 2 : Fractal Design Core 1100 Micro-ATX Mini Tower Case Thumbnail 3 : Fractal Design Core 1100 Micro-ATX Mini Tower Case Thumbnail 4 : Fractal Design Core 1100 Micro-ATX Mini Tower Case
Scan code: LN58749 Manufacturer code: FD-CA-CORE-1100-BL
3xs Approved
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 20th Mar 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview Despite its extremely small outer dimensions, the Core 1100 mATX case provides everything you need. The stylish, Scandinavian exterior design is matched by the fully painted interior, complete with the signature white details of Fractal Design. The case is optimized for airflow with a straight cooling path, and comes equipped with a pre-installed 120mm fan. The front panel is equipped with dust filters. An innovative vertical hard drive bracket can fit either two 3.5" drives, three 2.5" drives, or one drive of each size. Both the 3.5" drive slots come with silicone vibration dampening grommets.
Features • An extremely compact micro ATX case, designed for exceptional airflow and cooling.
• Brushed aluminum-look front panel with a sleek, three-dimensional textured finish.
• One Fractal Design 120mm fans included.
• Easy access I/O on front panel, with audio and both USB 3.0 and USB 2.0 ports.
• Front panel dust filters and closed top and bottom panels help maintaining a dust free interior.

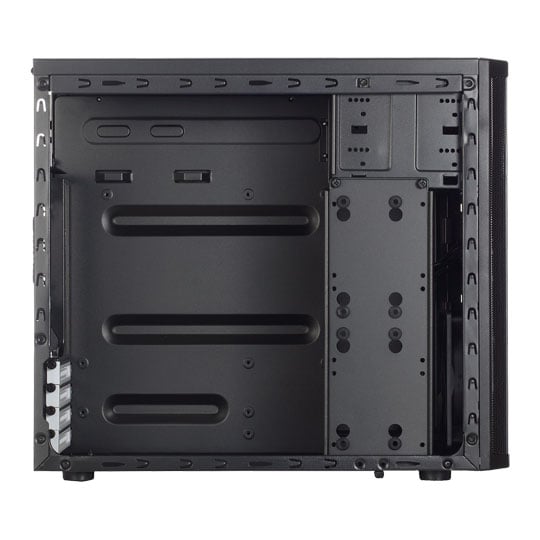

• Innovative vertical HDD bracket, which can hold two 3.5" drives or three 2.5" drives, or one drive of each size.
• Vibration-dampened mounting for both 3.5" drive slots.
• Fully painted interior, with Fractal Design signature white details.
Core Chassis Specifications
Case Edition Core 1100
Case Form Factor Mini Tower
Motherboard Form Factor
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x HDD Activity LED
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x Power Button with LED
  • 1 x USB 2.0
  • 1 x USB 3.0
Drive Bays
  • 1 x 2.5" Internal (Optional)
  • 2 x 2.5"/ 3.5" Internal
  • 2 x 5.25" External
Standard Expansion Slots 4
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 2 x 120mm
  • 1 x 92mm
Fans Included 1 x 120mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Max CPU Cooler Height 148 mm
Max GPU Card Length 170/350 mm
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length 185 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Metal / Plastic
Dimensions 175 x 358 x 410 (WxHxD mm)
Weight 3.8 kg (Approx)
Please Note

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
14 days
RTB Period:
24 months
Manufacturer Contact Details
Scan Computers
0871 472 4747
Loading Please Wait

Please wait . . .

Fractal Design Core 1100 micro-ATX Mini Tower Case w/o PSU (Std ATX) is rated 4.2 out of 5 by 5.
Rated 4 out of 5 by from Nice Economy case This is a very good-looking fairly compact economy case. With the supplied fan, and a standard Intel cooler on a 65W CPU, it's also nicely quiet. Great value for money, though I'd not be keen on trying to install an internal 5.25 inch drive. Ignore the instructions. If yours comes with the front fan pre-installed as per Scan descriotion (and mine did) there's absolutely no reason to remove the front panel. If you are installing only 2.5 inch disks or SSDs there is no reason to remove the hard drive bracket either, though that's much easier to do. Also note that the wire for the fan is separate from the other wires and if you do not make it accessible before installing the motherboard and CPU, it's a pain. It's made of rather thin steel which makes it light in weight (good) but perhaps vulnerable to damage if it gets banged around in a packing crate during a move. All minor points. Great value for money. No sharp edges that I found (i.e. no blood shed assembling my system)
Date published: 2018-06-12
Rated 3 out of 5 by from Not as described / pictured... Case isn't bad for the price, but the one I received didn't have the front fan fitted as per description. Also the pictures show the case to have the Fractal Design logo on the front bottom. The one I got was just blank here. I spoke to the Scan customer services but they said the photos were just representative - sounded a bit fishy to me... So in summary, if the logo and fan are important to you, it might be better to look at another supplier.
Date published: 2017-12-26
Rated 5 out of 5 by from Good economy case. The case is very good but: 1. The 120mm front intake fan was pre-installed the wrong way round so it was acting as an exhaust fan! 2. FD say to fit the top mounted psu first but I found that it gets in the way, For what its worth I found this the best order: With motherboard on a flat surface: fit the power leads from the psu to the motherboard (they are a tight fit) and then cpu and cooler. Next fit the motherboard. Now fit the psu, then everything else. 3. The FD 120mm fan and the rear FD 92mm fan I added are quiet. Overall a nice cheap case,
Date published: 2015-08-13
Rated 4 out of 5 by from Nice basic case Used this case for a budget AMD APU based build - not as high quality as the higher end Fractal cases but at the price it's a bargain. Nice design makes it easy to build in although there's a lack of cable tie downs which wasn't a huge problem for me - with the single 120mm supplied fan and running an AMD A6 cpu with the stock cooler the machine is VERY quiet - would I buy another one? Definately.
Date published: 2015-04-17
Rated 5 out of 5 by from Nice Suprise Got one of these last minute for a friend's PC. The Core 1000 was out of stock and the chap at scan suggested this instead. The internal layout is exactly the same as the 1000, but it has two narrow vent slots down each front corner instead of a wide open filtered front intake. Noise IS slightly lower than in the 1000 (used previously), and with fractal's usual build quality - Would happily recommend.
Date published: 2014-09-25
