Scan code: LN50684 Manufacturer code: FD-CA-ARC-R2-BL-W

Fractal Design ARC R2 Tower Case

Fractal Design ARC Midi R2 Black Mid Tower Quiet Performance Case with Side Window USB 3.0 w/o PSU

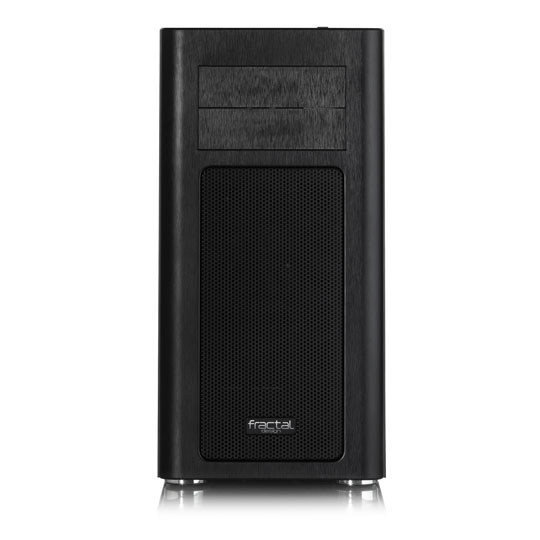

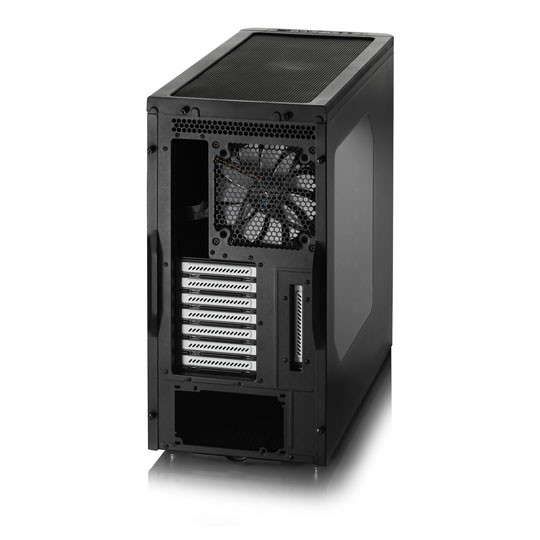

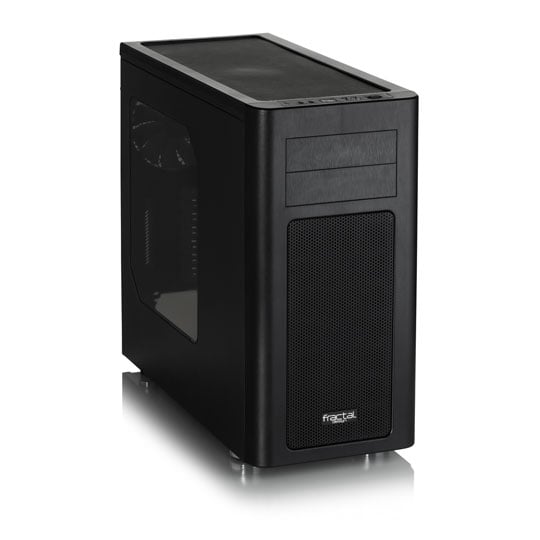

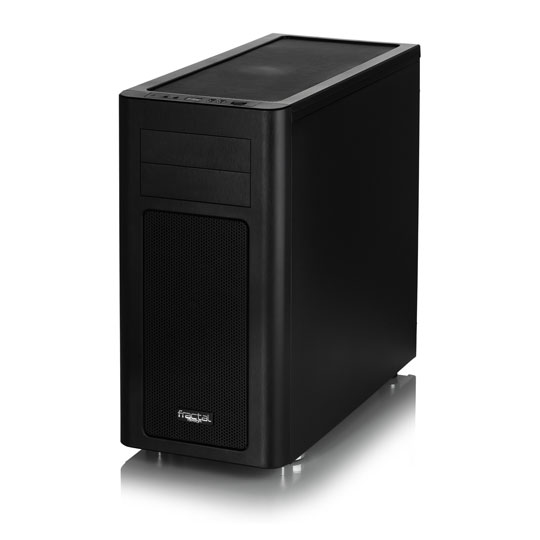

Thumbnail 1 : Fractal Design ARC R2 Tower Case Thumbnail 2 : Fractal Design ARC R2 Tower Case Thumbnail 3 : Fractal Design ARC R2 Tower Case Thumbnail 4 : Fractal Design ARC R2 Tower Case
Scan code: LN50684 Manufacturer code: FD-CA-ARC-R2-BL-W
review 3xs Approved
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd Jun 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview The Arc Midi R2 is developed with high-performance computer systems in mind. Featuring three high performance Silent Series R2 fans and ample water cooling options, the Arc Midi R2 layout maximizes airflow throughout the case and keeps even the most demanding systems at cool temperatures. Designed to house even the thickest radiators in both the top and front panels without extensive modifications, the Arc Midi R2 offers all this within a mid size case.

The chassis comes complete with a stylish window side panel, fan controller, easy to clean dust filters, high level of workmanship, flexible hard drive mounting system and plenty of space for cable routing.

Front: 2 - 120/140mm fans (included is one hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed)
Rear: 1 - 120/140mm fan (included is a hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed)
Top: 3 - 120/140mm fans (included is one hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed)
Bottom: 1 - 120/140mm fan (not included)
Fan controller: 1 - Integrated fan controller for up to 3 fans (included)
Water cooling compatibility:
Front – 240 mm radiators (thick and slim) when HDD cages are repositioned or removed
Top – 240 mm radiators (thick and slim)
Bottom – 120mm radiators
Rear – 120mm radiators
Features • Designed with high airflow in mind while consistently holding a minimalistic, sleek look and feel
• Featuring a window side panel to show off your set up in style
• Extensive water cooling support, designed to support thick radiators in the front and top positions
• Three Silent Series R2 fans with integrated fan controller included
• HDD cages are now split 5 + 3 and are both rotatable and removable for maximum configuration and airflow
• Support for up to 8 hard drive bays with accommodation for an additional 2 x 2,5” inch drives behind the motherboard
• Easy installation and configuration with ample cable routing space making it simple for everyone to make a very tidy looking computer build
• Removable fan filters for easy dust maintenance and washing
Core Chassis Specifications
Case Edition Arc Midi R2
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone
  • 1 x Mic In
  • 1 x Power On/Off button
  • 2 x USB 3.0
Drive Bays
  • 2 x 2.5" Internal
  • 8 x 3.5" Internal
  • 2 x 5.25" External
Standard Expansion Slots
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 4 x 120/140mm
  • 3 x 140mm
Fans Included 3 x 140mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Max CPU Cooler Height
Max GPU Card Length
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials
Dimensions 230 x 460 x 515 (WxHxD mm)
Weight 10.7 kg (Approx)
Please Note

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Customers also bought
Fractal Design ARC Midi R2 Black Mid Tower Quiet Performance Case with Side Window USB 3.0 w/o PSU is rated 4.8 out of 5 by 16.
Rated 4 out of 5 by from Only one issue This is an excellent case. This is my second Fractal Design chassis and will not be my last. The only reason it lost a star is that the dimensions do not appear to include the feet. Not normally an issue unless like me it was purchased to fit in a desk cupboard.
Date published: 2016-08-10
Rated 5 out of 5 by from Great case This is a great case and can be many things, to different people. Its great for a simple built with lots of nice airflow through the case and for those wanting to overclock and push their components for that extra performance it offers great watercooling potential with lots of space for all the necessary equipment. Well made and easy to access the internals. I had the small version of this case and didnt think twice about upgrading to the Midi.
Date published: 2016-03-29
Rated 5 out of 5 by from nice size mid tower case. excellent quality case with top cooling will fit a cpu cooler up to 180mm tall.nice upgrade potential.all the filters to keep your pc dust free.bought some nanoxia case fans really quite fans.cpu fx 8350 with thermalright macho 120 rev a cooler now idles at 8c.should last me a few more pc builds
Date published: 2015-08-30
Rated 5 out of 5 by from Perfect.... Living through a time when all the air for cooling was drawn through the front fans....with no doors etc to slow down the flow....this stunning looking case holds all the keys to a quiet and roomy system....with air flow in abubdance....for the fans are adjustable and the way of cleaning them is simplicity....but the most important is the build and just like a foundation of a house this is spot on....bringing quality products together so we the customer can enjoy what is on offer....I cannot find a fault so will sum my experience so far has perfect....
Date published: 2015-06-30
Rated 5 out of 5 by from Complete.... I have just aquired this when purchasing a 3XS system and was very impressed with the high quality on offer....through my eyes she is a real looker and very cool and quiet with the white fans spinning....the side windows adds some charm and the weight was twice as heavy as my old to sum this case up....she holds great looks with plenty of options for the thank you Scott for making her look so nice inside....
Date published: 2015-06-11
Rated 5 out of 5 by from Great case for DIY builders Case came completely, void of any damages/defects. Very sturdy side panels even the side with the window. Was slightly heavier than expected but that's a minor niggle. Had plenty of room for cable routing and tons of air flow opportunities, I chose a watercooled solution with a H100i and it fit with no issues although not certain a push-pull would work without lower profile fans. (Haven't tried it though!) Build came together extremely well and easy whether new builder or just doing it at home definitely recommend this case.
Date published: 2014-10-19
Rated 4 out of 5 by from Good looks, nice wind, plenty of space This is a nice, standard case. Fairly nice design, would definitely look good with lights inside (with that big old window). It was wider than I was expecting, but otherwise a well sized package. Compact enough to not take up half the desk and for the parts to be snug inside, but large enough to get your fambles in while building. Good cable routing options in the back plate & enough anchor points on the reverse. Building another rig for my brother soon, will probably get another one of these cases.
Date published: 2014-10-07
Rated 5 out of 5 by from Very Good Case Very good airflow, easy cable management, plenty of expansion room. It is also fairly quiet, and easy to clean filters. Keeps my system cooler than my old Antec P183, temps down by about 10c. I would have preferred if this case didn't have the window, ( would rather have had space for a side fan like the original Midi 2), but it does the job well. Easy to recommend to anyone.
Date published: 2014-05-21
