New
Scan code: LN125290 Manufacturer code: FD-C-DEF7N-01

Fractal Design Define 7 Nano Mini ITX Black Solid PC Case

Fractal Define 7 Nano Solid, Black, 1x 120/ 1x 140 Fans, USB 3.1 Gen2 Type-C, mITX/mDTX

Thumbnail 1 : Fractal Design Define 7 Nano Mini ITX Black Solid PC Case Thumbnail 2 : Fractal Design Define 7 Nano Mini ITX Black Solid PC Case Thumbnail 3 : Fractal Design Define 7 Nano Mini ITX Black Solid PC Case Thumbnail 4 : Fractal Design Define 7 Nano Mini ITX Black Solid PC Case
Scan code: LN125290 Manufacturer code: FD-C-DEF7N-01
Order now and receive it by Friday, 19th August
£104.99
Get it Friday, 19 AugIn stock
From £9.21 / month (APR 9.9%) or 0% for 4 months
Monthly Payment: £9.21
Instalment Rate: 9.9% p.a. (fixed)
Cost of purchase: £104.99
Total inc. interest: £110.43
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 19th Aug to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Fractal Design Define 7 NANO Solid Black SFF Gaming Chassis

Define 7 NANO SB SFF Gaming PC Case

Same Brilliance, Smaller FormMeet The Define 7 Nano, offering many of the same features of its larger siblings in a smaller form factor. The open-air spacious interior accommodates Mini-ITX and Mini-DTX motherboards whilst also affording the capability of housing a GPU up to 306mm with a 25mm thick front fan. The Define 7 Nano is perfect for builders or enthusiasts that are searching for a smaller, more elegant chassis that is serious about component support and silent operation. Capable of hosting four drives, either a solid-steel or airflow optimised top-panel and up to six fans (6x120 / 3x 140 with 1x120 and 1x140 fans included) ensures the Define 7 Nano has the capable to push the boundaries of modern performance. Trust in Fractal.

Time To Free Up Some Real Estate

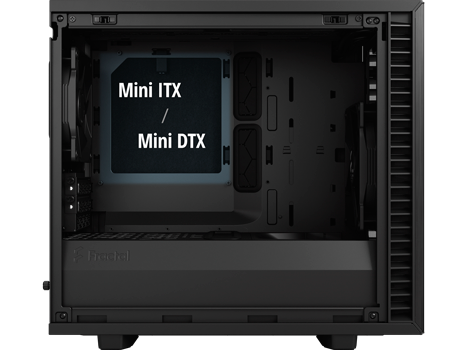

Smaller Form Factor

Mini-ITX or Mini-DTXThe compact yet spacious interior of the Define 7 Nano is the perfect size to accommodate any Mini-ITX motherboards, allowing users to experience the same stunning performance without taking up masses of space.

Maximum Component Compatibility

Choose Your Top PanelPlenty options for the removable top panel, choose between sound dampened steel for silent running or go with filtered ventilation for improved airflow.

Upto Four drivesFlexible storage options, supporting one 3.5" drive and three 2.5" drives

Easy Access and MaintenanceEasy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access.

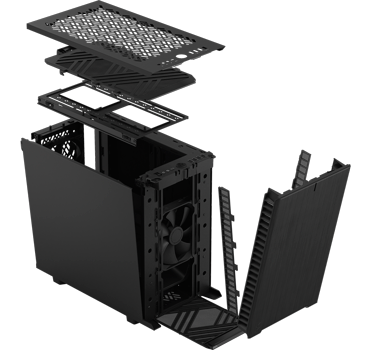

Burst Shot

up to Six fansInstall up to 6x 120 mm or 3x 140 mm fans (1x 120 mm and 1x 140 mm Dynamic X2 fans included).

Size Up Your GPURoom for a GPU up to 306 mm with a 25 mm front fan.

Maximum AirflowVentilated PSU shroud with two-part modular air duct for increased GPU airflow and radiator support.

Specifications
Core Chassis Specifications
Case Edition Define 7 Nano
Case Form Factor Mini-ITX
Motherboard Form Factor
  • Mini-DTX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1 x Mic In
  • 2 x USB 2.0
  • 2 x USB 3.0
  • 1 x USB 3.1 Gen2 Type-C
Drive Bays
  • 3 x 2.5" Internal
  • 1 x 3.5" Internal
Standard Expansion Slots 2
Vertical Expansion Slots
Fans & Filters
Fan Bays 6 x 120mm / 3x 140mm
Fans Included
  • 1 x 120mm
  • 1 x 140mm
Fan Controller/Hub
Dust Filters
  • Bottom
  • Front
  • PSU
  • Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280mm
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 167 mm
Max GPU Card Length 331 without front fan mm
Cable Routing Space 15-25 mm mm
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length 165 mm
Chassis Physical Specifications
Colour Black
Chassis Construction Materials
Dimensions 205 x 361 x 399 (WxHxD mm)
Weight 7.2 kg (Approx)
Please Note
Additional Information
Scan Code LN125290
Model Number FD-C-DEF7N-01
GTIN 7340172702832
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Fractal Design
