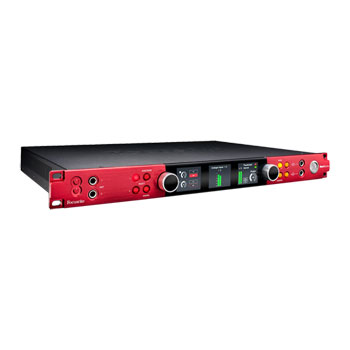

Focusrite Red 8Line 58x64 All-In-One Interface

Focusrite - Red 8Line 58 In/64 Out Thunderbolt 3 and Pro Tools|HD Interface with Dante

Thumbnail 1 : Focusrite Red 8Line 58x64 All-In-One Interface Thumbnail 2 : Focusrite Red 8Line 58x64 All-In-One Interface Thumbnail 3 : Focusrite Red 8Line 58x64 All-In-One Interface Thumbnail 4 : Focusrite Red 8Line 58x64 All-In-One Interface
Scan code: LN144407 Manufacturer code: MORE0009UKEU
Order now and get it tomorrow, Tue 23rd Jul
£2,599.00
Get it Tomorrow, 23 JulIn stock
FREE DELIVERY ON YOUR ENTIRE BASKET
From £73.28 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £235.47
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £2,599.00
Total inc. interest: £2,825.52
Monthly Payment: £126.91
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £2,599.00
Total inc. interest: £3,045.65
Monthly Payment: £91.01
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £2,599.00
Total inc. interest: £3,276.37
Monthly Payment: £73.28
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £2,599.00
Total inc. interest: £3,517.42
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £69.06 / month (APR 19.9%)
Delivery Options
  • By DPD On 23rd Jul to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

58x64 All-In-One Interface
Focusrite - Red 8Line


Focusrite Red 8Line

Extremely high-quality audio conversionThe Focusrite Red 8Line features a total of 58 inputs and 64 outputs, including two Red Evolution mic pres, independent L/R monitor outs, eight balanced line inputs and outputs on DB25 connectors; 32 channels of Dante I/O; 16-channel ADAT input and output (at 48kHz), and stereo S/PDIF input and output. Just like other Red interfaces, it has professional-grade 24-bit/192kHz A-D and D-A conversion for no-compromise, mastering-quality recording and audio playback. With 119dB dynamic range A-D and 121dB dynamic range D-A (A-Weighted), the converters have been expertly chosen and calibrated by Focusrite to offer the best balance of sound quality, dynamic range and conversion latency.

The two digitally-controlled Red Evolution mic preamps are the result of decades of Focusrite's outstanding attention to detail in designing audio hardware. Each preamp provides up to 63dB of ultra-clean gain, with individual phantom power, high-pass filter and phase reverse, and an option to stereo-link the two channels. The switchable Air mode mimics the sonic profile of the well-known Focusrite ISA 110 input module, and adds life into any signal it touches.

The Focusrite Red Range is the best choice for professionals who work in Pro Tools | HD and other DAWs - on both Mac and PC. With both mini-DigiLink and Thunderbolt 3 connections, you can instantly switch between Pro Tools | HD and other DAWs without the need to reconfigure your audio settings. Simply change the host mode either in RedNet Control software, or using the front panel, to change DAWs in seconds. This ability to quickly switch between production environments means you'll never lose that moment of inspiration, or leave anyone waiting.

2Mic Preamps

24-bit/192kHzA/D Resolution

58 x 64I/O

Amazing features • Two Red Evolution remote-controllable mic preamps
• Latest implementation of Thunderbolt 3
• Pro Tools | HD and Dante connectivity as standard
• Dedicated L/R monitor outputs and comprehensive control
• Extensive analogue I/O
• Precision metering and display
• Complete software/hardware control environment
• Dual headphone outputs
• Dual front-panel instrument inputs
• Windows 10 compatibility
• Focusrite software bundle

Seamless Multi-Platform Workflow

Focusrite Red 8Line

ultra-low-latencyRed 8Line features the latest addition of Thunderbolt 3, with Focusrite's session-proven, ultra-low-latency, rock-solid Thunderbolt drivers. This speed provides the flexibility to use DAW plug-ins in real time, so you can harness the processing power of your DAW to track through plug-ins and record virtual instruments. With two Thunderbolt 3 ports as standard, you can also daisy-chain Thunderbolt devices, such as third-party plug-in accelerators, hard drives, external 4K displays, processing units and Thunderbolt hubs.

Along with Thunderbolt 3 and Pro Tools HD connectivity, the on-board Dante connection enables Red 8Line to communicate with industry-standard Audio-over-IP equipment from hundreds of manufacturers. Dante makes it easy to expand your system, enjoy new ways of working, and discover rapid system expansion using Focusrite RedNet interfaces or devices from third parties such as Neve, Yamaha and DigiCo.

Red 8Line has built-in monitor control for mono, stereo and multi-channel monitoring environments up to 7.1. Compatibility with the Focusrite RedNet R1 desktop remote controller allows even more flexibility, and customised presents for immersive monitoring environments including Dolby Atmos®.

Loud And Clear

Focusrite Red 8Line

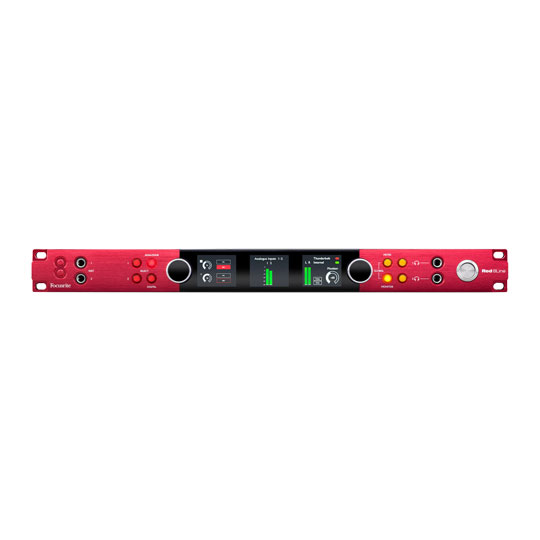

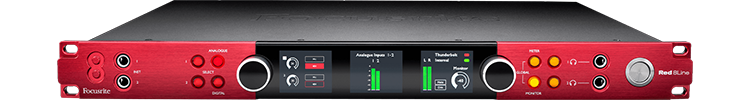

highly-accurate level meteringOther features of the Red 8Line include precision metering and display: the interface has three LCD displays for highly-accurate level metering for any input or output block, as well as main monitor and headphone outputs. Two discrete high-fidelity headphone outputs are powerful enough to deliver loud and clear audio on high-impedance headphones, and are controlled from the interface front panel. Dual instrument inputs on the front panel ensure you always have immediate access to quickly plug in a guitar, for example, even when racked.

The RedNet Control 2 is a software mixer with a hardware-focussed workflow, which is designed to allow quick setup of both simple and complex monitoring and routing configurations, together with controlling Red Evolution preamps remotely. This allows tighter integration with RedNet equipment over Dante.

Red 8Line comes with a bundle of software that celebrates Focusrite's legacy and brings the classic Focusrite sound to your DAW. Brainworx bx_console Focusrite SC is a plug-in for Mac and PC the faithfully captures the sound, feel and styling of the original Focusrite Studio Console. Red 2 and Red 3 EQ and Compression plug-ins are AAX/AU/VST-compatible recreations of the original and much-loved Red Range analogue hardware, which is still relied on heavily in professional studios today.

Red 8Line // Focusrite Pro

The Tech Spec

Features Specification
Computer Connectivity Thunderbolt 3
Form Factor Rackmount
Simultaneous I/O 58 x 64
A/D Resolution 24-bit/192kHz
Number of Preamps 2 x mic
Phantom Power Yes

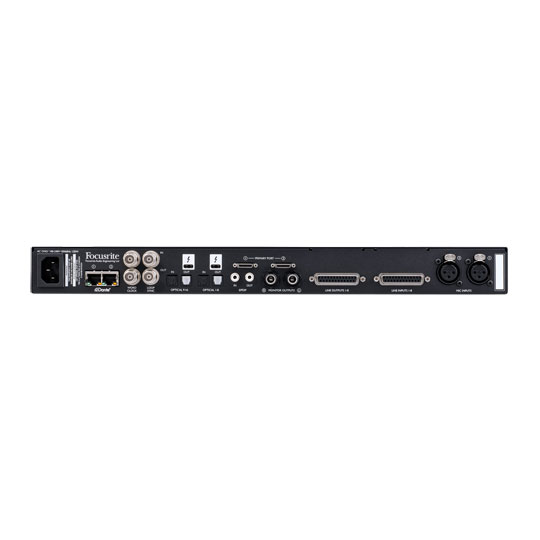

Analogue Inputs 2 x 1/4", 2 x XLR (mic), 1 x DB-25 (line)
Analogue Outputs 2 x 1/4" (monitor), 1 x DB-25 (line)
Digital Inputs 2 x Optical Toslink (ADAT), 1 x Coax (S/PDIF)
Digital Outputs 2 x Optical Toslink (ADAT), 1 x Coax (S/PDIF)
Headphones 2 x 1/4" TRS (stereo)
Thunderbolt 2 x Thunderbolt 3
Data I/O 2 x Ethernet (Dante)
Network Dante, RedNet
Other I/O 2 x Mini DigiLink
Clock I/O In/Out (word clock), In/Out (loop sync)
OS Requirements - Mac macOS 10.12 or later
OS Requirements - PC Windows 10 or later
Rack Spaces 1U
Power Supply Standard IEC AC cable
Dimensions Width: 19"
Height: 1.73"
Depth: 13.4"
Weight 10.67 lbs.
Specifications
Computer Interface Type Thunderbolt
Connections (Input)
  • 2 x 6.35mm (1/4") Instrument
  • 1 x DB-25 / 25 Pin D-Sub - Analogue
  • 2 x XLR
Mic Preamps (Max) 2
Instrument Inputs (Max) 2
Phantom Power Yes
Sample Rate (Max) 192 kHz
Bit Resolution 24
iPad Compatible No
Connections (Output)
  • 2 x 6.35mm (1/4") TRS Jack
  • 1 x DB-25 / 25 Pin D-Sub - Analogue
Dimensions (mm) 482.6 x 43.942 x 340 WxHxD
DSP Processing No
Misc. Notes
Additional Information
Scan Code LN144407
Model Number MORE0009UKEU
GTIN 815301001324
