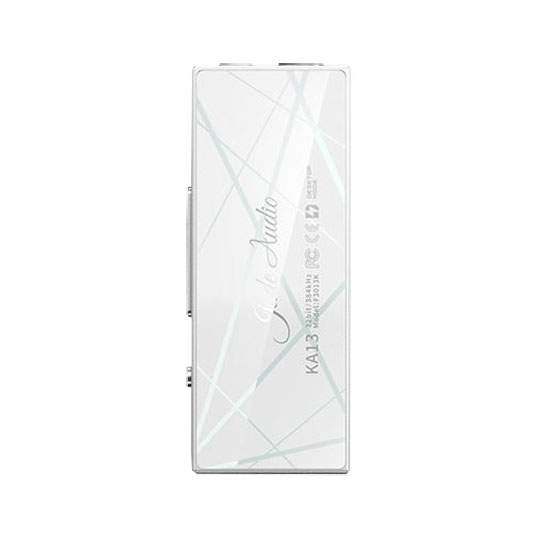

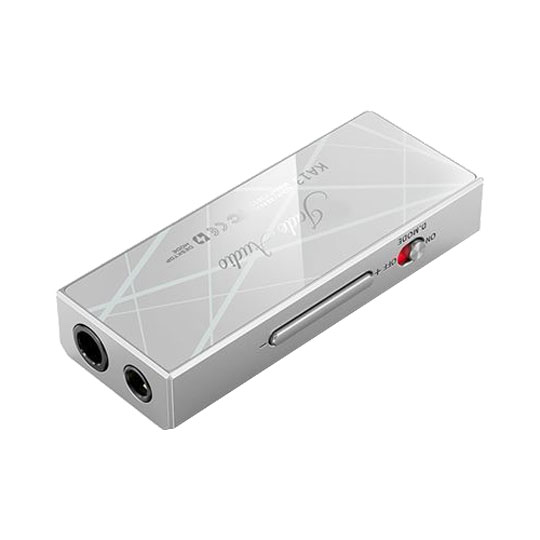

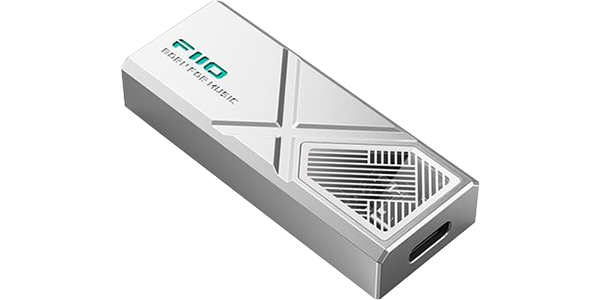

FiiO KA13 Portable Dual DAC AMP with 3.5mm/4.4mm Outputs - Silver
FiiO - KA13 Portable Dual DAC AMP with 3.5mm/4.4mm Outputs, PCM 384kHz/32bit and DSD256 - Silver
- SCANPROTECT Protect against installation damage for 28 days. More info
Portable Dual DAC AMP
FiiO - KA13
(Silver)
Compact desktop amp with 550mW output powerThe FIIO KA13 mini desktop amp features a desktop mode that allows the amp to unleash its full performance, reaching the incredible heights of desktop-level gear. Featuring two high-performance yet highly efficient CS43131 DAC chips and two low-noise SGM8262 op-amps, this truly dual-core golden combo provides incredible performance. The KA13 will have you rediscovering your entire music collection again, with newly discovered nuances. The KA13 features a desktop mode, which is indicated by the engraved lightning bolt logo. In desktop mode, balanced output power goes up to 550mW, allowing the KA13 to drive both low and high-impedance headphones with outstanding dynamics and detail.
With support for 32bit/384kHz PCM and DSD256, although small in size size, the KA13 is capable of providing highly-detailed sound, so you can get a better look into your music. The KA13 not only manages to fit a 3.5mm single-ended headphone out, it also manages to pack a 4.4mm balanced headphone out. FIIO engineers repeatedly adjusted the design of the KA13 and finally managed to fit two headphone outputs in the compact dongle, marking true progress in packaging capabilities.
At A Glance
• Mini desktop amp with special desktop mode and balanced output power of up to 550mW
• Supports PCM 384kHz/32bit and DSD256 for high resolution and detail
• Dual CS43131 DACs and Dual 8262 op-amps
• SPDIF output, 3.5 and 4.4 dual outputs
• Hi-Res audio certified
What's In The Box?
• FiiO KA13 Portable Dual DAC
• Type-C to Type-C cable
• Type-C to Lightning cable
• Type-C to USB-A cable
• User Manual
Premium Design Features
Included adapter cablesThe KA13 features a detachable cable design. When combined with the included Type-C and Lightning adapter cables, you can listen with multiple systems without needing to purchase another cable.
born For MusicThe RGB ambient light window doesn't just look good, but also lets you quickly know the sampling frequency of your audio letting you feel the charm of a device.
App ControlFor a more convenient experience, the KA13 supports being controlled with the FIIO Control app. With the app, you can set the RGB lights, SPDIF output, audio filters and more.
Sleek DesignThe front of the CNC metal body features unique lines, while the rear contains exquisite texture, for an aggressive yet futuristic look. The KA13 is also soft to the touch, for extra comfort every time you use it.
The Tech Spec
| Features | Specification | DAC chip | CS43131*2 |
|---|---|
| Op-amp chip | SGM8262*2 |
| Supported audio formats (up to) | 384kHz/32bit |
| DSD256 USB connector | Type-C USB 2.0 |
| Dimensions | 56.3 x 22 x 10.5mm |
| Weight | 18.5g (excluding cable) |
| Output power 1 | L+R>170mW+170mW (32Ω single-ended/THD+N＜1%) |
| Output power 2 | L+R>550mW+550mW (32Ω single-ended/THD+N＜1%) |
| SNR 1 | >123dB (32Ω/A-weighted/single-ended) |
| SNR 2 | >122dB (32Ω/A-weighted/single-ended) |
| Noise floor | PO＜1.7uV (A-weighted) |
| BAL＜3.1uV (A-weighted) Output impedance 1 | ＜1.7Ω; (32Ω load/single-ended) |
| Output impedance 2 | ＜1.8Ω (32Ω load/balanced) |
| THD+N | ＜0.0005% (32Ω/single-ended) |
| THD+N | ＜0.0005% (32Ω/balanced) |
