FiiO K7 BT Desktop DAC and Amplifier - Bluetooth Edition
FiiO - K7 BT Desktop DAC and Headphone Amplifier - Bluetooth Edition, THX AAA 788+ Amp, Dual AK4493SEQ DACs
Email me when the availability or price changes
Desktop DAC and Headphone Amplifier
FiiO - K7 BT
'a new standard for desktop sound'The FiiO K7 BT is a truly balanced DAC/headphone amp that features a six-stage audio circuit with truly balanced analogue and digital sections - helping to reduce crosstalk and reproduce music to a great extent, allowing you to better enjoy the purity of your music. Using the same THX AAA 788+ amplifiers as the K9 Pro, the K7 is capable of outputting 560mW into a 300Ω load at 1% distortion, and 2000mW into a 32Ω load at 1% distortion. This ensures both low and high impedance headphones have plenty of power, and most importantly lets you experience a new level of musicality.
The left and right channels are each equipped with an efficient high-performance AK4493SEQ. With this DAC's pleasant sound, its rich and detailed overall sound will have you rediscovering your music all over again. The XMOS XUF208 decoder chip uses dual clock management to easily handle multiple music formats, so you can easily listen to many audio formats.
at a glance
• Truly balanced DAC/Amp
• THX AAA 788+ amp technology
• Dual AK4493SEQ DACs
• Multiple intelligent protection systems Two levels of hardware gain
• QCC5124 Bluetooth chip Included
• 12V/24W low-noise switching power supply Power supply with numerous independent LDOs RGB status indicators
• 3 output modes
An Outstanding Wireless Experience
QCC5124 Bluetooth chipThe K7 BT uses the QCC5124 Bluetooth chip, supporting high-definition Bluetooth formats like LDAC/aptX HD/aptX Adaptive.
When using the K7 BT, switch the input mode to Bluetooth, and you will acquire low-latency Bluetooth transmission and hi-res sound quality. Also, the app control helps to further enhance your wireless experience.
Pure Power
low-noise LDOsThe K7 features a power design made up of multiple independent stages, with a voltage of each stage being regulated by low-noise LDOs.
Feeding this power design is an external 12V switching power supply. All in all, the K7's power design is designed to supply plentiful, clean power for an extraordinary listening experience.

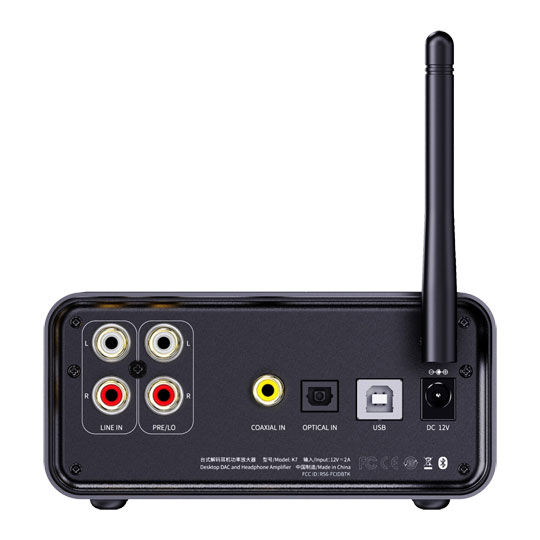

Variety of Inputs and Outputs
All in one placeThe K7 contains USB, optical, coaxial, and RCA inputs. Outputs are 6.35mm single-ended and 4.4mm balanced for pleasant listening regardless of the headphones.
One key controls switching between the 4 different inputs, with a flowing light effect to indicate when the input has switched and is ready. One touch of another key allows you to switch between 3 output modes (for use with headphones, with speakers, or use as a DAC).
Quality Construction
Elegant DesignThe K7 features an all-aluminum alloy construction, carefully finished with CNC and other processes.
Its sleek black colour is perfectly complemented by the gold accents of THX and Hi-Res Audio badges, complete with some colour from the RGB lights for a thoroughly luxurious appearance.
The Tech Spec
| Features | Specification | DAC | AK4493SEQ*2 |
|---|---|
| Decoder | XMOS XUF 208 |
| Amplifier | Dual THX AAA 788+ |
| Bluetooth Chip | QCC5124, Bluetooth 5.1 |
| Bluetooth Format Support | LDAC/atpX Adaptive/aptX HD/aptX HD/aptX/aptX LL/AAC/SBC |
| Outputs | 6.35mm/4.4mm |
| Inputs | USB/OPT/COAX/RCA |
| Output Power 1 | >2000mW (32Ω balanced/THD+N<1%) |
| Output Power 2 | >1220mW (32Ω single-ended/THD+N<1%) |
| SNR | >120dB (A-weighted, UAC) |
| Noise Floor | PO<4.4uV (A-Weighted, UAC); BAL<7.7uV (A-Weight, UAC) |
| Output Impedance | <1Ω (32Ω Load) |
| Weight | Approx. 610g |
| Dimensions | 120 x 55 x 168mm |
