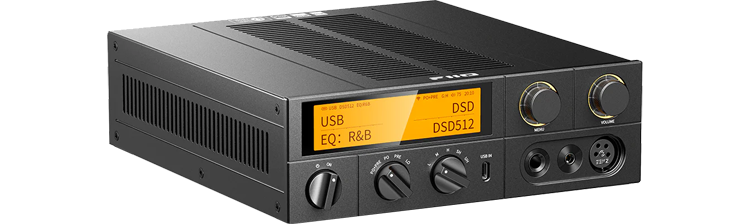

FiiO K17 Desktop DAC and Headphone Amp Black

Where Cutting-Edge Technology Meets Retro DesignThe FiiO K17 is FiiO’s next-generation amplifier/DAC, designed to deliver exceptional performance in a desktop format. With a unique combination of retro elegance and state-of-the-art technology, this device aims to set the benchmark for those who demand the highest audio quality in their headphones. More than just an updated successor to the K9 Pro, the K17 explores new possibilities in high-fidelity audio reproduction, designed to maximize performance even for the most demanding headphones.

a Symphony of retro elegance and modern technologyThis is the next generation desktop decoding headphone amplifier, aiming to be a unique and excellent performer. It is a symphony of retro elegance and cutting-edge technology, featuring a unique design and rich functionality all wrapped in a powerful package. The FIIO K17 is not only the upgraded successor to the K9 Pro, it is also an exploration of new possibilities for a high-end desktop DAC and headphone amplifier.

At a glance • 31-band high-precision lossless PEQ
• Discrete class AB transistor current amplification headphone amplifier
• Flagship AKM AK4191+AK4499EX*2 DAC
• DAC and headphone amplifier
• Streaming media receiver Local playback
• 4000mW+4000mW powerful output
• 3 ultra-low phase noise femtosecond crystal oscillators
• Fully balanced design
• 35W low-frequency low-noise linear power supply
• 3.93-inch touchscreen
• 2.4G/5G WIFI + Gigabit Ethernet
• Includes infrared remote

• USB Decoding: With 16-core XMOS XU316, supports up to 768 kHz/32-bit, DSD512, and full MQA decoding.
• Optical Decoding: Receives digital audio signals via the optical connection for subsequent amplification.
• Single-ended Line Input: Processes and amplifies analog signals.
• Streaming Receiver: Compatible with Roon Ready and AirPlay for easy and wireless music streaming.
• Bluetooth Decoding: Powered by Qualcomm QCC5125 with Bluetooth 5.1, supporting aptX HD, aptX Adaptive, and LDAC.
• Coaxial Decoding: Receives digital audio signals via coaxial input.
• Balanced Line Input: Processes balanced analog signals to maximize the K17’s power.
• Local Playback: Compatible with external USB storage devices and portable hard drives loaded with your music library.

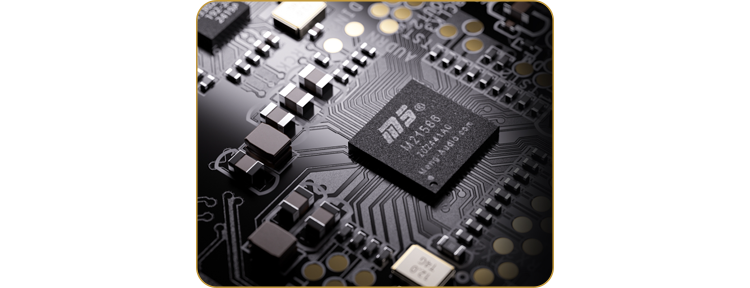

powerful M21586Q DSP chipThe K17 features an M21586Q DSP chip which is capable of double- precision 64-bit floating-point calculations, and runs at high 380MHz clock frequency. This chip is complemented by a high-performance ES9821Q ADC as well as a specially customized ultra-low phase noise femtosecond crystal oscillator. These three components allow the user, in all modes, to utilize the 31-band high-precision lossless PEQ. The PEQ is designed to ensure the audio signal is still of high fidelity even after being processed. The chip also allows for robust output protection functionality, ensuring that headphones and other connected audio equipment are always fully protected.

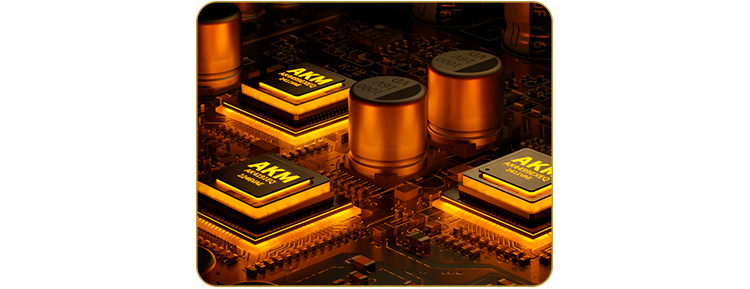

greater channel separation and dynamicsIn the K17 is the flagship AKM DAC chip combination – AK4191+AK4499EX*2. Two AK4499EX chips handle each channel. The 8-channel to 4-channel LPF design reduces common mode interference, resulting in better channel separation and dynamics. It also features a newly designed architecture with fully separated digital/analog portions, which also incorporates the newly developed “DWA ROUTING” technology for an even cleaner audio background and improved resolution.

high-performance ES9821Q ADCThe K17 features an M21586Q DSP chip which is capable of double-precision 64-bit floating-point calculations, and runs at a high 360MHz clock frequency. This chip is complemented by a high-performance ES9821Q ADC as well as a specially customized ultra-low phase noise femtosecond crystal oscillator. These three components allow the user, in all modes, to utilize the 31-band high-precision lossless PEQ. The PEQ is designed to ensure the audio signal is still of high fidelity even after being processed.

When adjusting PEQ on the K17, PCM 44.1k~96k signals can be originally processed. Fine adjustments of audio parameters are thus possible, allowing for adjustments such as a gain range of +12~-24dB and a Q value range of 0.4dB~128dB. The PEQ allows the user to simulate or correct the frequency response curve PEQ settings can be easily exported, imported, shared, and saved – making it easy for anybody to use the PEQ and correct or simulate various frequency response curves of different headphones.
