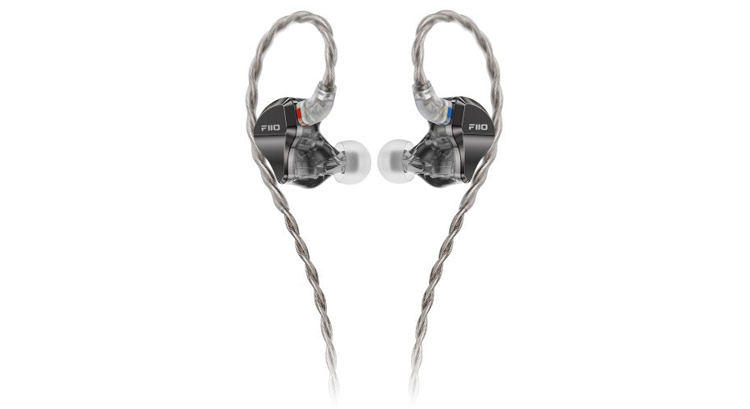

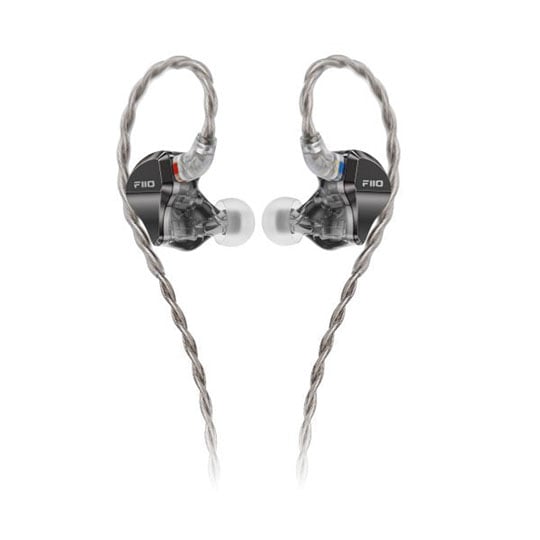

FiiO JH5 1 Dynamic & 4 BA Driver Hybrid In Ear Earphones BLACK
FiiO - JH5 1 Dynamic & 4 BA Driver Hybrid In Ear Earphones BLACK
Email me when the availability or price changes
Finance this product
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
FiiO - JH5 1 Dynamic & 4 BA Driver Hybrid In Ear Earphones
(Black)
Hybrid IEMs with a 10mm carbon dynamic driverFiiO JH5 packs a serious hybrid driver configuration into a compact, high-precision IEM, combining a 10mm carbon-based dynamic driver with four custom balanced armatures. Rather than simply throwing multiple drivers into the same enclosure, FiiO separates the drivers into three independent acoustic chambers, giving each section of the frequency range a clearly defined job.
The 10mm carbon-based dynamic driver handles the low frequencies, using a fast-moving diaphragm designed for controlled transients and low distortion. Two custom balanced armatures take care of the mids and highs, while a further pair is dedicated to the ultra-high frequencies. The crossover between the dynamic and BA drivers is carefully tuned around 2.8kHz, helping the different driver types work together smoothly.
The JH5's acoustic design draws on ideas from FiiO's higher-end hybrid IEMs, while the high-precision 3D-printed shell and zinc alloy faceplate give it a properly substantial feel. It's supplied with a four-strand, 392-wire silver-plated copper cable and is available in Black or Silver. At this price point, the JH5 makes a strong case for hybrid IEMs: plenty of driver technology, a considered acoustic layout and a properly detachable cable, without pushing into serious high-end money.
13Ω @ 1kHzImpedance
20Hz–40kHzFrequency Response
111dB/mW @ 1kHzSensitivity
at a glance
• 1 Dynamic + 4 Balanced Armatures – A five-driver hybrid configuration covering the lows, mids, highs and ultra-high frequencies.
• Three-Chamber Acoustic Design – Independent acoustic chambers help isolate the different driver sections for controlled, well-defined reproduction.
• 10mm Carbon-Based Dynamic Driver – Dedicated low-frequency driver delivers punchy, controlled bass with fast transient response.
• Custom Balanced Armatures – Four FiiO-tuned BAs handle the mid, high and ultra-high frequencies, with a 2.8kHz crossover point.
• High-Precision IEM Construction – 3D-printed acoustic chamber, zinc alloy faceplate and supplied silver-plated copper detachable cable.
The Tech Spec
| Features | Specification | Driver Configuration | 1 × 10mm dynamic + 4 × balanced armature per side |
|---|---|
| Dynamic Driver | 10mm carbon-based diaphragm |
| BA Drivers | 2 × mid/high + 2 × ultra-high frequency |
| Acoustic Design | Three independent chambers |
| Frequency Response | 20Hz–40kHz |
| Impedance | 13Ω @ 1kHz |
| Sensitivity | 111dB/mW @ 1kHz |
| Crossover | Three-way |
| Cable | 1.2m, 392-core silver-plated copper |
| IEM Connector | 0.78mm 2-pin |
| Plug | Gold-plated 3.5mm |
| Weight | Approx. 7.6g per earpiece, excluding cable |
| Included | 2 × sets of silicone eartips (S/M/L), HB11 carrying case |
