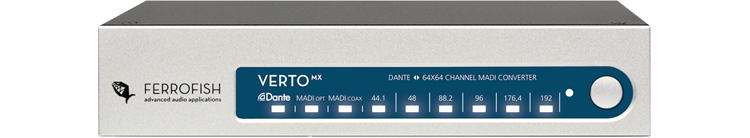

Ferrofish VERTO MX
Ferrofish - VERTO MX - 64×64 Channel MADIDante Converter
Email me when the availability or price changes
Finance this product
- From £34.46 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £30.52 / month (APR 15.9%)
64×64 Channel MADIDante Converter
Ferrofish - Verto MX
Make MADI future-proof:
Plug it to Dante.Dante is the de facto standard for networking audio equipment. With the Verto MX it’s now possible to easily integrate your existing beloved MADI equipment into a Dante network. Whether mixer or MADI converter – the Verto MX makes all 64 x 64 MADI channels immediately avalilable in the network: “plug and play”.

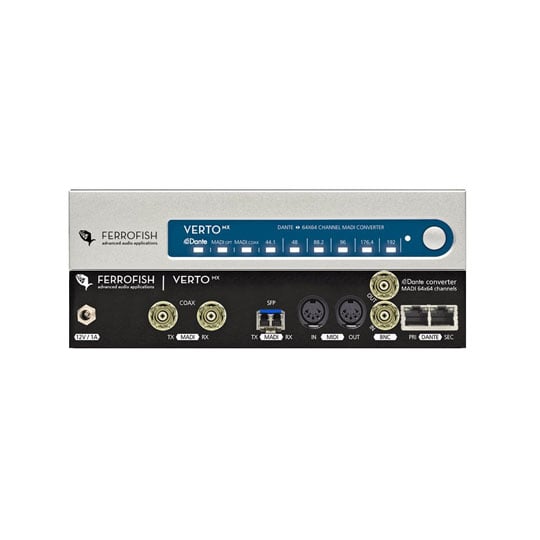

The ultra compact device has two MADI interfaces, so both optical and coaxial equipment can be connected. If the MADI signal fails, the other interface is automatically switched so that secure redundant operation can be configured. On the Dante side there are two RJ45 sockets, also prepared for redundant operation. The Verto MX supports up to 192kHz sample rate, MIDI jacks for firmware updates, and BNC wordclock jacks for external synchronization.
at a glance
• 64×64 MADI channels on multimode SFP Module or coaxial MADI I/O on BNC
• Word clock I/O on BNC with factory-set termination of the input (75 Ohm)
• 64×64 Dante channels via dual Ethernet ports with redundancy (pri/sec)
• MIDI I/O for firmware updates via MIDI-USB interface
Ferrofish Verto 32 - Dante Setup
The Tech Spec
| Features | Specification | Dante | 2 x RJ-45 Dante Port (Ethernet) |
|---|---|
| Sample frequency | 44,1 kHz – 192 kHz |
| MADI I/O | 1 x optical |
| I/O Channel Count @48kHz | 64 |
| I/O Channel Count @96kHz | 32 |
| I/O Channel Count @192kHz | 16 |
| MIDI-over-MADI | yes |
| MIDI I/O | 1 x MIDI 5pin input, 1 x MIDI 5pin output |
| Wordclock | 1 x BNC input, 1 x BNC output |
