Ferrofish Pulse8 AE 8-Channel AD/DA Converter
Ferrofish - Pulse8 AE, 8-Channel AD/DA Converter, 8 High-Quality Balanced Analogue Inputs and Outputs
Email me when the availability or price changes
8-Channel AD/DA Converter
Ferrofish - Pulse 8 AE
crystal clear signal conversionThe Ferrofish Pulse 8 AE is a versatile and compact AD/DA converter designed for seamless integration into studio or live setups. Featuring 8 high-quality balanced analogue inputs and outputs, it provides precise and clean signal conversion. The Pulse 8 AE offers full visual control via its vibrant front-panel display, simplifying real-time monitoring and configuration. Made to accommodate professional workflows, its robust clocking options and compatibility with standard studio connections make it an essential tool for engineers seeking reliable performance in a flexible, space-saving form factor.
At A Glance
• Versatile and compact AD/DA converter for studio or live setups
• 8 high-quality balanced analogue inputs and outputs
• Front-panel display provides full visual control

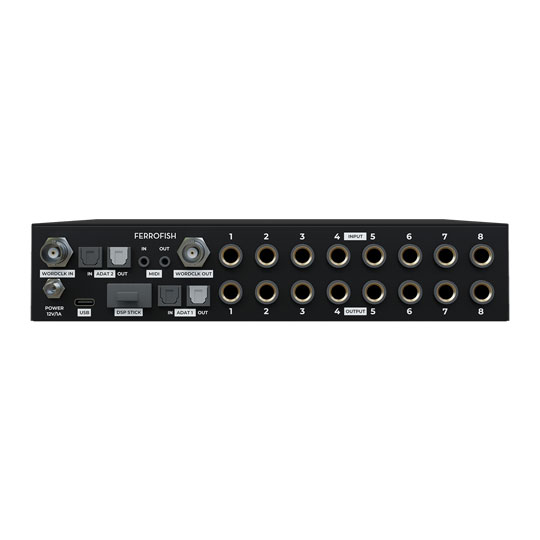

• 2 x ADAT input ports and 2 x ADAT output ports
• Robust clocking options
The Tech Spec
| Features | Specification | Analogue I/O | 8 x balanced TRS inputs (¼-inch) 8 x balanced TRS outputs (¼-inch) |
|---|---|
| ADAT Connectivity | 2 x ADAT input ports 2 x ADAT output ports Supports SMUX for higher sample rates (up to 96 kHz with 8 channels via SMUX/2 or 48 kHz with 16 channels) |
| Clocking | Word Clock input and output (BNC connectors) Internal clock with high stability or external sync via ADAT or Word Clock |
| Signal Monitoring | High-resolution front display for signal level monitoring (both input and output) Clear visual feedback with multi-coloured LED meters |
| Controls | Front-panel control knob and buttons for quick navigation and configuration |
| Connectivity | USB-C for remote configuration using Ferrofish RemoteFish software MIDI input/output for firmware updates or potential future features |
| Power | External 12V/1A power supply |
| Form Factor | Compact design, suitable for rack-mounted or desktop use |
| Headphone Output | 6.3mm jack output Amplification power adjustable in four stages Digital volume control with 1 dB resolution Dedicated monitoring path via a separate ESS DAC |
| DSP | Expandable via optional DSP stick |
| PLL (Phase-Locked Loop) | Digitally controlled PLL with active jitter reduction |
| Internal Wordclock | 125 MHz oscillator with high precision Initial accuracy: ±1.5 ppm Drift over the temperature range: ±2.5 ppm Aging: ±1 ppm |
| Power Supply | Voltage: 12 V at a maximum of 1 A Connector: 2.54 mm barrel jack with locking screw |
| Fuse | Polyfuse, internal, self-resetting |
| Power Adapter | 12 V, 3 A (or 12 V, 1 A) Positive pin Included in the package |
| Power Consumption | Nominal: 12 VA Standby: Below 1 VA |
| Operating Temperature Range | - +5 °C to +45 °C |
| Humidity | Maximum: <75 %, non-condensing |
| Weight | 1 kg |
| Dimensions (excluding knobs and connectors) | Size: 13.5 cm (D) x 22 cm (W) x 4.4 cm (H) (1U) |
