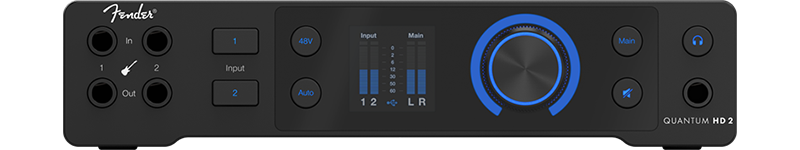

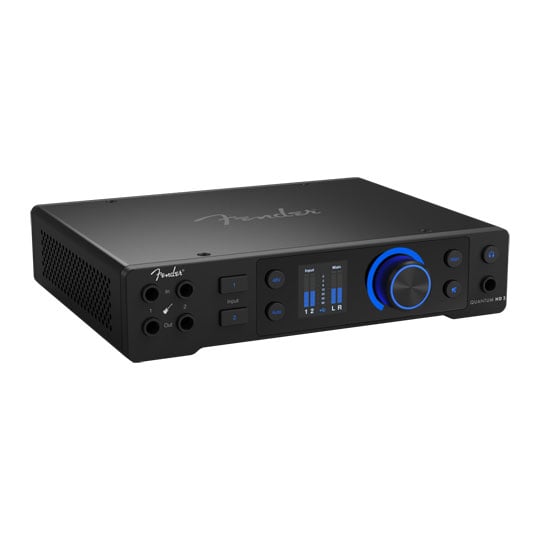

Fender Quantum HD 2 USB-C Audio Interface
Fender - Quantum HD 2 USB-C Audio Interface, 20 x 24 I/O, 32-bit / 192 kHz Converters
Email me when the availability or price changes
Finance this product
- From £20.07 / month (APR 16.9%) for 24 months or 0% for 4 months
- With a 10% deposit from just £10.27 / month (APR 15.9%)
- SCANPROTECT Protect against installation damage for 28 days.
USB-C Audio Interface
Fender - Quantum HD 2
Ultra-high-fidelity USB-C recording interface with MAX-HD mic preampsThe Fender Quantum HD 2 is a 20 x 24 USB-C interface designed for musicians, producers, and project studios who demand accuracy, clarity, and flexibility. Featuring next-generation MAX-HD mic preamps, ultra-low-latency drivers, and high-performance converters, the HD 2 captures every nuance of vocals, guitars, bass, and full-band sessions with professional precision.
Front-facing Fender instrument inputs provide transparent, studio-ready recordings for guitar and bass, while Auto Gain simplifies setup and re-amp outputs allow tonal experimentation without extra takes. Integrated DSP monitor mixing and loopback routing streamline streaming, podcasting, and recording workflows.
Control preamp gain, phantom power, and monitoring remotely via the Fender Studio Pro or Universal Control app for seamless integration. Ideal for project studios, the Fender Quantum HD 2 balances compact size with professional-grade I/O.
at a glance
• 20 x 24 I/O configuration with high-performance 32-bit / 192 kHz converters
• Expanded Digital I/O: 16 ADAT channels and S/PDIF I/O
• Front-facing Fender instrument inputs optimized for guitar and bass
• Auto Gain button for instant, hassle-free recording levels
• Re-amp outputs for creative tone exploration with amps and pedals
• DSP monitor mixer and loopback routing for streaming and monitoring
• Control preamps, phantom power, and outputs via Fender Studio Pro or Universal Control app
• Fender Studio Pro Perpetual Included – Professional DAW with Mustang and Rumble plug-in
Feature Highlights
HIGH-FIDELITY PERFORMANCEExperience studio-grade clarity with MAX-HD mic preamps and 32-bit / 192 kHz converters. Ultra-low-latency drivers ensure every vocal, guitar, and instrument is captured with pristine detail and dynamic accuracy.

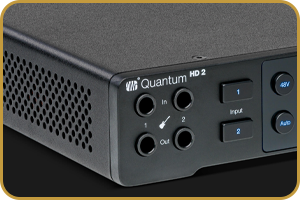

INSTRUMENT INPUTS & RE-AMP OUTPUTSFront-facing Fender inputs and dedicated re-amp outputs let guitars and basses shine in your recordings, while giving you flexible tone shaping and creative experimentation without extra takes.

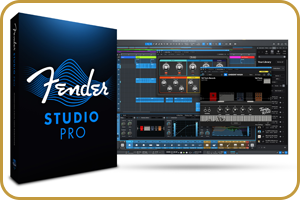

PRO SOFTWARE INCLUDEDJump into production with Fender Studio Pro included. Record, mix, and perform using a professional DAW with intuitive workflow, creative tools, and exclusive Mustang Guitar and Rumble Bass amp plug-ins.
The Tech Spec
| Features | Specification | Headphone Jack | One - 1/4" TRS Female Stereo |
|---|---|
| Connectivity | USB-C |
| Voltage | 230V UK |
| Phantom Power | +48 VDC |
| Digital Audio Bit Depth | 32-bit |
| Digital Audio Dynamic Range | 124 dB |
| Instrument Inputs Dynamic Range | 111 dB (A-Weighted, Minimum Gain) |
| Instrument Inputs Frequency Response | 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz) |
| Instrument Inputs Gain Range | 75 dB |
| Instrument Inputs Maximum Level | +21 dBu (Unbalanced, Minimum Gain) |
| Line Inputs Dynamic Range | 118 dB (A-Weighted, Minimum Gain) |
| Line Inputs Frequency Response | 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz) |
| Line Inputs Gain Range | ± 10 dB |
| Line Inputs Impedance | 10K Ohms |
| Line Inputs Maximum Level | +18 dBu (Balanced, Minimum Gain) |
| Line Inputs Total Harmonic Distortion | 0.001% (1 kHz, Minimum Gain) |

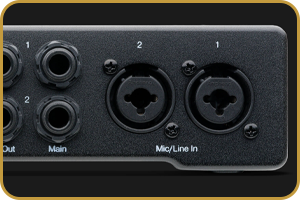

| Microphone Input Connection Type | XLR Female (Combo), Balanced |
| Microphone Preamp Dynamic Range | 116 dB (A-Weighted, Minimum Gain) |
| Microphone Preamp Equivalent Input Noise | -130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted) |
| Microphone Preamp Frequency Response | 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz) |
| Microphone Preamp Gain Control Range | 75 dB |
| Microphone Preamp Input Impedance | 1600 Ohms |
| Microphone Preamp Maximum Input Level | +18 dBu (Balanced, Minimum Gain) |
| Microphone Preamp Total Harmonic Distortion | 0.002% (1 kHz, Minimum Gain) |
| Headphone Outputs Dynamic Range | 118 dB (A-Weighted) |
| Headphone Outputs Frequency Response | 20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz) |
| Headphone Outputs Impedance | 33 Ohms |
| Headphone Outputs Maximum Output | 11 dBu (50 Ohms) |
| Headphone Outputs Total Harmonic Distortion | 0.001% (1 kHz) |
| Line Outputs Connection Type | 1/4" TRS Female |
| Main And Line Outputs Dynamic Range | 123 dB (A-Weighted) |
| Main And Line Outputs Frequency Response | 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz) |
| Main And Line Outputs Maximum Level | +18 dBu (Balanced) |
| Main And Line Outputs Output Impedance | 51 Ohms |
| Main And Line Outputs Total Harmonic Distortion | 0.001% (1 kHz, +4 dBu) |
| Main Outputs Connection Type | 1/4" TRS Female |
| MIDI IO | 5-Pin Female DIN |
