Scan code: LN87600 Manufacturer code: 134-KS-E377-KR

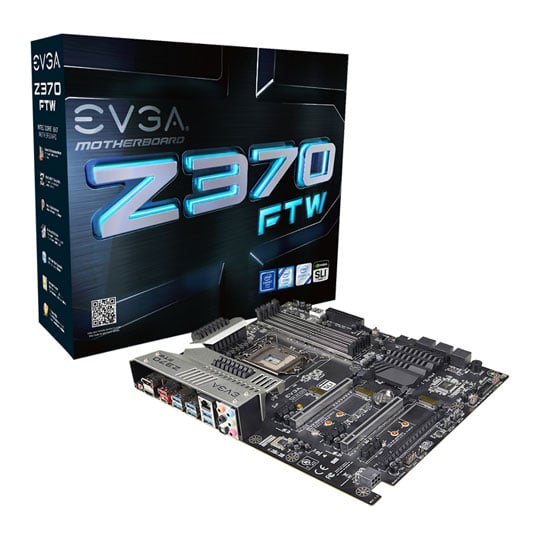

EVGA Intel Z370 FTW ATX Motherboard

EVGA FTW Z370 Motherboard, Intel Z370, S 1151, DDR4, SATA III, Dual M.2, 2-Way SLi, Intel GbE, USB 3.1 A+C, ATX

Thumbnail 1 : EVGA Intel Z370 FTW ATX Motherboard Thumbnail 2 : EVGA Intel Z370 FTW ATX Motherboard Thumbnail 3 : EVGA Intel Z370 FTW ATX Motherboard Thumbnail 4 : EVGA Intel Z370 FTW ATX Motherboard
Scan code: LN87600 Manufacturer code: 134-KS-E377-KR
£163.49Item currently awaiting an ETA
Pre order
From £14.68 / month (APR 14.9%)
Monthly Payment: £28.37
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £163.49
Total inc. interest: £170.22
Monthly Payment: £14.68
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £163.49
Total inc. interest: £176.10
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Powerful to the Core
Introducing the EVGA Z370 motherboards, based on Intel's Z370 Express Chipset and 8th Gen. CPUs. These motherboards are built to take mainstream performance to the next level...and beyond. This line-up includes not only the most commonly used ports, slots, and components, but also many surprises. All EVGA Z370 boards include cable cut-outs to make tight fits and cabling a concern of the past. These boards also feature metal-reinforced PCIe and DIMM slots, 2-Way SLI Support, M.2 slots, Intel or Killer Gigabit NICs, and switchable dual-BIOS. Your ears will appreciate Realtek's upgraded 7.1 Channel audio or Creative's Sound Core 3D Audio for superior listening and gaming performance. Make an EVGA Z370 motherboard part of your next PC and find out just how powerful your system can be - starting from the core.

The EVGA Z370 FTW has everything you need to upgrade and enjoy Intel’s latest 8th Gen Core i7/i5 processors. With the Z370 platform, high-performance gaming and powerful work machines are now more affordable than ever. Featuring 6 SATA ports, 10 USB 3.0 ports, USB 3.1 Type A and Type-C ports, multiple M.2 sockets, Intel® Optane™, 7.1 Channel Audio, and an Intel Gigabit NIC, this board is ready for storage, sound, and data whenever you want it. However, this board wouldn’t be FTW without a highly-efficient Digital VRM connected to an 11 Phase power design, 2-way SLI + PhysX support, Dual-BIOS support, and EVGA’s GUI BIOS. Whatever your passion, the EVGA Z370 FTW has the tools to get you there and the power to get the job done. Features • On-Board Power Button.
• On-Board Reset Button.
• 100% Solid State Capacitors.
• On-board CPU Temperature Monitor.
• 3 Year Warranty.
• Supports Intel Core i3, i5, and i7 Socket 1151 Coffee Lake-S Processors.
• Reinforced PCIe and DIMM slots.
• Switchable Dual BIOS.
• EVGA GUI BIOS.
• HDMI 1.4 and DP 1.2.
• Highly-Efficient 11 Phase Digital VRM.
• Intel® Optane™ Memory Ready.
Specifications
Core Specifications
Edition FTW
Form Factor ATX
CPU Socket 1151
Chipset Intel Z370
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR4 - 4133+(OC)
Max. Memory Capacity 64GB
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi with High Bandwidth Bridge Support
AMD CrossFire Support Not Supported
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2 E-Key 2232
  • 2 x M.2, 2242/2260/2280, SATA
  • 3 x PCIe 3.0 x1
  • 2 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via Yes
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 10/100/1000 [LAN]
  • 6 x 4-pin Fan
  • 1 x Power button
  • 1 x Reset Button
  • 6 x SATA III - 6Gb/s
  • 1 x USB 2.0 Header
  • 2 x USB 3.0 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219 (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x 7.1 Audio I/O
  • 1 x BIOS/CMOS Reset button
  • 1 x DisplayPort 1.2
  • 1 x HDMI 1.4
  • 1 x S/PDIF-Out
  • 6 x USB 3.0
  • 1 x USB 3.1 Type-A
  • 1 x USB 3.1 Type-C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 244 x 305 mm
