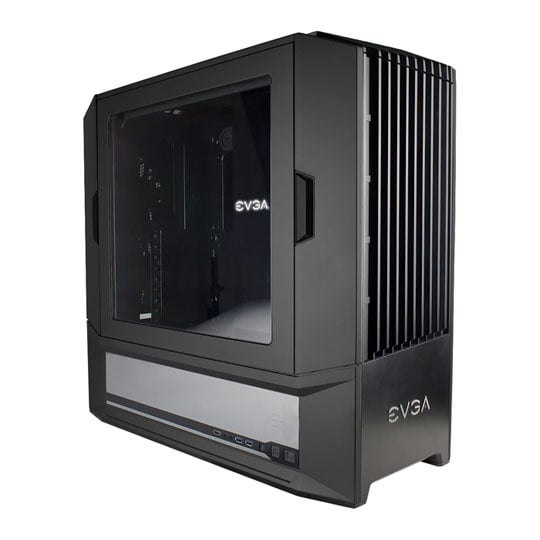

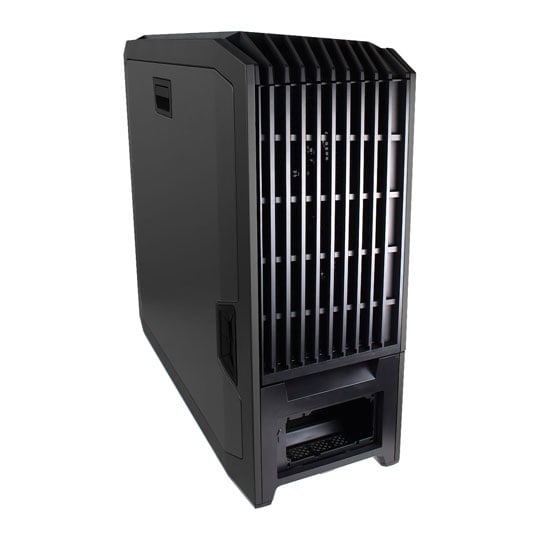

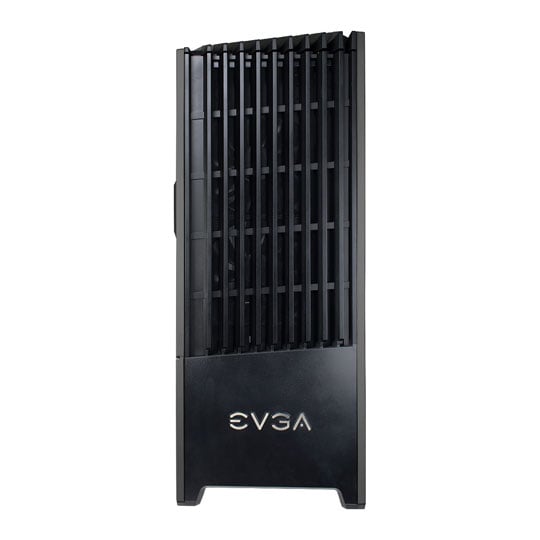

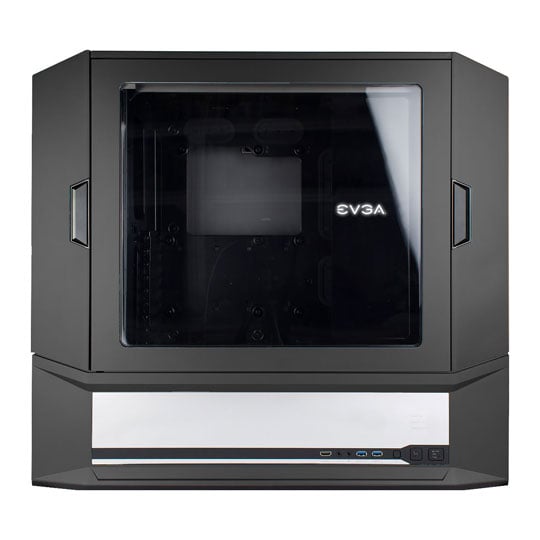

EVGA DG 85 Windowed EATX Tower Pro Gaming PC Case
• Optimized Airflow Path: Dedicated cooling path for graphics cards, giving ultimate cooling performance and increased clockspeeds.
• Robust Water Cooling Support: Full support for dual 420mm or 360mm radiators give you ultimate cooling performance, with a dedicated section for mounting reservoir.
• Cable Management: Dedicated cable management cutout points lets you keep your system layout clean, improving appearance and airflow.
• K-Boost Button: Control your performance with EVGA K-Boost! One button boosts GPU and CPU clocks instantly, giving you ultimate control.
• Removable Fan Filters: Easy to remove fan filters keeps your system dust free.
• Easy Removable Door: Flip a switch to remove the entire door, making assembly as easy as can be.
• GPU Airflow Channel: Adjustable channel to maximize cooling efficiency depending on your GPU setup.
• Optional Segmented PSU Tray Hides Cables: Slidable tray keeps your system clean and hides Power Supply cables.
• Flexible Fan Support: Supports up to 8 140 or 120mm fans.
• Easy Access to I/O ports and Clean Cable Output: Cables exit on the back of the case, keeping cable management clean, and I/O ports are easily accessed by left door hinge.
• Completely Removable PCI-E Brackets: Remove brackets to increase airflow or easily pass water cooling tubes.
|Case Form Factor||Full Tower|
|Motherboard Form Factor||
|Material||ABS / Steel|
|Front/ Side/ Top Panel||
|Fan Bays||8 x 120/140mm|
|Front Radiator Compatibility||1 x 360/420mm|
|Top Radiator Compatibility||1 x 360/420mm|
|Bottom Radiator Compatibility|
|Rear Radiator Compatibility||1 x 120mm|
|Side Radiator Compatibility|
|Power Supply Form Factor||ATX|
|Max PSU Length||220 mm|
|Max CPU Cooler Height||180 mm|
|Max VGA Card Length||420 mm|
|Dimensions||270 x 642.45 x 686 (WxHxD mm)|
|Weight||17 kg (Approx)|
