Reference Quality Dante Audio Interface
ESI - Planet 22c

ESI - Planet 22c

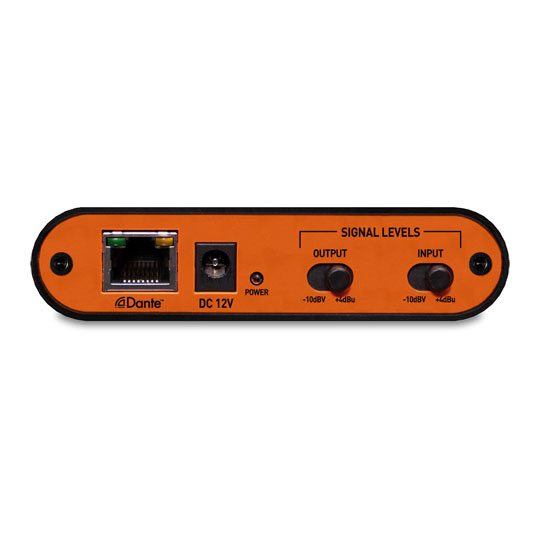

Dante Interface with professional audio quality ESI’s planet 22c is an extremely compact interface box that provides 2 analogue input and 2 analogue output channels at pristine reference audio quality in a Dante IP audio network.

The lightweight and sturdy I/O solution is equipped with ultra-high quality 24-bit / 96kHz analogue-to-digital and digital-to-analogue converters. Supporting balanced line audio signals with home (-10dBV) and professional (+4dBu) signal levels, it works as an ideal interface wherever high-quality audio is needed within the Dante network.

This makes planet 22c ideal to interface any analogue equipment such as a traditional mixer, studio monitors or PA speakers, synthesizers or other electronic instruments and much more with the Dante world. The linear frequency response and excellent audio quality even makes planet 22c ideal for audio measurement purposes.

One of the best features is that it can be powered not only via the included 12V DC power adapter but also directly from the Ethernet cable as a PoE (Power over Ethernet) device. This is perfect when using it in a remote location.

It can also be integrated into a modern music studio when using the optional Dante Virtual Soundcard (DVS) software for PC or Mac.

at a glance • Dante network audio interface with 2 analog inputs and 2 analog outputs
• Reference level audio quality for professional applications
• Supports -10dBV (consumer) and +4dBu (professional) audio levels for input and output
• Balanced analog inputs (TRS, 6.3mm, 1/4")
• BurrBrown PCM1804DB 24-bit stereo ADC with 110dB dynamic range (A-weighted)
• Maximum input level: +6dBV (-10dBV setting), +20dBu (+4dBu setting)
• Latency based on network configuration, typically around 1ms

The Tech Spec

Features Specification
Number of analogue inputs 2-4
Number of analogue outputs 2-4
Number of Channels 2
Phantom Power No
ADAT No
S/PDIF No
AES/EBU No
MADI No
Wordclock No
Bit Resolution 24 Bit
sampling rate (kHz) 96
DSP Mixer No
Bus Powered No
Specifications
Computer Interface Type
Connections (Input) 1 x AVB Ethernet
Mic Preamps (Max)
Instrument Inputs (Max)
Phantom Power No
Sample Rate (Max)
Bit Resolution
iPad Compatible No
Connections (Output)
Dimensions (mm)
DSP Processing No
Misc. Notes
Additional Information
Scan Code LN129883
Model Number ESIPLANET22C
GTIN 4260265610536
