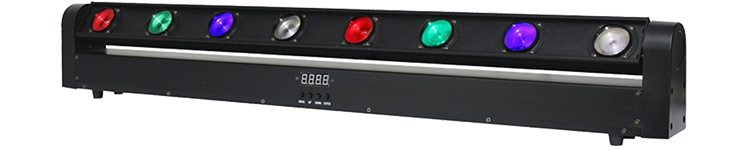

Equinox Swing Batten LED Bar Light
Equinox - Swing Batten, Multi-Beam Bar Light With 8 x 10W LEDs With RGBW Colouring
RGBW LED Bar Light
Equinox - Swing Batten
8 x 10W CREE RGBW LEDsEquinox’s RGBW Swing Batten LED Bar Light boasts 8x10-watt CREE LEDs in vibrant shades of red, green, blue and white. Each of the LEDs is able to be controlled on an individual basis for a wholly customisable lightshow.
The Swing Batten offers users a 4-degree beam angle, 220-degree tilt, a refresh rate of 400Hz and multiple control functions including auto, sound activation, master/slave modes and DMX. A dimming and variable strobe adds an extra element to your lightshow and the bar light includes quick release omega clamps for installation purposes. Operation is made simple via the 4-button LED control panel and the light has both PowerCON and 3-pin XLR inputs/outputs.
4°Beam Angle
3-Pin XLRInput/Output
220°Tilt
at a glance
• Multi-Beam Bar Light With 8 x 10W LEDs With RGBW Colouring
• 8 Individual Controllable Sections For Custom Lightshow
• Ideal For Stages, Nightclubs & Small To Medium Sized Venues
• Auto, Sound Activation & Master/Slave Operation Modes
• Dimming & Variable Strobe Settings Provide Dynamic Lightshow
Equinox Swing Batten
The Tech Spec
| Features | Specification | LED Type | 8 x 10W CREED RGBW |
|---|---|
| Beam Angle | 4° |
| Lux @ 2m | 16,100 |
| Refresh Rate | 400Hz |
| DMX Channels | 6/12 or 16 Selectable |
| Tilt | 220° |
| Input/Output | 3-Pin XLR |
| Power Consumption | 100W |
| Power Supply | 100 - 240V, 50/60Hz |
| Weight | 7.5 kg |
| Height | 160 mm |
| Width | 1065 mm |
| Depth | 80 mm |
