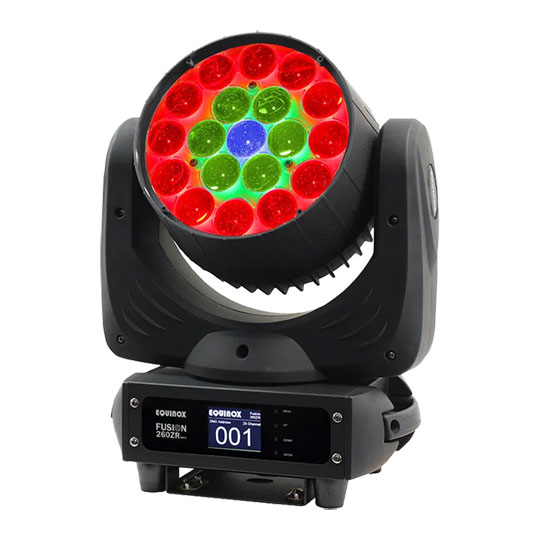

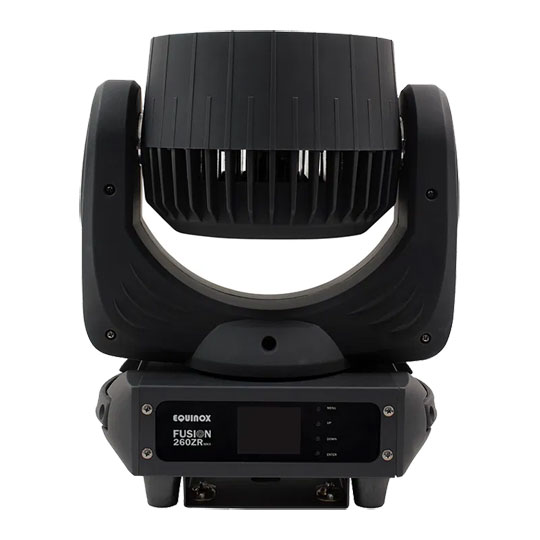

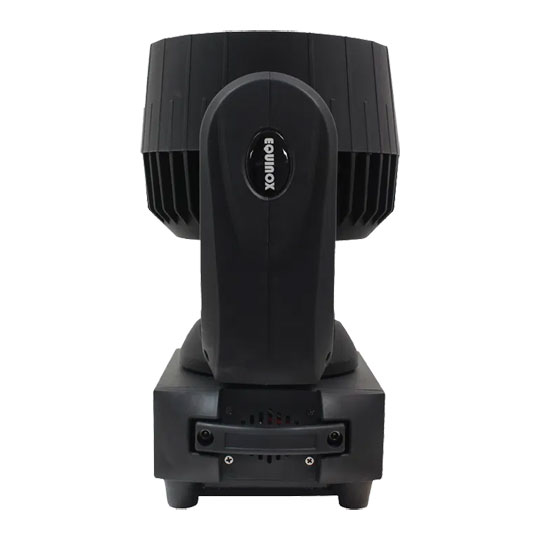

Equinox Fusion 260ZR MKII Moving Head Wash
Equinox - Fusion 260ZR MKII Moving Head Wash Light, 19 x 12W Quad-Colour LEDs (RGBW)
Email me when the availability or price changes
Moving Head Wash Light
Equinox - Fusion 260ZR MKII
19 x 12W quad-colour LEDs (RGBW)The Fusion 260ZR MKII builds on the excellence of its predecessor with quieter temperature-controlled fans, improved dimming, and smoother movement capabilities. It features 19 x 12W quad-colour LEDs (RGBW), offering everything from gentle pastels to vibrant saturated colours. Arranged in three concentric circles, the LEDs provide versatile programming options for stunning colour and pattern effects, while ensuring comprehensive wash coverage. The unit is also equipped with a 6°-50° motorized zoom.
Amazing Features
• Improved dimming with smoother movements
• Auto, sound active and master/slave modes
• Dimming curves and refresh rate settings
• Quieter, temperature controlled fans
• 4 button menu with LCD display
• Temperature controlled fans
• 16-Bit pan/tilt positioning
• Forward facing show modes
• Pan/tilt auto correction
• Pixel zone mapping
• 0 - 100% dimming
• Variable strobe
• Motorised zoom
The Tech Spec
| Features | Specification | Adjustable Beam Angle | 6°- 50° |
|---|---|
| Lux | 6° - 40,098 Lux @ 2m (full on) 50° - 6,316 Lux @ 2m (full on) |
| Refresh Rate | 650Hz, 1.5kHz, 3.6kHz, 12kHz or 25kHz selectable |
| DMX Channels | 2/8/17 or 25 selectable |
| Pan/Tilt | Pan: 540°, Tilt: 270° |
| 4 Dimming Curves | Linear, square law, inverse square law and S-curve |
| Mounting | Supplied with quick release omega clamps Square hole spacing on omega clamp receivers allows for clamps to be mounted in all orientations |

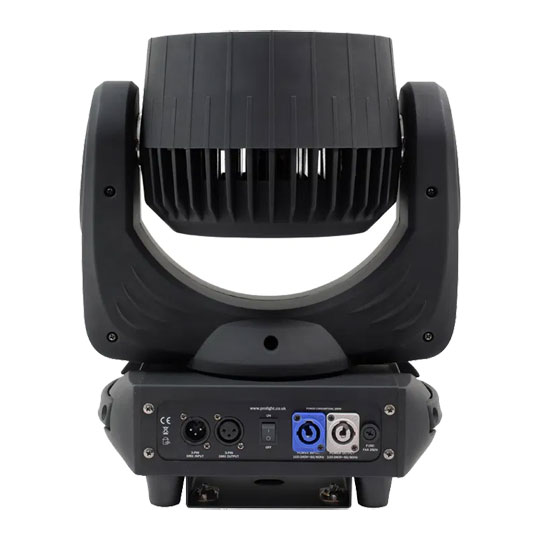

| Inputs/Outputs | PowerTwist input/output 3-Pin XLR input/output |
| Power Consumption | 290W |
| Power Supply | 100~240V, 50/60Hz |
| Fuse | F4A 250V |
| Dimensions (H x W x D) | 414 x 324 x 221mm |
| Weight | 9.7kg |
