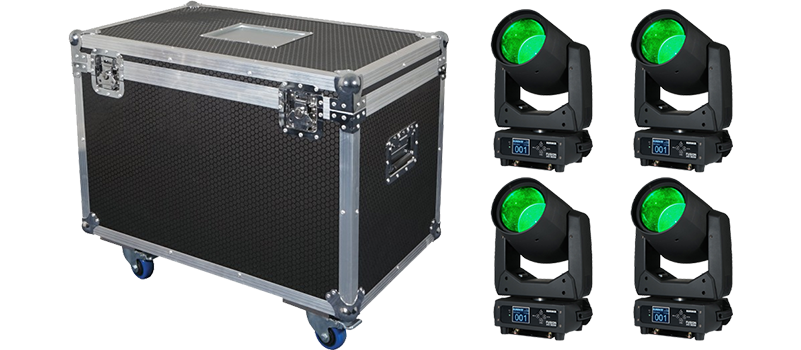

Equinox - Fusion 200 Beam Bundle with Flight Case
4 x Equinox Fusion 200 BeamsThe Equinox Fusion 200 Beam features a single 100W LED that creates stunning light shows from its tight 2.5 degree beam. With 11 colours (plus open) and 13 static gobos (plus open) paired with motorised focus allows users to create sharp, well defined beams over any distance.
Two bi-directional prisms (8 facet circular and 6 facet linear) allow for multi beam effects whilst a frost filter and 6 colour rainbow wheel further enhance the fixtures comprehensive features. An on-board 4 button menu allows for easy access to the functions including DMX, auto, sound active and master/slave modes.

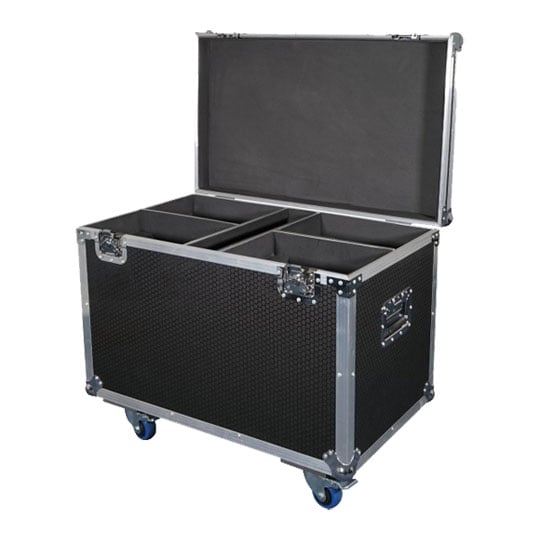

DESIGNED TO FIT 4 EQUINOX FUSION 200 BeamsThis professional flight case has been designed to fit 4 of the Equinox Fusion 200 Beams. An additional accessory compartment is also included to hold power and DMX cables.
Equinox Fusion 200 At a glance
• 1 x 100W white LED (8000K)
• Beam angle: 2.5°
• 132,159 Lux @ 2m
• DMX channels: 2/15 or 19 selectable
• Pan: 540°, Tilt: 270°
• 0-100% dimming
Flight case At a glance
• Features 4 compartments for Fusion 200 Zoom Spot Moving Heads plus an accessories compartment
• Interlocking tongue and groove edging ensuring that all lids and covers stay secure even in an impact and form a fully dust proof seal
• 9mm hexaboard plywood panels
• Fitted with metal tour label dish
• Heavy duty, industrial grade handles and butterfly catches
• All handles feature heavy duty rubber grips for comfort and non slip safety
• Riveted 35mm aluminium profile edge strips provide rigidity, strength and durability
• Heavy duty, industrial grade handles and butterfly catches
• Heavy duty ball corners for added impact protection
Equinox Fusion 200
The Tech Spec
Features | Specification | Power consumption | 150W |
---|---|
Power supply | 100~240V, 50/60Hz |
Fuse | F4A 250V |
Dimensions | 410 x 290 x 195mm |
Weight | 13.1kg |
Flight Case
The Tech Spec
Features | Specification | Internal dimensions (H x W x D) | 490 x 310 x 210mm per fixture compartment |
---|---|
Internal dimensions (H x W x D) | 270 x 80 x 430mm accessory compartment |
External dimensions with wheels (H x W x D) | 630 x 780 x 490mm |
External dimensions without wheels (H x W x D) | 530 x 780 x 490mm |
Weight | 22.5kg |
