Super-Versatile Moving Head

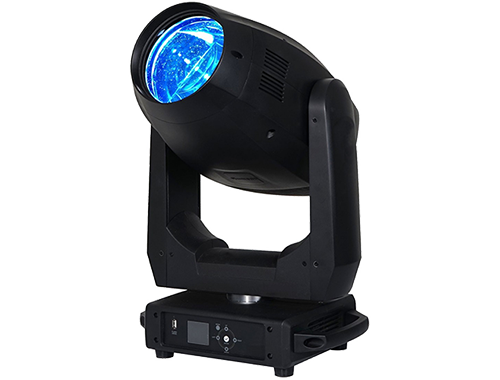

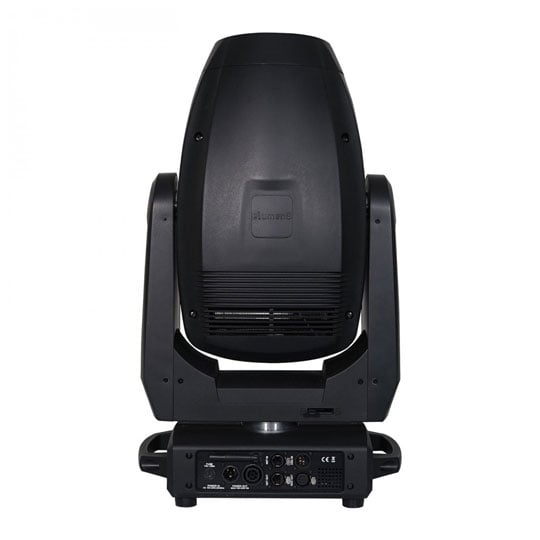

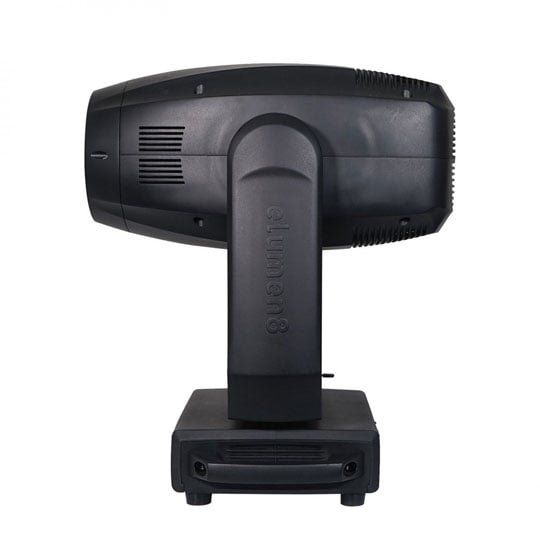

eLumen8 - Evora CMY300 Zoom Spot
1 x 300W white LED (6,700K)The Evora CMY300 Zoom Spot from eLumen8 moving head features a hugely bright 300W LED with crystal clear optics, and thanks to an adjustable beam angle from 4.5° to 38° it's capable of achieving tight beams through to wide washes. This feature packed head offers both static and rotating gobo wheels, linear and circular prisms, variable frost filter, high CRI filter along with motorised zoom, focus and iris.
Endless colours can be achieved with CMY colour mixing, along with its colour wheel and CTO filter. Suited to rental, stage and touring the LED is flicker-free with an adjustable refresh rate. Control is via DMX, RDM, Kling-Net, Art-NET and sACN protocols, and for further convenience wireless DMX is on-board via W-DMX.
4.5° - 38°Adjustable Beam Angle
270°Tilt
540° / 630°Pan
at a glance
• Motorised zoom, focus and iris
• 6 facet circular rotating indexable prism plus 6 facet linear rotating indexable prism
• Gobo wheel 1: 8 rotating, indexable, replaceable gobos + open
• Control protocols: DMX, Kling-net, Art-net and sACN
• 2 year warranty
The Tech Spec
| Features | Specification | Light Source | 1 x 300W white LED (6,700K) |
|---|---|
| Adjustable Beam Angle | 4.5° - 38° |
| Lux @ 10m | 38° - 340, 4.5° - 16,750 |
| CRI | >68 |
| Adjustable Refresh Rate | 900Hz-25kHz |
| Control Protocols | DMX, Kling-net, Art-net and sACN |
| DMX channels | 32 |
| Pan | 540° or 630° selectable |
| Tilt | 270° |
| Dimming Modes | 5 |
| Connections | PowerCON True1, 5-pin XLR, EtherCON - inputs/outputs |
| Power Consumption | 437W |
| Power Supply | 100~240V 50/60Hz |
| Fuse | T5A 250V |
| Dimensions | 600 x 370 x 230mm |
| Weight | 19.3kg |
