Elumen8 Evora 740ZP Zoom Wash
Elumen8 - Evora 740ZP Zoom Wash, High-quality 40W RGBW LEDs , Adjustable Beam Angle from 4° to 31°

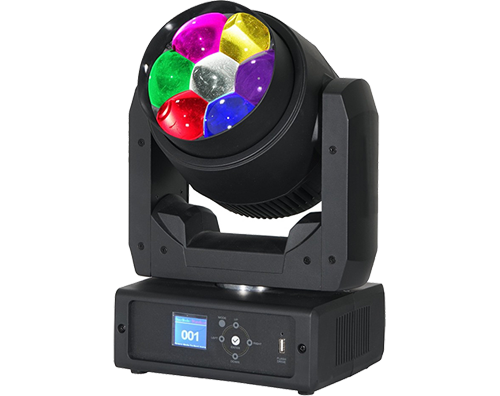

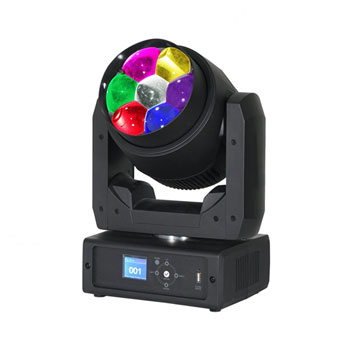

elumen8 - Evora 740ZP Zoom Wash
Moving head light with variable
zoom for powerful washes
eLumen8’s Evora 740ZP LED zoom wash moving head packs an incredible high output from a surprisingly compact and durable chassis, ensuring it’s an incredibly flexible yet affordable solution for both rental and installation applications.
The first-class optical system presents a high intensity adjustable zoom; the narrow 4 degree beam angle creates sharp mid-air effects, whilst the wider angles produce uniform colour mixing, bathing concerts and events in rich colours. Full pixel control over the 7 x 40W LEDs gives lighting designers a further level of creativity, whilst colour calibration ensures colours match from batch to batch.
at a glance
• 7 x 40W Osram Ostar™ quad-colour LEDs (RGBW) (50,000 hrs.)
• Adjustable beam angle: 4°- 31°
• Built-In Colour Macros
• Colour Temperature Presets
• 16-Bit pan/tilt positioning
• Motorised zoom
• 2 year warranty
The Tech Spec
| Features | Specification | Light Source | 1 x 40 W Osram Ostar™ quad-colour (RGBW) LEDs |
|---|---|
| Beam Angle | 4° - 31° |
| Illuminance | 4° - 81,040 lux @ 2 m (full on), 31° - 2,504 lux @ 2 m (full on) |
| CRI | 83 |
| Refresh Rate | 900 Hz - 25 kHz |
| Control Protocols | DMX, Kling-net, ARTnet, sACN |
| DMX Channels | 9/12/19 or 48 selectable |
| Pan | 540° or 630° selectable |
| Tilt | 265° |
| Pan and Tilt Resolution | 16-bit |
| Dimming | 0 - 100% |
| Dimming Modes | Standard, stage, TV, architectural, theatre |
| Dimming Curves | Linear, square law, inverse square law, S-curve |

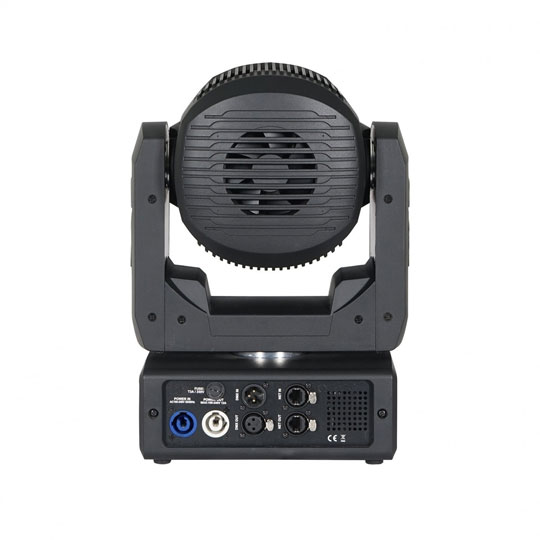

| Power Input | PowerCON True1 (Blue) |
| Power Output | PowerCON True1 (Gray) |
| DMX Input | 5-pin XLR (M) |
| DMX Output | 5-pin XLR (F) |
| EtherCON Connectors | Network ports |
| Display | LCD, 1.8" |
| Included Accessories | Quick-release omega clamps |
| Additional Connection | USB port for firmware updates |
| Cooling | Temperature controlled fan |
| Power Consumption | 350 W |
| Power Supply | 100 - 240 V 50/60 Hz |
| Fuse | T3A 250 V |
| Dimensions | 349 mm x 233 mm x 177 mm |
| Weight | 7 kg |
