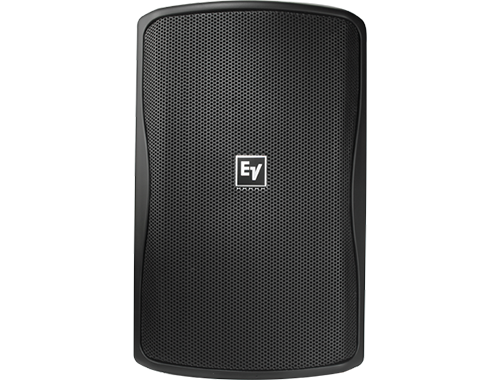

Electrovoice ZX1i 90 Indoor/Outdoor Loudspeaker
Electrovoice - ZX1i-90 - 8" 2-Way, 200 W, Install Version, Strong Arm Mount
- By DPD On 15th Aug to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- SCANPROTECT Protect against installation damage for 28 days. More info
8" 2‑Way Passive Full‑Range Indoor/Outdoor Loudspeaker
Electrovoice - ZX1i-90
2-Way 200W Weather-Resistant Passive LoudspeakerEV’s ZX1i-90 is a powerful 8” 2-way 200W weather-resistant passive loudspeaker delivering top-performance, full-range sound reinforcement for both indoor and outdoor applications in arenas, stages and patio/gardens. The ZX1i-90’s 8” woofer and titanium high-frequency compression driver boasts a 60Hz-20kHz frequency response and yields a 200w continuous power handling rating. The HF driver is secured and mounted in a rotatable 90 x 50° horn for long-throw and cluster applications.
The input to the loudspeaker—provided by a removable 4-pin Euroblock connector—is fed to an internal crossover that properly distributes frequencies to the drivers. The lightweight ABS resin cabinet is outfitted with a heavy-duty QuickSAM mounting system, which enables fast and secure installation. With its molded enclosure design, two-layer grille, and IEC 529 and MIL-SPEC-810 ratings, the ZX1i-90 loudspeaker is built to withstand the stress of outdoor use.
at a glance
• Patented ASC (Automatic Saturation Compensation)
• Integrated QuickSAM heavy-duty Strong-Arm Mounting bracket
• EN54-24 type B certification 1438/CPD/0323 with TC-ZX1i cover (Sold separately) installed (only available in select regions)
• Also available in 70/100 volt transformer version
Electro-Voice Automatic Saturation Compensation (ASC)
The Smart Audio Transformer Solution
The Tech Spec
| Features | Specification | Configuration | Passive 2-Way |
|---|---|
| Enclosure Type | Bass-Reflex Loudspeaker |
| Total Power Capacity | Passive: 200 W RMS 400 W Program 800 W Peak |
| System Impedance | 8 Ohms (Nominal) 6 Ohms (Minimum) |
| HF Driver | 1 x Horn-Loaded Titanium Compression Driver with 1" / 25.4 mm Throat |
| HF Voice Coil | 1.25" / 31.75 mm |
| LF Driver | 1 x 8" / 20.32 cm Woofer |
| Frequency Range | 48 Hz to 20 kHz -10 dB (Half-Space) |
| Frequency Response | 60 Hz to 18 kHz -3 dB (Half-Space) |
| Maximum SPL | 123 dB (Half-Space) |
| Coverage Angle | 90° H x 50° V |
| Speaker Sensitivity | 94 dB (Half-Space) |
| Protections | Crossover Overload |
| Audio I/O | 1 x Euroblock 4-Pin Speaker Input |
| Mounting | 1 x Bracket Point (Side) |
| Dimensions | 17.8 x 11.1 x 10.4" / 451 x 282 x 263 mm |
| Weight | 18.5 lb / 8.4 kg |
