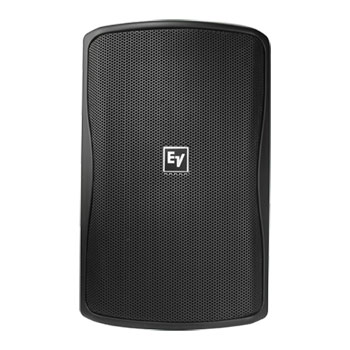

Electro-Voice ZX1i 100 8" 2-way Passive Full-range Indoor/Outdoor Loudspeaker
Electro-Voice - ZX1i-100 - 8" 2-way Passive Full-range Indoor/Outdoor Loudspeaker, Install Version - Black
Email me when the availability or price changes
Finance this product
- From £20.49 / month (APR 16.9%) for 36 months or 0% for 4 months
- With a 10% deposit from just £14.61 / month (APR 15.9%)
- SCANPROTECT Protect against installation damage for 28 days.
8" 2‑way Passive Full‑range Indoor/Outdoor Loudspeaker

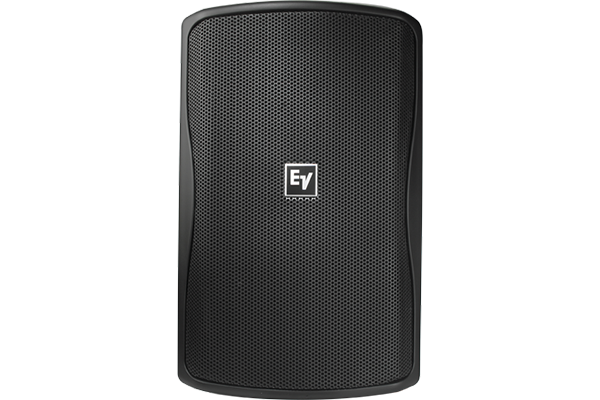

Electro-Voice - ZX1i 100
ZX Series LOUDSPEAKERFrom ultra-compact models to the highest-output stadium systems on the market today, EV's point-source solutions represent an optimal balance of form and function, integrating state-of-the-art transducer and waveguide engineering with a range of mounting and finish options for indoor or outdoor applications.
These front-loaded speakers feature advanced weatherproofing technologies, ensuring durability in any environment. The versatile design allows for easy integration into existing systems, making them ideal for both new installations and upgrades. Electro-Voice point-source speakers are designed to provide powerful sound with clear, consistent coverage, perfect for venues from small auditoriums to large outdoor arenas.
Electro-Voice have a wide range of front-loaded designs, including passive speaker models, subwoofers, and bass elements, designed to deliver exceptional sound coverage and clarity. Each speaker is engineered for superior audio performance, tailored to specific applications, ensuring every space sounds its best. Whether it's for stadiums, concert halls, or houses of worship, these speakers ensure top-notch sound quality.
123 dBMax SPL
60 Hz - 20 kHzFrequency Response (-3 dB)
800 WPower (Peak)
AT A GLANCE
• Patented ASC (Automatic Saturation Compensation)
• 100 volt transformer version
• Integrated QuickSAM heavy-duty Strong-Arm Mounting bracket
• EN54-24 type B certification 1438/CPD/0323 with TC-ZX1i cover (Sold separately) installed (only available in select regions)
The Tech Spec
| Features | Specification | Frequency Response (-3 dB) | 60 Hz - 20 kHz |
|---|---|
| Frequency Range (-10 dB) | 48 Hz - 20 kHz |
| Rec. Hi-pass Frequency | 40 Hz |
| Axial Sensitivity | 94 dB (1W/1m) |
| Maximum SPL | 123 dB peak |
| Coverage (H x V) | 90° x 50° |
| Rated System Power | 200 W Cont., 400 W Prog., 800 W Peak |
| LF Transducer | EV8L, 203 mm (8 in) Driver |
| HF Transducer | DH2005, 25 mm (1 in) Exit Compression Driver |
| Crossover Frequency | 1.7 kHz |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6 Ω |
| "T" Version Wattage Taps | 70V - 6, 12.5, 25, 50, 100, 8 Ω by p0V - 12.5, 25, 50, 100, 8 Ω bypass |
| Connectors | 4-Pin Phoenix Connector |
| Enclosure | ABS resin |
| Grille | Polyester Powder Coated, 18GA Galvanized Steel |
| Suspension | Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket |
| Dimensions (H x W x D) | 451 mm x 282 mm x 263 mm 18 in x 11 in x 10 in |
| Net Weight | 8.4 kg (18.5 lb) without Transformer 10.4 kg (23.0 lb) with Transformer |
