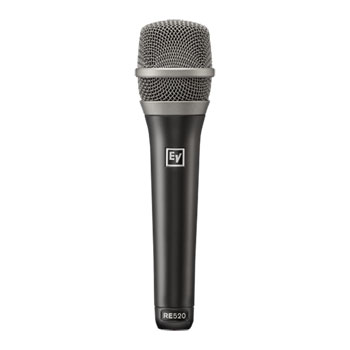

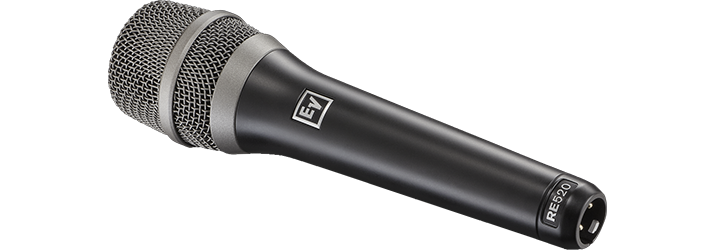

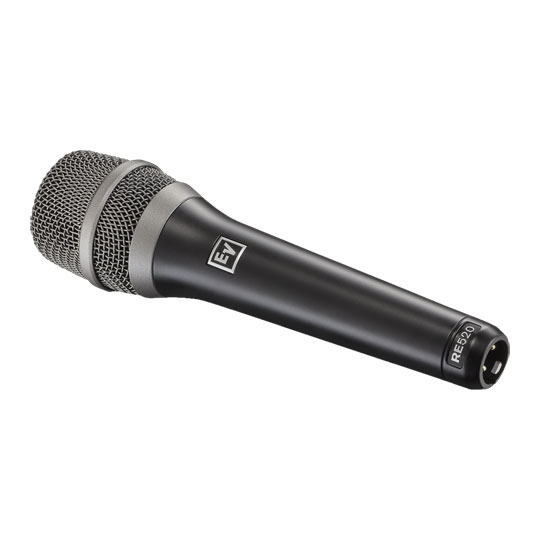

Electro-Voice RE520 Condenser Supercardioid Vocal Microphone
Electro-Voice - RE520, Condenser Supercardioid Vocal Microphone, Multi-Stage Pop Filter, Selectable High-Pass Filter
Email me when the availability or price changes
Finance this product
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Condenser Supercardioid Vocal Microphone
Electro-Voice - RE520
capture every detailThe Electro-Voice RE520 is a premium-grade, high-performance, condenser supercardioid vocal microphone. Designed to capture the exceptional detail and vivid clarity condensers are known for, it seamlessly delivers the lyrical finesse required for expressive vocal performances, while controlling off-axis sound from near-by sources. The sonic character is detailed, full and vivid, with a warm and clear low end, natural and present midrange, and an open, crisp and detailed high end.
The supercardioid pattern provides excellent acoustic isolation. Maximum feedback rejection takes place when a stage monitor position is at either 225° or 125° offaxis to the element. This pattern also allows for a cleaner mix due to its rejection of off-axis sound. The multi-stage pop filter consists of two layers of dense foam separated by air, which attenuates wind velocity caused by breath and windblasts.

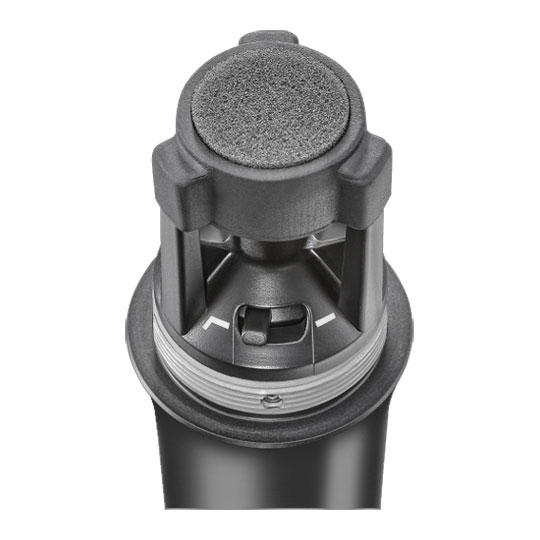

The high-pass filter has two positions (see drawing). The flat position delivers the full frequency band pass of the capsule. The high-pass position attenuates frequencies below 150 Hz. The built-in shock mount isolates the microphone element from vibration and guards it from handling noise.
133 dBDynamic Range
40 Hz - 20 kHzFrequency Response
200 ΩImpedance
Amazing Features
• Premium condenser element delivers a highlydetailed, full, and vivid sound
• Supercardioid polar pattern provides excellent acoustic isolation and feedback control
• Multi-stage pop filter minimizes breath blasts and plosives
• Selectable high-pass filter reduces undesirable low frequency content when engaged
• Vibration-absorbing internal shock mount minimizes handling noise
The Tech Spec
| Features | Specification | Element type | Self-biased condenser |
|---|---|
| Frequency response | 40 Hz-20 kHz |
| Polar pattern | Supercardioid |
| Sensitivity, open circuitvoltage, 1 kHz | 5.6 mV/Pascal (-45 dBV/Pa) |
| Clipping (max SPL) | 150 dB SPL (1% THD) |
| Self noise | 17 dB SPL "A" weighed (0 dB=20 μPa) |
| Dynamic range | 133 dB |
| Signal-to-Noise ratio | 77 dB |
| Output impedance | 200 ohms |
| Power requirements | 48 VDC phantom power |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 |
| Electrical contact | 3-pin, XLR-type |
| Finish | Black polyurethane paint |
| Materials | Zinc die cast, steel wire cloth grille |
| Dimensions | Length: 7.6 in. (192 mm) Diameter: 1.95 in. (49.5 mm) Shank: 0.96 in. (24.3 mm) |
| Net weight | 11.7 oz (332 g) |
| Shipping weight | 1 lb 5.1 oz (598 g) |
