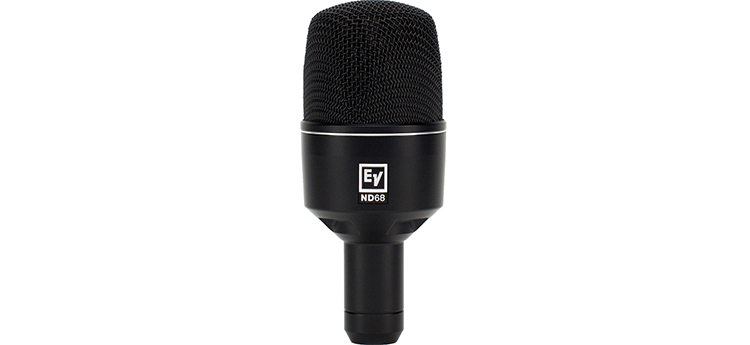

Electrovoice ND68 Bass Drum Microphone
Electrovoice - ND68 Dynamic Supercardioid Bass Drum Microphone
Dynamic Supercardioid Bass Drum Microphone
Electrovoice - ND68
the ideal solution For Capturing bass drums
Electrovoice's ND68 Dynamic Supercardioid Bass Drum Microphone from is a high-performance bass drum microphone expertly designed specifically for capturing kick drums and lower-frequency instruments. Ideal for studio recordings, live sound reinforcement, and rehearsals, the ND68 Bass Drum mic excels in delivering deep low-end audio and a rock solid midrange.
Featuring a large Mylar diaphragm, the ND68 ensures a detailed frequency response from 20 Hz to 11 kHz by combining a substantial surface area for tonal balance with low-mass material for precision. It can handle sound pressure levels up to 144 dB SPL, making it perfect for close-miking high-volume sources.
The microphone's supercardioid pattern provides excellent isolation from other nearby instruments, ensuring clarity and focus. Additionally, the humbucking coil minimizes AC hum and electromagnetic interference, while the durable Memraflex grille protects the microphone from rough handling. The ND68 package includes a gig bag, stand clip, and euro thread adapter, making it a complete solution for professional bass drum miking.
3-pin XLRConnector
SupercardioidPolar Pattern
20Hz - 11kHzFrequency Response
at A glance
• Large-Diaphragm Dynamic Capsule
• Low-Frequency Instrument Microphone
• Stand Clip and Euro-Thread Adapter
• Humbucking Coil Reduces Line Hum
• Super High SPL Handling
The Tech Spec
| Features | Specification | Form Factor | Bass drum mic |
|---|---|
| Element Type | Dynamic |
| Polar Pattern | Supercardioid |
| Analogue Output | 1x XLR 3-Pin Male |
| Impedance | 150 Ohms |
| Audio Frequency Response | 20 Hz to 11 kHz |
| Weight | 374g |
