Condenser Cardioid Instrument Microphone
Electro-Voice - ND66

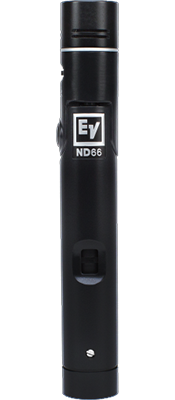

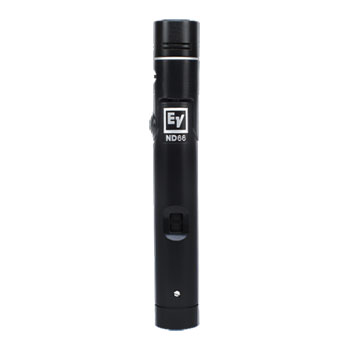

Premium small-diaphragm condenserThe Electro-Voice ND66 is a robust, high-performance small-diaphragm condenser instrument microphone. Its self-biased small-diaphragm condenser element is very responsive to the complex dynamic nature of percussive and stringed instruments, and delivers a clean, crisp and detailed sound. With the ND66’s exclusive locking rotating head, achieve ideal mic placement in virtually any situation just by pushing a button, rotating the head into position, then releasing the button to lock the head's position.
146 dBMax SPL
50 Hz – 20 kHzFrequency Response
200 ΩImpedance
Amazing Features
• Self-biased condenser element is vividly responsive to sound sources that need a mic which translates transient details very well
• Achieve ideal mic placement in any situation by pushing a button, pivoting the head into position and releasing the button to lock
• Selectable HPF frequencies are strategically chosen to eliminate bothersome low frequencies from the signal path
• Provides the necessary gain reduction to prevent the mic element from overloading
• Captures all details of percussive and stringed instruments
ND Series Microphones
The Tech Spec
| Features | Specification | Connector Type | 3-pin XLR |
|---|---|
| Height | 143mm (5.63") |
| Weight Net | 6.31oz (179g) |
| Shipping Weight | 16.4oz (465g) |
| Family | ND Series |
| Polar Pattern | Cardioid |
| Wired/Wireless | Wired |
| Mic Type | Instrument |
| Diameter (Max) | 21mm (0.83") |
| Element | Condenser |
| Impedance, Low-Z balanced | 200Ω |
| Open Circuit Voltage | 10mV/Pascal |
| Case Material | Die cast zinc |
| Finish | Black polyurethane paint |
| Power Requirement | 48 VDC Phantom |
| Audio Frequency Response | 50 – 20,000 |
| Maximum SPL | 146dB |
