Electro-Voice - EVOLVE 50 - Portable Column System (White)
Electro-Voice - EVOLVE 50-KW 1000W Portable Column System, Bluetooth Connectivity, QuickSmartDSP, Collapsible Design
Email me when the availability or price changes
Portable Powered Column System
Electro-Voice - EVOLVE 50
(White)

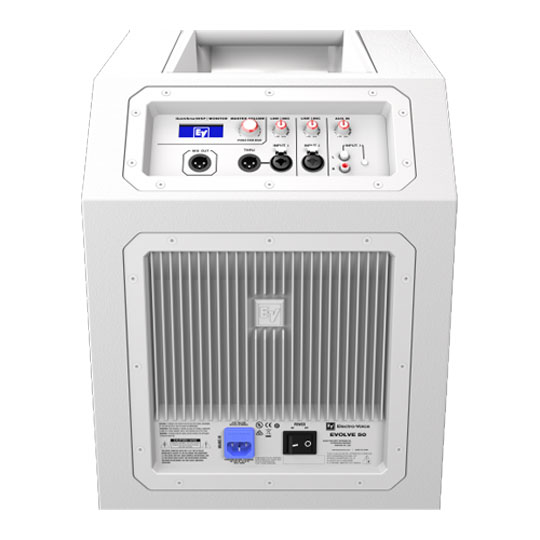

Superior Electro-Voice sound qualityThe Electro-Voice EVOLVE 50 Portable Column System is a three component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP. The system is made up of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12” subwoofer capable of a functional frequency output as low as 37 Hz. The bi-directional aluminum pole’s connection to the subwoofer is secured by a magnet, and the column array is held to the sub pole by gravit, whilst the signal is internally routed to the components.

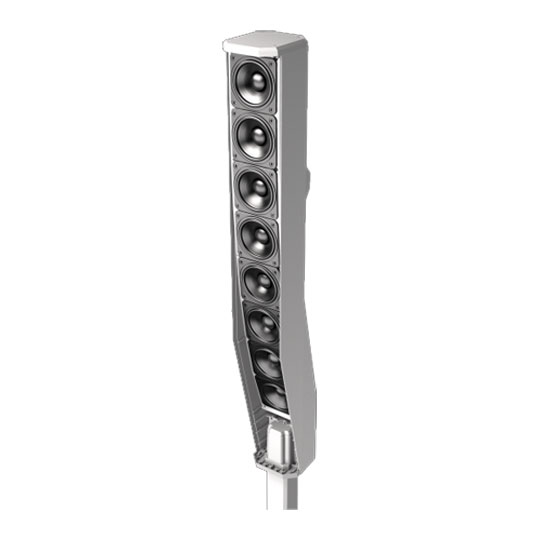

Eight 3.5" neodymium drivers in the column array together with the 12" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage, so you get suitable output for both sitting and standing audiences. The sub pole and column array also come prepackaged in a carrying bag for easy transport and storage.
127 dBMax SPL
43Hz - 20kHzFrequency Response
1000WTotal Power
at a glance
• 8 column-arrayed 3.5" neodymium drivers coupled with a brawny 12" subwoofer that delivers huge power
• Bluetooth connectivity comes built-in so you can configure, control, and monitor up to 6 systems simultaneously
• Made up of 3 components - a column array, subwoofer, and bi-directional aluminum pole
• Composite waveguides provide spacious coverage for the entire venue
• Collapsible design allows for compact storage and easy transport
Enhanced Performance

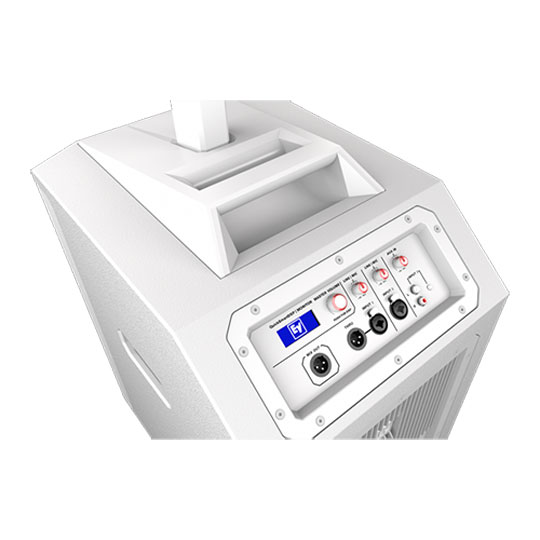

Easy SetupThe EVOLVE 50 features a processing engine which allows for easy setup using four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to provide optimal gain structure.
QuickSmart Mobile App
Wireless ControlThe new Electro-Voice QuickSmart Mobile application uses Bluetooth Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems at the same time.
High resolution Bluetooth audio streaming provides additional convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment.
Check Out This Video For The EVOLVE 50!
The Tech Spec
| Features | Specification | Type | Portable PA System |
|---|---|
| Speaker Drivers | 1 x 12" LF, 8 x 3.5" HF |
| EQ | QuickSmart DSP |
| Inputs | 2 x XLR-1/4" combo (mic/line), 1 x 1/8" (aux in), 1 x Dual RCA Stereo (aux in) |
| Outputs | 1 x XLR (mix out), 1 x XLR (thru) |
| Bluetooth | Yes |
| Power Amp | 1000W |
| Max SPL | 127 dB |
| Frequency Response | 43Hz - 20kHz |
| Enclosure Material | 15mm plywood, Composiite, Aluminum |
| Mounting Options | Floor with Column Speaker |
| Power Source | Standard AC IEC power supply |
| Dimensions | Width: 13.6" (sub), 4" (column) Height: 20.9" (sub), 32.5" (column) Depth: 18.5" (sub), 6.9" (column) |
| Weight | 57.75 lbs. |
