EV EVID C8.2LP Ceiling Speaker
Electrovoice - EVID C8.2LP Ceiling Speaker (Pair)
Email me when the availability or price changes
Finance this product
- From £17.58 / month (APR 16.9%) for 24 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
8" 2‑Way Coaxial Ceiling Loudspeaker
Electrovoice - EVID C8.2
(Pair)
Maximum fidelity and intelligibility

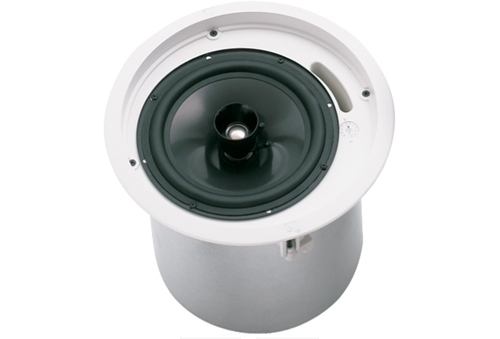

for high ceilingsThe Electro-Voice ® EVID C8.2LP loudspeaker system is a complete two-way ceiling loudspeaker in a low profile package. The package consists of a bezel assembly, grille, rear enclosure, 8-inch coax two-way loudspeaker and internal line-matching transformer. The loudspeaker features a waveguide coupled titanium coated dome tweeter. The EVID C8.2LP loudspeaker utilizes a 2 nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels.
The C8.2LP utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from zinc-plated, heavy gauge steel.
The low profile enclosure makes it easy to mount in tight spaces. A rear cover, with provisions for a junction box fitting, provides access to a 4-pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides pass through to additional speakers. A tile bridge is included for safe suspension of the C8.2LP ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.
The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion, high-efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.
110°Coverage
75 W Cont. / 300 W PeakPower Handling
50Hz - 20kHzFreq. Response
at a glance
• Ported enclosure for extended bass response
• Waveguide-coupled 1-inch titanium-coated tweeter
• Full-bandwidth overload protection
• Integrated transformer for 70 V, 100 V, or 8 Ω use
• Front-panel mode/wattage selector
• Safe, easy installation with included tile bridge and mounting ring
• White semi-gloss perforated grille
• Complete package, requires no additional accessories
Electro-Voice EVID
The Tech Spec
| Features | Specification | Freq. Response (-10 dB) | 50 Hz - 20 kHz |
|---|---|
| Coverage (Conical) | 110° |
| Power Handling | 75 W Cont. / 300 W Peak |
| Sensitivity (SPL 1W/1m) | 91 dB |
| Max Calculated SPL | 110 dB Cont. / 116 dB Peak |
| Impedance | 8 Ohms nominal (transformer bypass) |
| Network | Network and transducers protected, 12 dB/oct 2.6 kHz |
| LF Transducer | 8 in. (200 mm) Polypropylene cone |
| HF Transducer | 1 in (25 mm) Ti Mylar laminate |
| Transformer Taps | 70V: 1.88, 3.75, 7.5, 15 or 30w 100V: 3.75, 7.5, 15 or 30W Bypass: 8 Ohms |
| Connectors | C8.2: Phoenix type removable, with screw terminals and "loop-thru", accepts 12 ga wire C8.2D: Fire-safety rated input block, 3 terminal barrier strip accepts 12 ga wire |
| Enclosure Material | Baffle- UL 94V-O rated ABS Backcan-Zinc plated steel |
| Grille | Perforated powder coated steel with safety tether |
| Support Hardware | Tile bridge, backing plate support, cutout template, paint shield |
| Dim (H x Dia.) | 10.0" x 10.6 (255mm x 270mm) |
| Cutout Size | 10.75" (272mm) |
| Net Weight (each) | 11.0 lbs (5.0 kg) |
| Shipping Weight (pair) | 24.0 lbs (11.0 kg) |
| Safety Agency Ratings | UL 1480 Safe for use in air handling spaces per UL 2043. |
