Electrovoice - ELX200-18SP-EU 18"" powered subwoofer,, black
Electrovoice - ELX200-18SP-EU 18"" powered subwoofer, , black
- SCANPROTECT Protect against installation damage for 28 days. More info

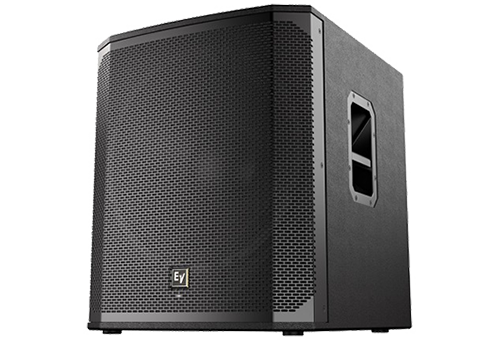

18" Powered Subwoofer
Electrovoice - ELX200-18SP
1200W Powered Subwoofer
Electrovoice's ELX200-18SP features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 132 dB SPL utilizing transducers designed and engineered by EV (18-inch EVS-18L woofer).
Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall
settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole polemount plate, and two-handle design for easy lifting.
The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth is available in select countries.
130 dB Max SPL
40Hz - 145HzFrequency Range
1200WTotal Power
at a glance
• EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions.
• QuickSmartDSP features best-in-class processing. Easy setup via three presets, sub/top system-match, five user-programmable presets, visual monitoring of limiter status, input level control and meters.
• Ideal for portable and installed applications. Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.
suitability
• For Live Stages, DJ Setups, Mobile Rigs
Meet Electro-Voice's ELX200 Portable Loudspeaker Series!
The Tech Spec
| Features | Specification | Configuration | Active Subwoofer |
|---|---|
| Total Power Capacity | 1200 W |
| LF Driver | 1 x 18" / 45.72 cm Woofer |
| Frequency Range | 40 Hz to 145 Hz -10 dB |
| Frequency Response | 47 Hz to 105 Hz -3 dB |
| Maximum SPL | 130 dB |
| Audio I/O | 2 x Combo XLR-1/4" TRS Input 2 x XLR 3-Pin Output |
| Filters | Low-Pass: 80 Hz to 150 Hz |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Current Consumption | 1.8 A |
| Mounting | 1 x M20 (Top) |
| Handles | 1 x Each Side |
| Construction Material | Metal Grille, Plywood |
| Dimensions | 23.3 x 20 x 22.5" / 59.2 x 50.8 x 57.1 cm |
| Weight | 64 lb / 29 kg |
