Electrovoice - ELX200-12SP 12"" Powered Subwoofer (Black)
Electrovoice - ELX200-12SP 12"" Powered Subwoofer, EU Cord, Black
- SCANPROTECT Protect against installation damage for 28 days. More info
Frequently Bought Together
12" Powered Subwoofer
Electrovoice - ELX200-12SP
1200W Powered Subwoofer
Electrovoice's ELX200-12SP features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 129 dB SPL utilizing transducers designed and engineered by EV (12-inch EVS-12L woofer).
Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall
settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole polemount plate, and two-handle design for easy lifting.
The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth is available in select countries.
129 dB Max SPL
41Hz - 165HzFrequency Range
1200WTotal Power
at a glance
• EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions.
• QuickSmartDSP features best-in-class processing. Easy setup via three presets, sub/top system-match, five user-programmable presets, visual monitoring of limiter status, input level control and meters.
• Ideal for portable and installed applications. Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.
suitability
• For Live Stages, DJ Setups, Mobile Rigs
Meet Electro-Voice's ELX200 Portable Loudspeaker Series!
The Tech Spec
| Features | Specification | Power rating | 1200 W |
|---|---|
| Frequency response (-3 dB) | 49 Hz - 135 Hz |
| Frequency range (-10 dB) | 41 Hz - 165 Hz |
| Maximum SPL | 129 dB |
| LF transducer | EVS-12L 300 mm (12 in) |
| Low-Pass frequency | Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz |

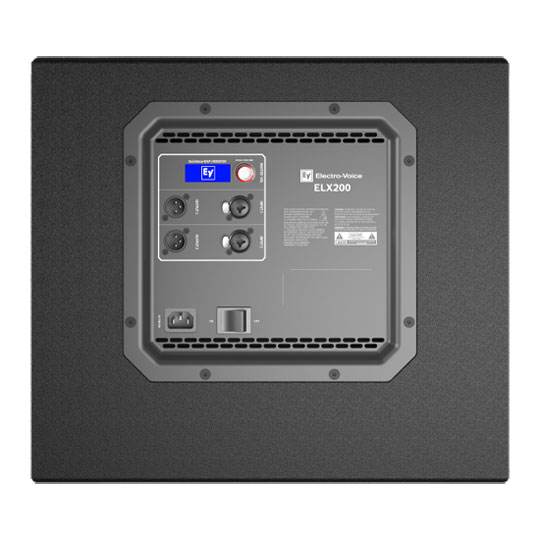

| Connectors | 2 x XLR/TRS combo jacks, 2 x XLR link outputs |
| Enclosure | 15 mm plywood with EVCoat |
| Grille | 18 AWG steel with powdercoat |
| Colour | Black or White |
| Dimensions (H x W x D) | 397 mm x 445 mm x 457 mm 16.7 in x 17.6 in x 18.0 in |
| Power consumption | 100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A |
| Net weight | 19.1 kg (42.2 lb) |
| Shipping weight | 22.3 kg (49.2 lb) |
