Electrovoice - ELX200-12P 12" & 15" Sub Bundle
Electrovoice - ELX200-12P-EU, EKX-15SP 15" Sub, Stands & Cables
Black Friday Pro Audio PA Offer!

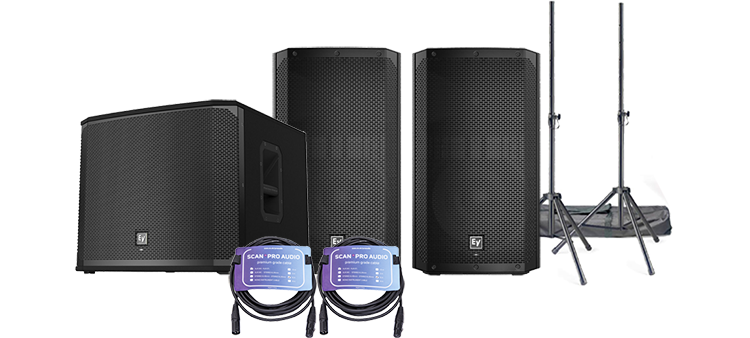

Electrovoice - ELX200-12P (Pair), EKX-15SP 15" Powered Subwoofer
Stands & Cables
black friday exclusive offerThe team at Scan Pro Audio are proud to offer this black friday exclusive offer comprised of the Electrovoice - ELX200-12P-EU - 12" 2-way Powered Speakers, Electrovoice - EKX-15SP 15" Powered Subwoofer, Stagg SPSQ10 Speaker Stands and a our very own Scan Pro Audio XLR F to XLR M cables.
what's included
• Electrovoice - ELX200-12P (Pair)
• Electrovoice - EKX-15SP 15" Powered Subwoofer
• Stagg SPSQ10 Speaker Stands & Carry Bag

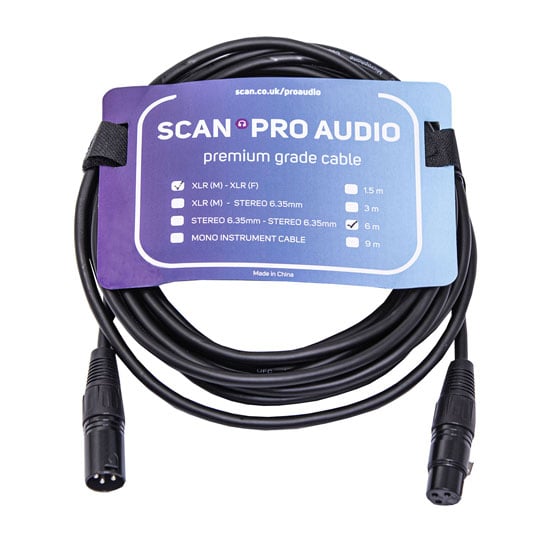

• Scan Pro Audio XLR F to XLR M cable - 6m (Pair)
12" Powered Subwoofer
Electrovoice - ELX200-12P
1200W Powered Subwoofer
Electrovoice's ELX200-12P features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 130 dB SPL utilizing transducers designed and engineered by EV (12-inch EVS-12M woofer coupled with a DH-1L 1-inch titanium compression driver).
Powered full-range models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole polemount plate, and two-handle design for easy lifting.
The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth is available in select countries.
130 dB Max SPL
57 Hz - 16 kHzFrequency Range
1200WTotal Power
at a glance
• EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions.
• QuickSmartDSP features best-in-class processing. Easy setup via three presets, sub/top system-match, five user-programmable presets, visual monitoring of limiter status, input level control and meters.
• Ideal for portable and installed applications. Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.
suitability
• For Live Stages, DJ Setups, Mobile Rigs
Meet Electro-Voice's ELX200 Portable Loudspeaker Series!
15" Powered Subwfooer

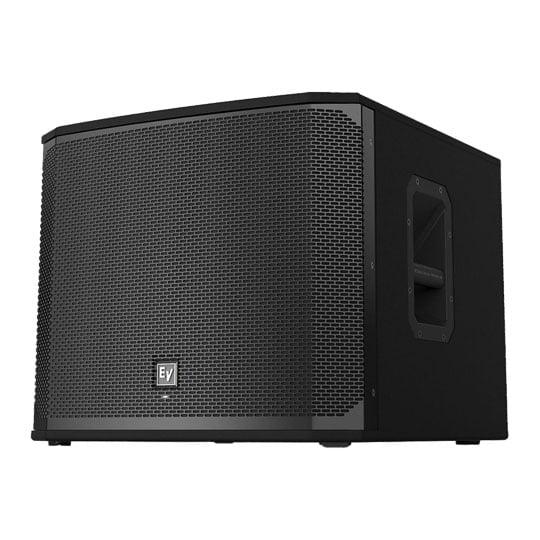

Electrovoice - EKX-15SP
integrated 'QuickSmartDSP' technologyElectrovoice’s EKX-15SP is a powered subwoofer perfectly suited for live music settings and DJ applications. Boasting a powerful 1300W Class D amplifier, the EKX-15SP is capable of delivering up to 133dB Max SPL, utilising the EV transducer for this express purpose.
Through the use of a single knob user interface and easy-to-read LCD menu screen, it’s easily possible to tweak the integrated QuickSmartDSP processing, whilst the Cardioid Control Technology enables the user to steer signal towards the audience whilst at the same time delivering up to 35dB of sound reduction on stage.
The EKX-15SP also features an intelligent thermal management system which automatically adjusts the variable-speed fan via the means on the built-in sensors, and thanks to the twin XLR outputs, it’s easy to integrate the EKX-15SP with further loudspeakers and subs.
133 dBMax SPL
DSP ProcessingBuilt-In
1300WClass D Power Amp
at a glance
• Cardioid Control Technology allows output to be steered towards the audience with up to 35 dB reduction on stage when multiple subs are deployed.
• Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
• Two XLR outputs for easy system expansion to additional loudspeakers or subwoofers. Large slot ports for low distortion and excellent bass extension.
suitability
• Ideally suited to live gigs, clubs & DJ Setups
ELX200-12P
The Tech Spec
| Features | Specification | Power rating | 1200 W |
|---|---|
| Frequency response (-3 dB) | 57 Hz - 16 kHz |
| Frequency range (-10 dB) | 51 Hz - 20 kHz |
| Maximum SPL | 130 dB |
| LF transducer | EVS-12M 300 mm (12 in) |
| HF transducer | DH-1L 1-inch titanium compression driver |
| Crossover frequency | 1700 Hz |
| Connectors | (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR |
| Enclosure | Polypropylene |
| Grille | 18 AWG steel with powdercoat |
| Suspension | (3) M10 suspension points |
| Colour | Black or White |
| Dimensions (H x W x D) | 629 mm x 363 mm x 344 mm (24.8 in x 14.3 in x 13.6 in) |
| Net weight | 15.6 kg (34.4 lb) |
| Shipping weight | 17.7 kg (39.1 lb) |
| Power consumption | 100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A³ |
Electrovoice - EKX-15SP
The Tech Spec
| Features | Specification | Configuration | Active Subwoofer |
|---|---|
| Total Power Capacity | 1300 W |
| LF Driver | 1 x 15" / 38.1 cm Woofer |
| Frequency Response | 40 Hz to 180 Hz -10 dB 45 Hz to 150 Hz -3 dB (Half-Space) |
| Maximum SPL | 133 dB (Peak) |
| Audio I/O | 1 x Combo XLR-1/4" TRS Input 1 x XLR 3-Pin Thru/Output |
| Filters | Low-Pass: 80 Hz to 150 Hz |
| Current Consumption | 1.8 A (1/8 Power) |
| Construction Material | Metal Grille, Plywood |
| Dimensions | 17.9 x 20.9 x 21.7" / 45.5 x 53 x 55.1 cm |
| Weight | 57.8 lb / 26.2 kg |
