Scan code: LN125269 Manufacturer code: F.01U.326.042

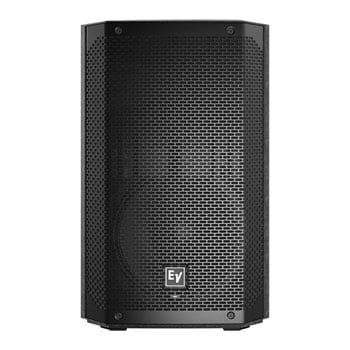

Electrovoice - ELX200-10P-EU - 10" 2-way Powered Speaker

Electrovoice - ELX200-10P-EU - 10" 2-Way Powered Speaker - Black

Thumbnail 1 : Electrovoice - ELX200-10P-EU - 10" 2-way Powered Speaker Thumbnail 2 : Electrovoice - ELX200-10P-EU - 10" 2-way Powered Speaker Thumbnail 3 : Electrovoice - ELX200-10P-EU - 10" 2-way Powered Speaker
Scan code: LN125269 Manufacturer code: F.01U.326.042
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
£589.00
Get it Tomorrow, 25 MayIn stock
FREE DELIVERY ON YOUR ENTIRE BASKET
From £20.63 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £53.37
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £589.00
Total inc. interest: £640.35
Monthly Payment: £28.76
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £589.00
Total inc. interest: £690.25
Monthly Payment: £20.63
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £589.00
Total inc. interest: £742.47
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £15.65 / month (APR 19.9%)
Delivery Options
  • By DPD On 28th May to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

10" Powered Loudspeaker
Electrovoice - ELX200-10P

Electrovoice - ELX200-10P

1200w powered speaker EV's ELX200-10P features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 130 dB SPL utilizing transducers designed and engineered by EV (10-inch EVS-10M woofer coupled with a DH-1L 1-inch titanium compression driver). Powered full-range models allow easy setup via four presets (Music, Live, Speech, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

ELX200 powered models are ideal for portable and installed applications, with lightweight and durable polypropylene enclosures, three M10 threaded mounting points and the proven ZLX handle design for easy lifting.

The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth is available in select countries.

130 dBMax SPL

QuickSmartDSPBuilt-In

1200WTotal Power

at a glance • EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously
• EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading
• Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting

suitabililty • For Live Stages, DJ Setups, Mobile Rigs

Meet Electro-Voice's ELX200 Portable Loudspeaker Series!

The Tech Spec

Features Specification
Configuration Active 2-Way
Total Power Capacity 1200 W
Amplifier Class Class-D
HF Driver 1 x 1" / 51 mm Horn-Loaded Titanium Compression Driver
LF Driver 1 x 10" / 25.4 cm Woofer
Frequency Range 53 Hz to 20 kHz -10 dB
Frequency Response 59 Hz to 18 kHz -3 dB
Maximum SPL 130 dB
Coverage Angle 90° H x 60° V

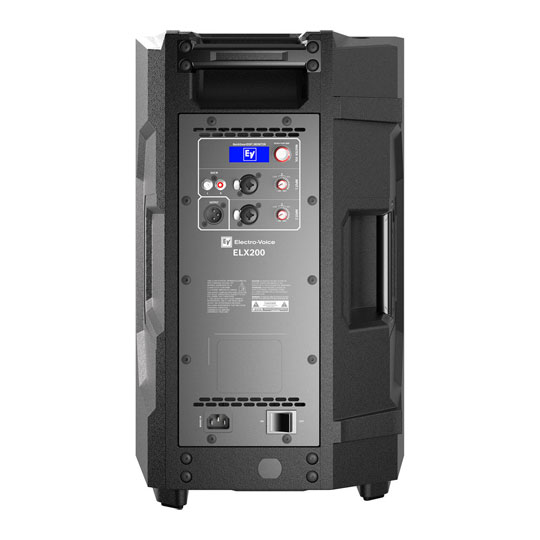

Audio I/O 2 x Combo XLR-1/4" TRS Input 1 x Stereo RCA Input 1 x XLR 3-Pin Output
Crossover 1.8 kHz
EQ Yes
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Current Consumption 1.8 A
Mounting 3 x M10
Construction Material Metal Grille, Polypropylene
Dimensions 20.8 x 13 x 12.8" / 52.8 x 33 x 32.5 cm
Weight 29.9 lb / 13.6 kg
Specifications
Number of Input Channels 2
Frequency Response -3dB 59 Hz -18 kHz dB
Frequency Response -10dB 53 Hz - 20 kH dB
Max SPL 130 dB
Power rating (Peak) 1200 Watts (Peak)
Power rating RMS 0 Watts (RMS)
Speaker size 10 Inches
Enclosure Type Composite
Dimensions 531 x 330 x 319
Net weight 13.5 KG
Shipping weight 15.6 KG
Connectivity
  • 1 x RCA Phono
  • 2 x XLR / Jack Combi
Connectivity (Output) 1 x XLR
Colour Black
Bluetooth Yes
Battery Powered No
Wifi No
App control Yes
Rigging Points Yes
Pole Mountable Yes
Integrated Bracket No
Sub Woofer No
Built in DSP Yes
Front of House Yes
Floor Monitor Yes
Additional Information
Scan Code LN125269
Model Number F.01U.326.042
GTIN 800549826723
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
