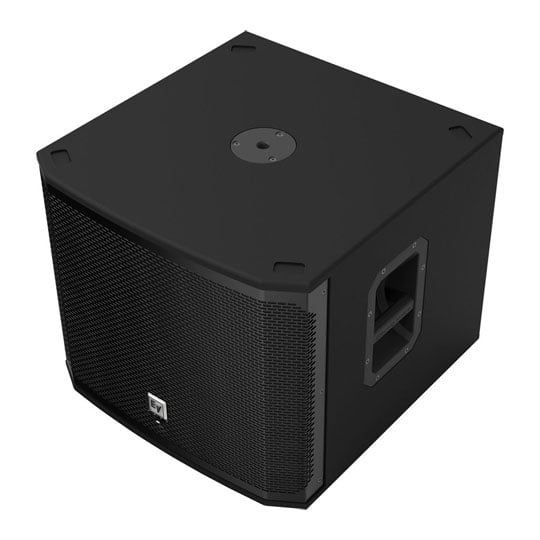

Electrovoice - EKX-18SP Powered 18" Subwoofer

Electrovoice - EKX-18SP Powered 18" Subwoofer

Thumbnail 1 : Electrovoice - EKX-18SP Powered 18" Subwoofer Thumbnail 2 : Electrovoice - EKX-18SP Powered 18" Subwoofer Thumbnail 3 : Electrovoice - EKX-18SP Powered 18" Subwoofer Thumbnail 4 : Electrovoice - EKX-18SP Powered 18" Subwoofer
Scan code: LN125274 Manufacturer code: F.01U.303.390
£991.30Item overdue since 25 April 2022
Pre order
FREE DELIVERY ON YOUR ENTIRE BASKET
From £30.05 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £85.21
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £991.30
Total inc. interest: £1,022.42
Monthly Payment: £43.83
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £991.30
Total inc. interest: £1,051.69
Monthly Payment: £30.05
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £991.30
Total inc. interest: £1,081.57
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £24.76 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

18" Powered Subwfooer
Electrovoice - EKX-18SP

Electrovoice - EKX-18SP

integrated 'QuickSmartDSP' technologyElectrovoice’s EKX-15SP is a powered subwoofer perfectly suited for live music settings and DJ applications. Boasting a powerful 1300W Class D amplifier, the EKX-15SP is capable of delivering up to 133dB Max SPL, utilising the EV transducer for this express purpose.

Through the use of a single knob user interface and easy-to-read LCD menu screen, it’s easily possible to tweak the integrated QuickSmartDSP processing, whilst the Cardioid Control Technology enables the user to steer signal towards the audience whilst at the same time delivering up to 35dB of sound reduction on stage.

The EKX-15SP also features an intelligent thermal management system which automatically adjusts the variable-speed fan via the means on the built-in sensors, and thanks to the twin XLR outputs, it’s easy to integrate the EKX-15SP with further loudspeakers and subs.

134 dBMax SPL

DSP ProcessingBuilt-In

1300WClass D Power Amp

at a glance • Cardioid Control Technology allows output to be steered towards the audience with up to 35 dB reduction on stage when multiple subs are deployed.
• Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
• Two XLR outputs for easy system expansion to additional loudspeakers or subwoofers. Large slot ports for low distortion and excellent bass extension.

suitability • Ideally suited to live gigs, clubs & DJ Setups

Electro-Voice EKX Loudspeaker - An Overview

The EKX series is the newest member of the Electro Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.

The EKX series features eight models (four powered and four passive), including 12" and 15" two-way models and 15" and 18" subwoofers. EKX is positioned above the ZLX and ELX series and below the ETX series.

The Tech Spec

Features Specification
Configuration Active Subwoofer
Total Power Capacity 1300 W
LF Driver 1 x 18" / 45.7 cm Woofer
Frequency Response 35 Hz to 180 Hz -10 dB
40 Hz to 150 Hz -3 dB (Half-Space)
Maximum SPL 134 dB (Peak)
Audio I/O 2 x Combo XLR-1/4" TRS Input
2 x XLR 3-Pin Thru/Output
Filters Low-Pass: 80 Hz to 150 Hz
Current Consumption 1.8 A (1/8 Power)
Construction Material Metal Grille, Plywood
Dimensions 20.5 x 23.9 x 24.1" / 52 x 60.6 x 61.2 cm
Weight 72.3 lb / 32.8 kg
Specifications
Number of Speakers N/A
Number of Input Channels N/A
Frequency Response -3dB N/A
Frequency Response -10dB N/A
Coverage (Dispersion H x V ) N/A
HF wattage (RMS)
LF Wattage (RMS) N/A
Maximun SPL N/A
Power rating (Peak) N/A
Power rating RMS N/A
Speaker size N/A
Enclosure Type N/A
Dimensions
Net weight
Shipping weight N/A
Connections N/A
Colour
Bluetooth No
Battery Powered No
Wifi No
App control No
Rigging Points No
Pole Mountable No
Integrated Bracket No
Sub Woofer No
Built in DSP No
Front of House No
Floor Monitor No
